Component Parts Location

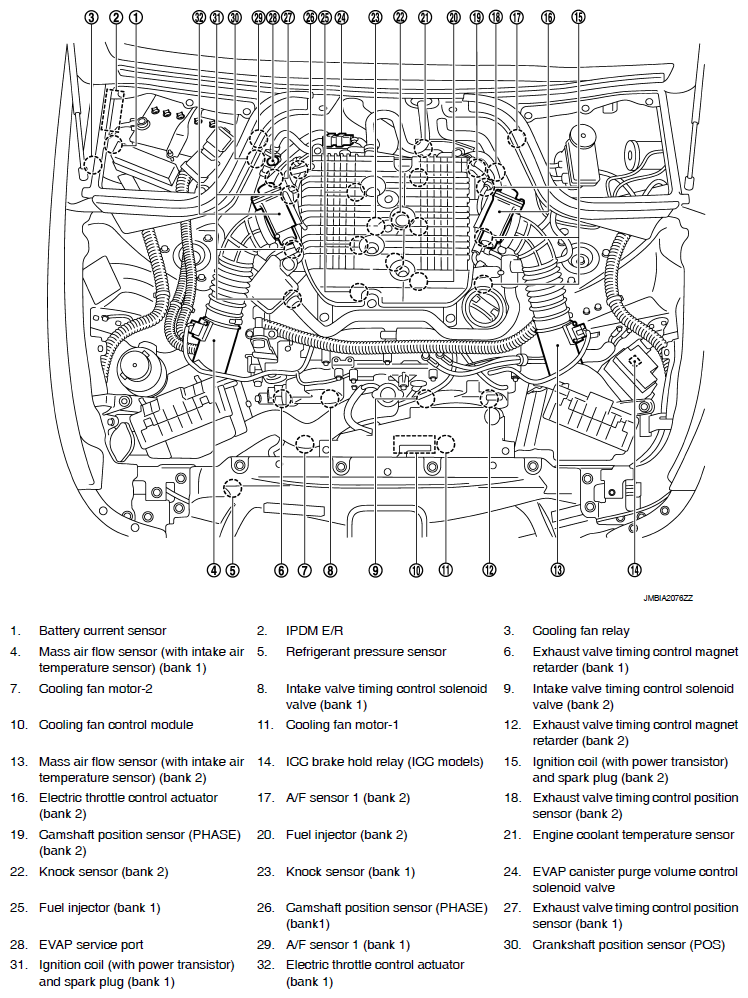

Fig 1: Identifying Automatic Speed Control Device Components Location (1 Of 20)

G07164843

Courtesy of NISSAN MOTOR CO., U.S.A.

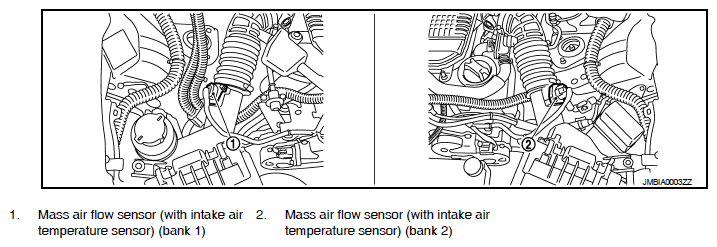

Fig 2: Identifying Automatic Speed Control Device Components Location (2 Of 20)

G07164844

Courtesy of NISSAN MOTOR CO., U.S.A.

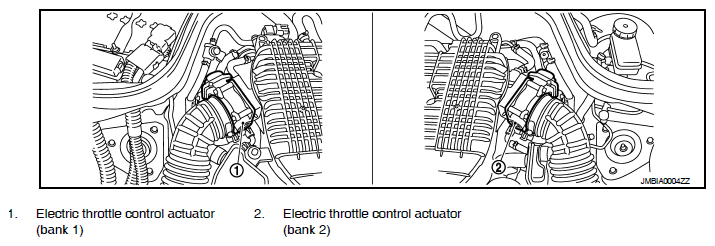

Fig 3: Identifying Automatic Speed Control Device Components Location (3 Of 20)

G07164845

Courtesy of NISSAN MOTOR CO., U.S.A.

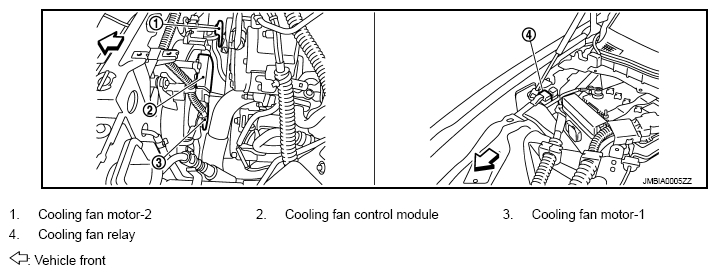

Fig 4: Identifying Automatic Speed Control Device Components Location (4 Of 20)

G07164846

Courtesy of NISSAN MOTOR CO., U.S.A.

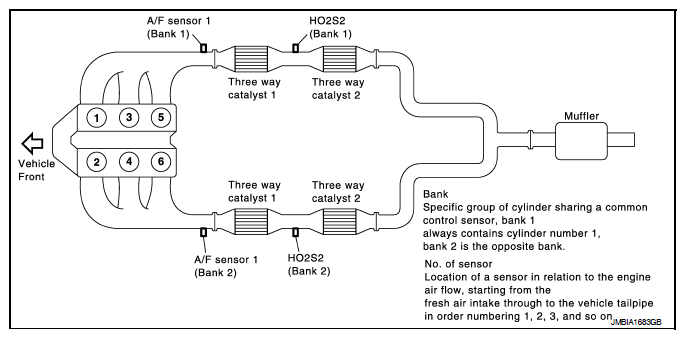

Fig 5: Identifying Automatic Speed Control Device Components Location (5 Of 20)

G07164847

Courtesy of NISSAN MOTOR CO., U.S.A.

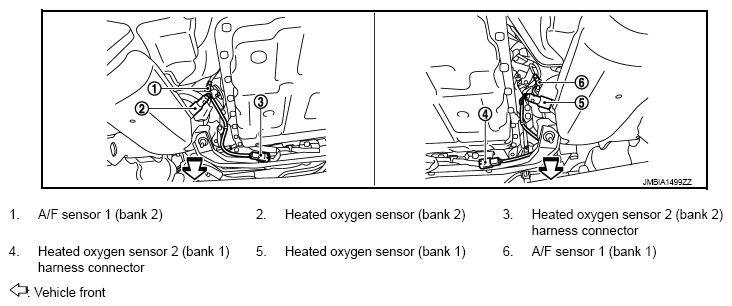

Fig 6: Identifying Automatic Speed Control Device Components Location (6 Of 20)

G07164848

Courtesy of NISSAN MOTOR CO., U.S.A.

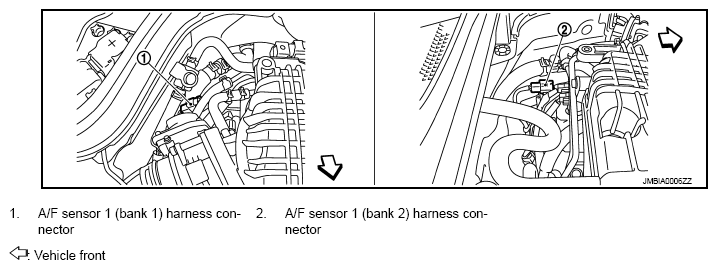

Fig 7: Identifying Automatic Speed Control Device Components Location (7 Of 20)

G07164849

Courtesy of NISSAN MOTOR CO., U.S.A.

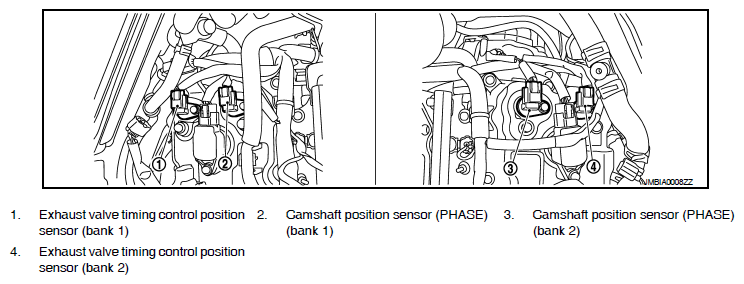

Fig 8: Identifying Automatic Speed Control Device Components Location (8 Of 20)

G07164850

Courtesy of NISSAN MOTOR CO., U.S.A.

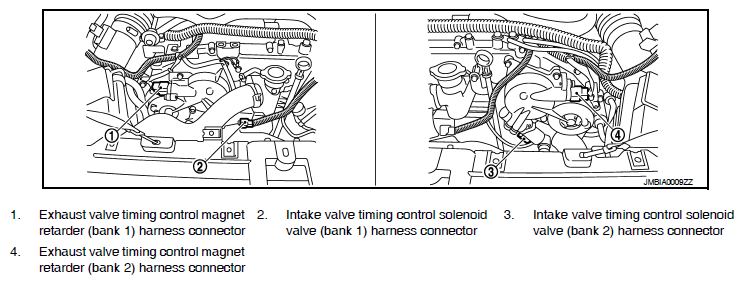

Fig 9: Identifying Automatic Speed Control Device Components Location (9 Of 20)

G07164851

Courtesy of NISSAN MOTOR CO., U.S.A.

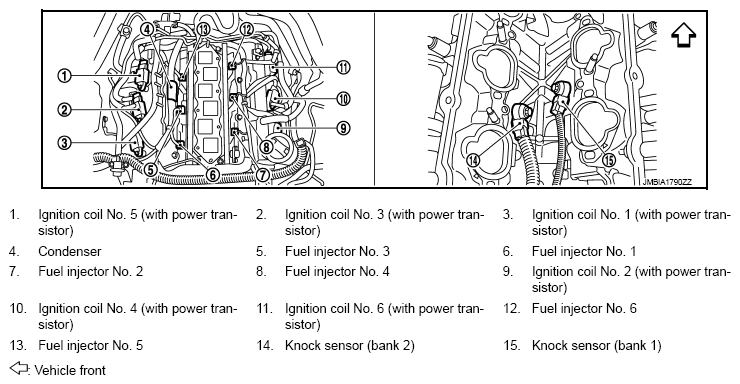

Fig 10: Identifying Automatic Speed Control Device Components Location (10 Of 20)

G07164852

Courtesy of NISSAN MOTOR CO., U.S.A.

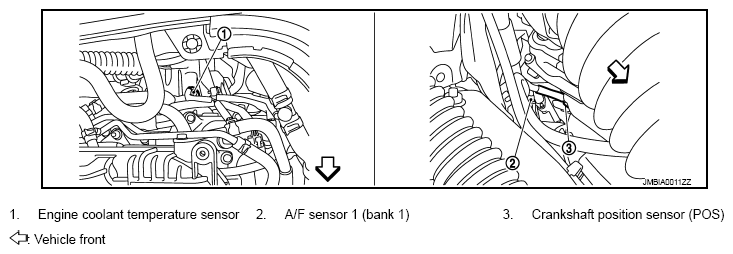

Fig 11: Identifying Automatic Speed Control Device Components Location (11 Of 20)

G07164853

Courtesy of NISSAN MOTOR CO., U.S.A.

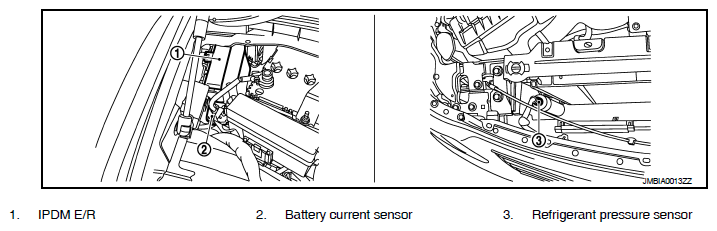

Fig 12: Identifying Automatic Speed Control Device Components Location (12 Of 20)

G07164854

Courtesy of NISSAN MOTOR CO., U.S.A.

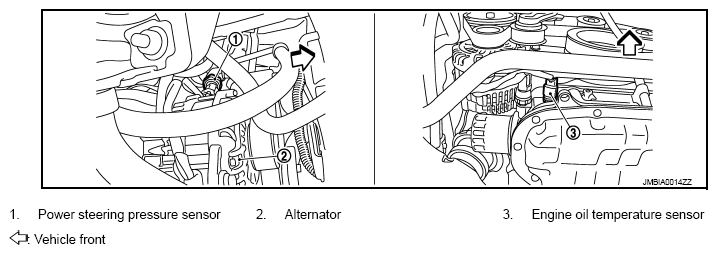

Fig 13: Identifying Automatic Speed Control Device Components Location (13 Of 20)

G07164855

Courtesy of NISSAN MOTOR CO., U.S.A.

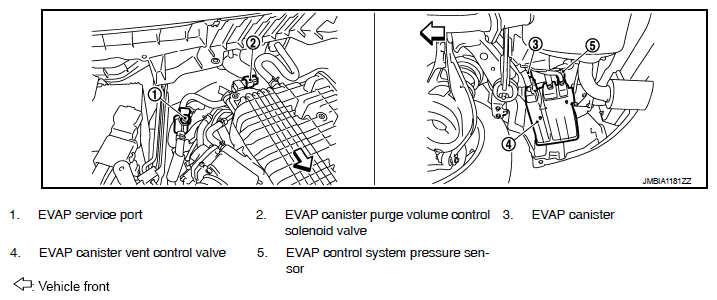

Fig 14: Identifying Automatic Speed Control Device Components Location (14 Of 20)

G07164856

Courtesy of NISSAN MOTOR CO., U.S.A.

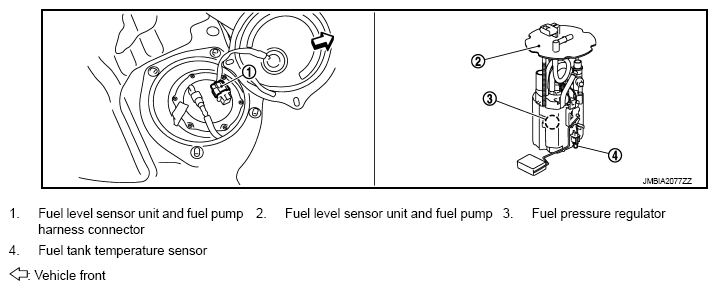

Fig 15: Identifying Automatic Speed Control Device Components Location (15 Of 20)

G07164857

Courtesy of NISSAN MOTOR CO., U.S.A.

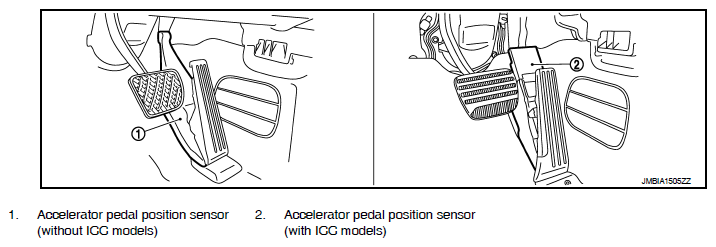

Fig 16: Identifying Automatic Speed Control Device Components Location (16 Of 20)

G07164858

Courtesy of NISSAN MOTOR CO., U.S.A.

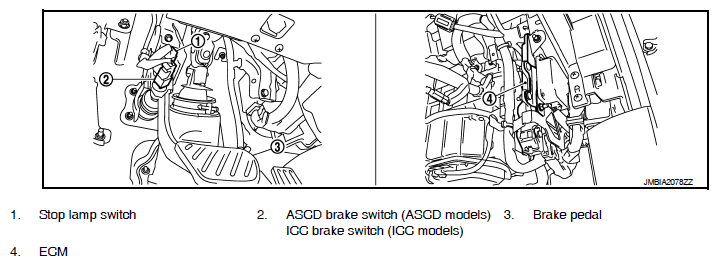

Fig 17: Identifying Automatic Speed Control Device Components Location (17 Of 20)

G07164859

Courtesy of NISSAN MOTOR CO., U.S.A.

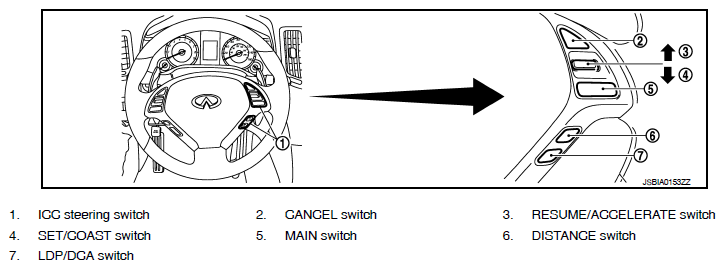

Fig 18: Identifying Automatic Speed Control Device Components Location (18 Of 20)

G07164860

Courtesy of NISSAN MOTOR CO., U.S.A.

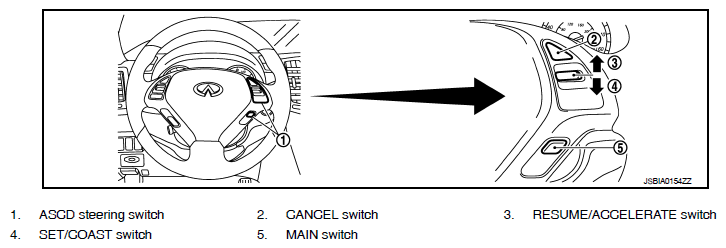

Fig 19: Identifying Automatic Speed Control Device Components Location (19 Of 20)

G07164861

Courtesy of NISSAN MOTOR CO., U.S.A.

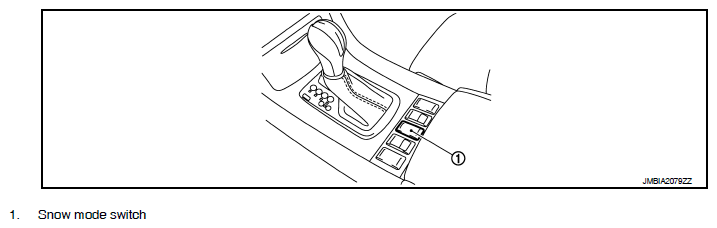

Fig 20: Identifying Automatic Speed Control Device Components Location (20 Of 20)

G07164862

Courtesy of NISSAN MOTOR CO., U.S.A.
