Component Parts Location

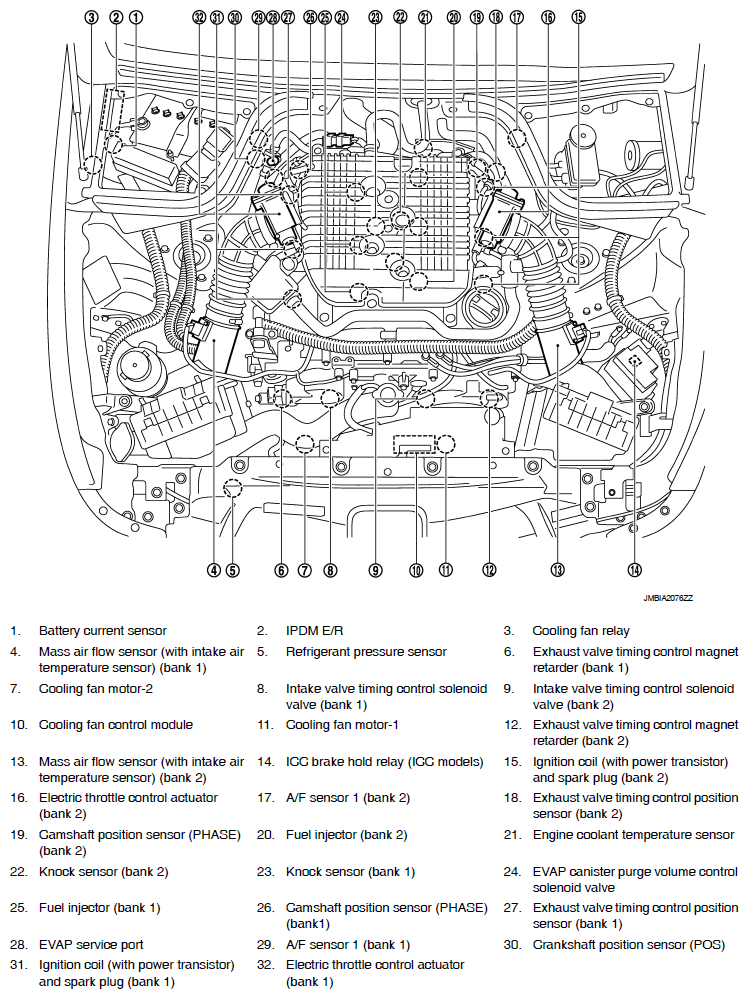

Fig 1: Identifying Cooling Fan Control Components Location (1 Of 20)

G07164864

Courtesy of NISSAN MOTOR CO., U.S.A.

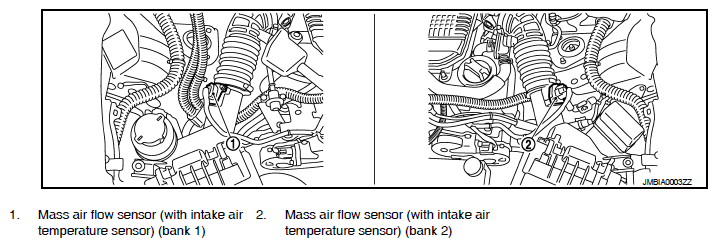

Fig 2: Identifying Cooling Fan Control Components Location (2 Of 20)

G07164865

Courtesy of NISSAN MOTOR CO., U.S.A.

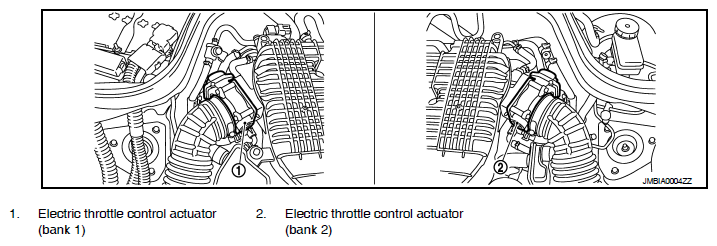

Fig 3: Identifying Cooling Fan Control Components Location (3 Of 20)

G07164866

Courtesy of NISSAN MOTOR CO., U.S.A.

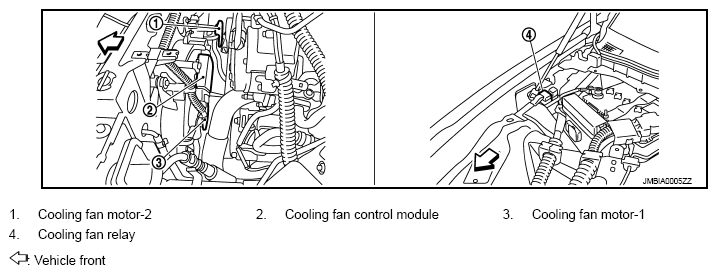

Fig 4: Identifying Cooling Fan Control Components Location (4 Of 20)

G07164867

Courtesy of NISSAN MOTOR CO., U.S.A.

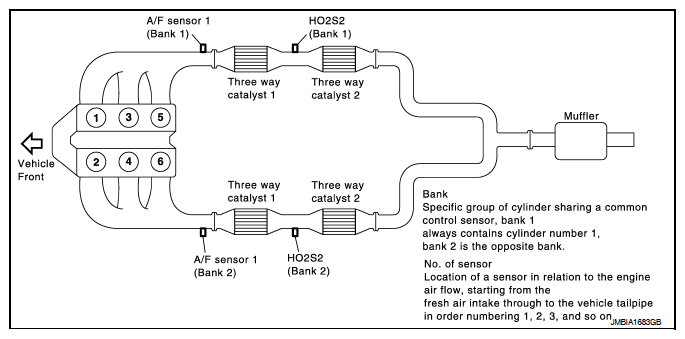

Fig 5: Identifying Cooling Fan Control Components Location (5 Of 20)

G07164868

Courtesy of NISSAN MOTOR CO., U.S.A.

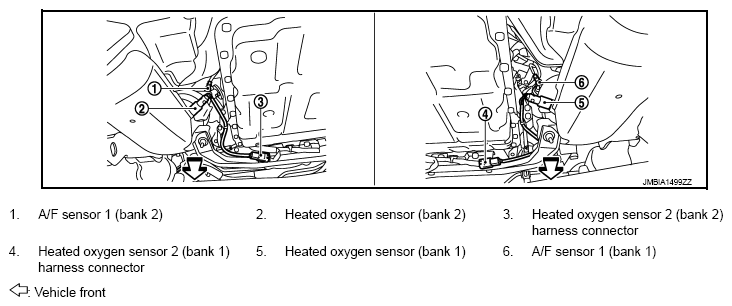

Fig 6: Identifying Cooling Fan Control Components Location (6 Of 20)

G07164869

Courtesy of NISSAN MOTOR CO., U.S.A.

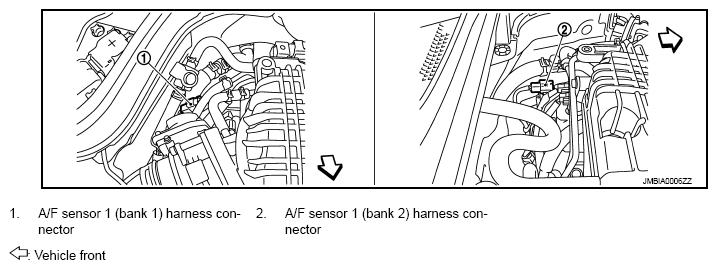

Fig 7: Identifying Cooling Fan Control Components Location (7 Of 20)

G07164870

Courtesy of NISSAN MOTOR CO., U.S.A.

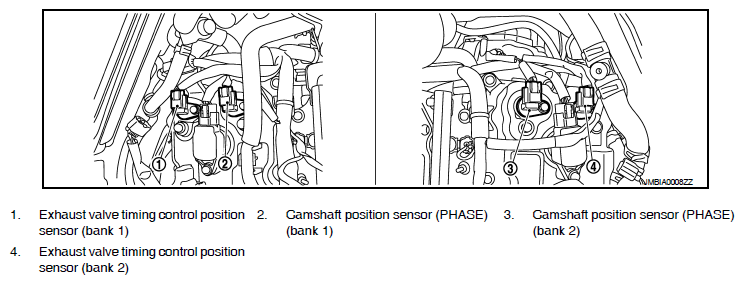

Fig 8: Identifying Cooling Fan Control Components Location (8 Of 20)

G07164871

Courtesy of NISSAN MOTOR CO., U.S.A.

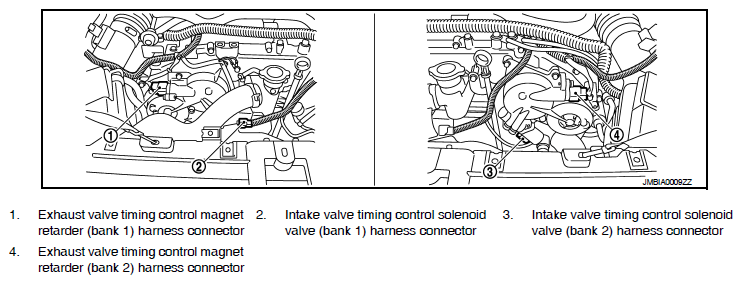

Fig 9: Identifying Cooling Fan Control Components Location (9 Of 20)

G07164872

Courtesy of NISSAN MOTOR CO., U.S.A.

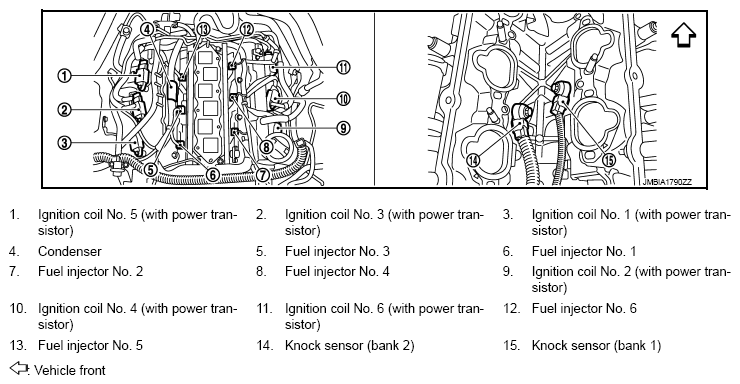

Fig 10: Identifying Cooling Fan Control Components Location (10 Of 20)

G07164873

Courtesy of NISSAN MOTOR CO., U.S.A.

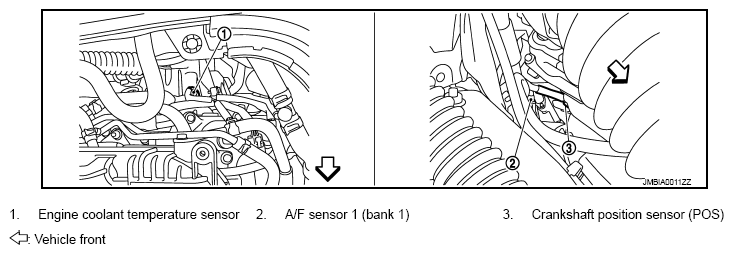

Fig 11: Identifying Cooling Fan Control Components Location (11 Of 20)

G07164874

Courtesy of NISSAN MOTOR CO., U.S.A.

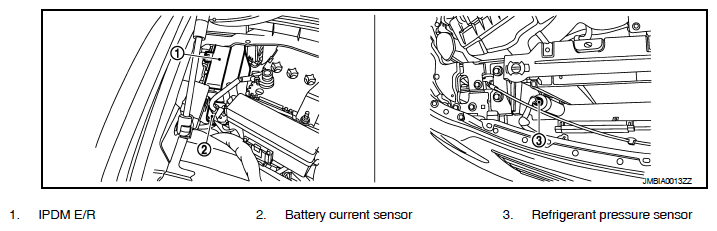

Fig 12: Identifying Cooling Fan Control Components Location (12 Of 20)

G07164875

Courtesy of NISSAN MOTOR CO., U.S.A.

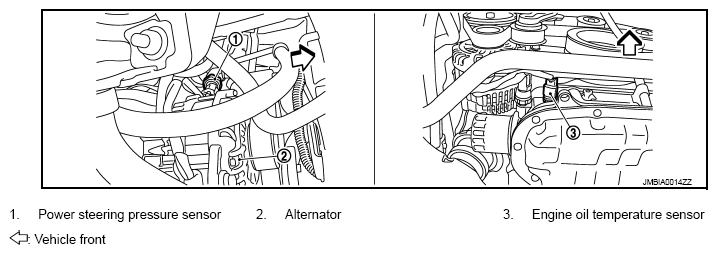

Fig 13: Identifying Cooling Fan Control Components Location (13 Of 20)

G07164876

Courtesy of NISSAN MOTOR CO., U.S.A.

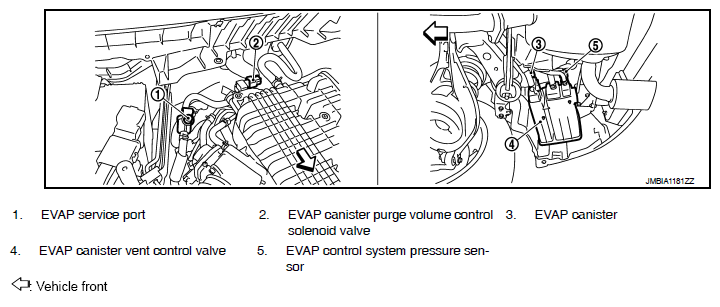

Fig 14: Identifying Cooling Fan Control Components Location (14 Of 20)

G07164877

Courtesy of NISSAN MOTOR CO., U.S.A.

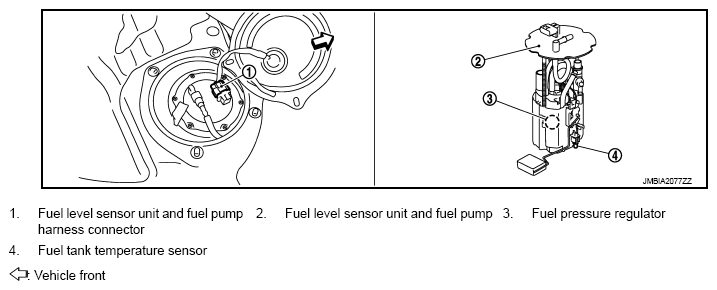

Fig 15: Identifying Cooling Fan Control Components Location (15 Of 20)

G07164878

Courtesy of NISSAN MOTOR CO., U.S.A.

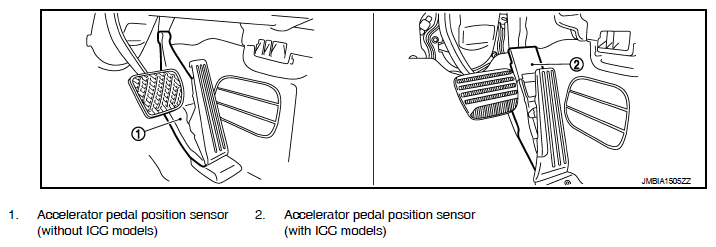

Fig 16: Identifying Cooling Fan Control Components Location (16 Of 20)

G07164879

Courtesy of NISSAN MOTOR CO., U.S.A.

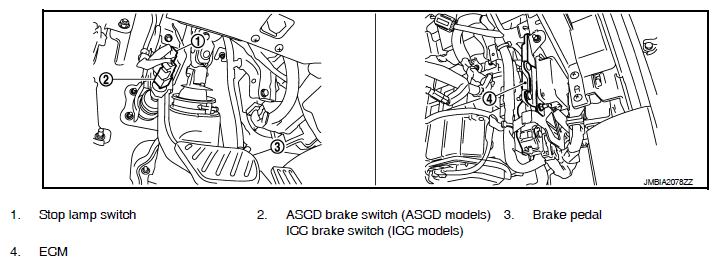

Fig 17: Identifying Cooling Fan Control Components Location (17 Of 20)

G07164880

Courtesy of NISSAN MOTOR CO., U.S.A.

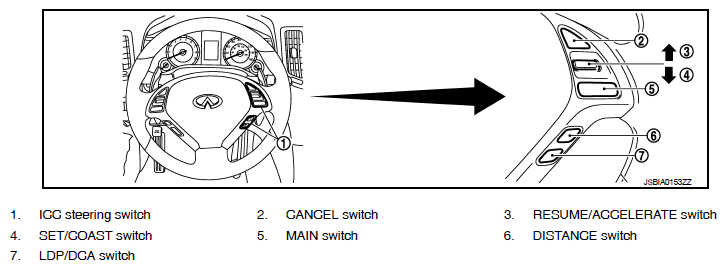

Fig 18: Identifying Cooling Fan Control Components Location (18 Of 20)

G07164881

Courtesy of NISSAN MOTOR CO., U.S.A.

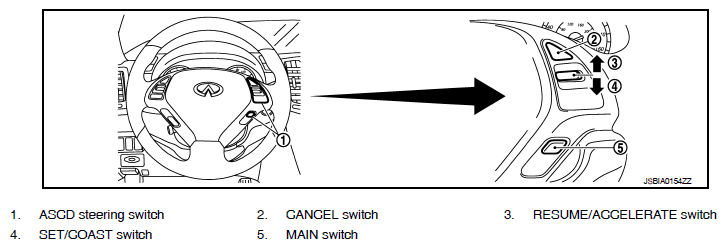

Fig 19: Identifying Cooling Fan Control Components Location (19 Of 20)

G07164882

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Cooling Fan Control Components Location (20 Of 20)

G07164883

Courtesy of NISSAN MOTOR CO., U.S.A.
