Component Parts Location

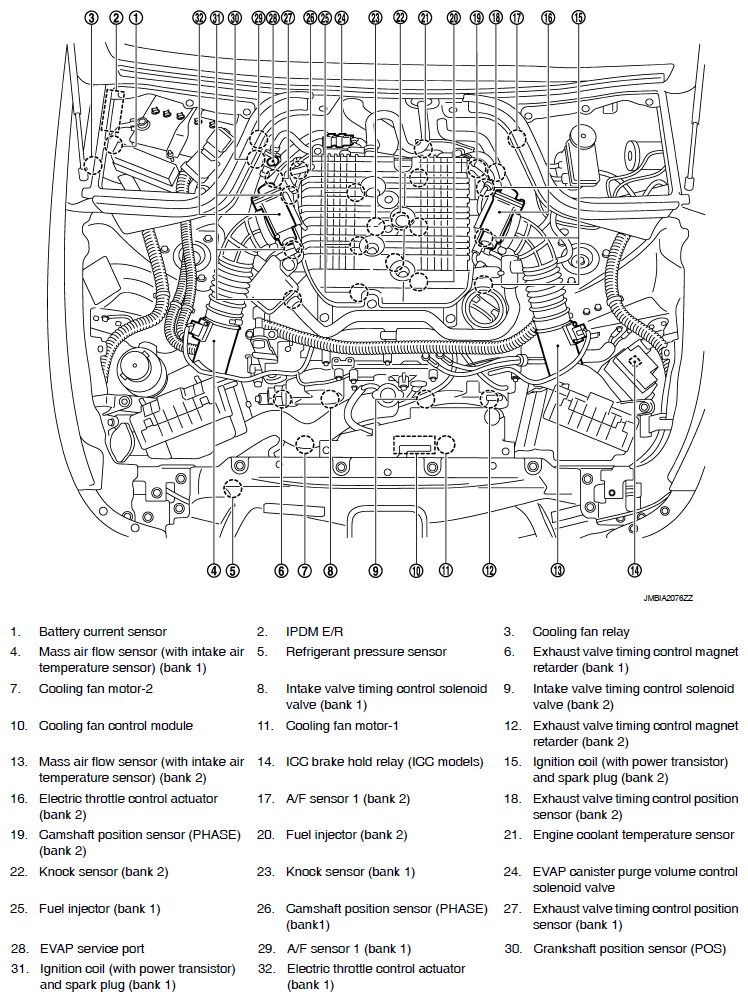

Fig 1: Identifying Electric Ignition System Components Location (1 Of 20)

G07164801

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Electric Ignition System Components Location (2 Of 20)

G07164802

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Electric Ignition System Components Location (3 Of 20)

G07164803

Courtesy of NISSAN MOTOR CO., U.S.A.

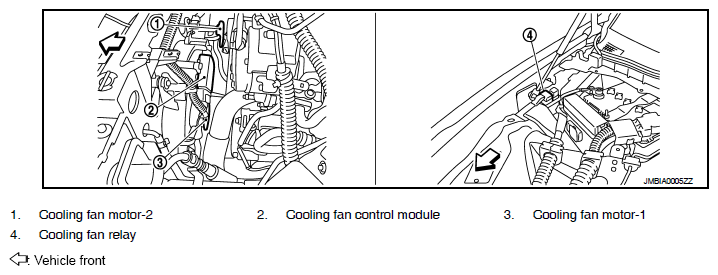

Fig 4: Identifying Electric Ignition System Components Location (4 Of 20)

G07164804

Courtesy of NISSAN MOTOR CO., U.S.A.

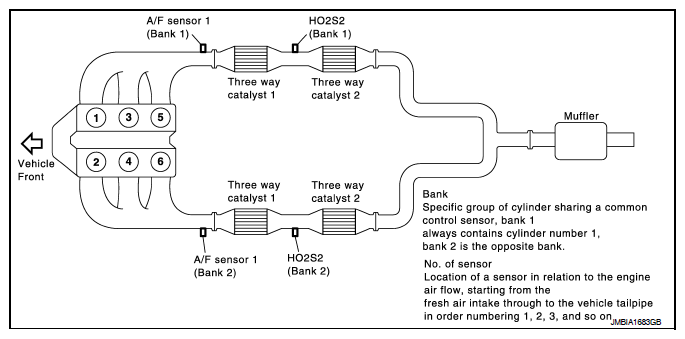

Fig 5: Identifying Electric Ignition System Components Location (5 Of 20)

G07164805

Courtesy of NISSAN MOTOR CO., U.S.A.

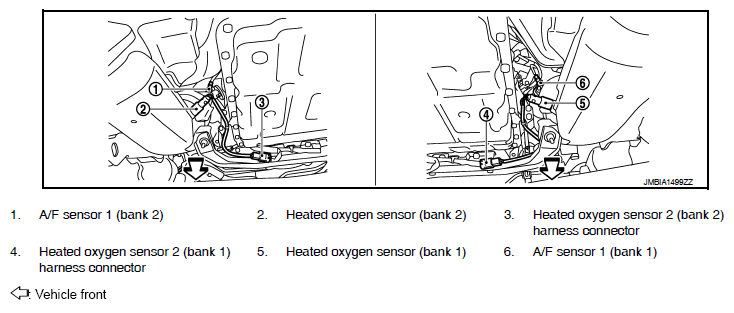

Fig 6: Identifying Electric Ignition System Components Location (6 Of 20)

G07164806

Courtesy of NISSAN MOTOR CO., U.S.A.

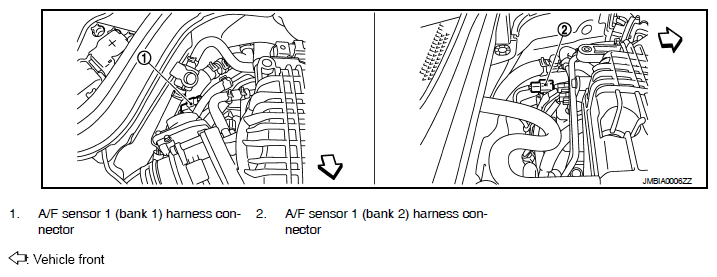

Fig 7: Identifying Electric Ignition System Components Location (7 Of 20)

G07164807

Courtesy of NISSAN MOTOR CO., U.S.A.

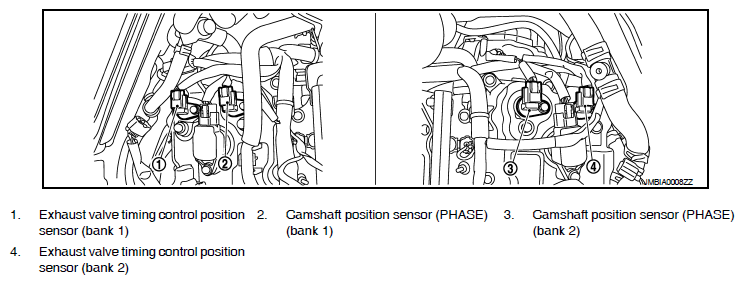

Fig 8: Identifying Electric Ignition System Components Location (8 Of 20)

G07164808

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Electric Ignition System Components Location (9 Of 20)

G07164809

Courtesy of NISSAN MOTOR CO., U.S.A.

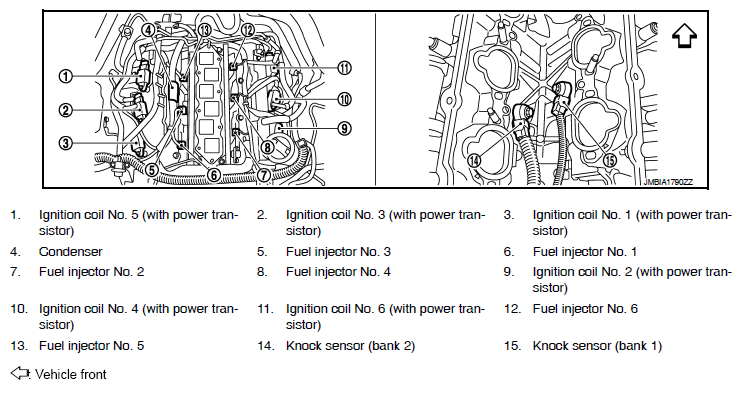

Fig 10: Identifying Electric Ignition System Components Location (10 Of 20)

G07164810

Courtesy of NISSAN MOTOR CO., U.S.A.

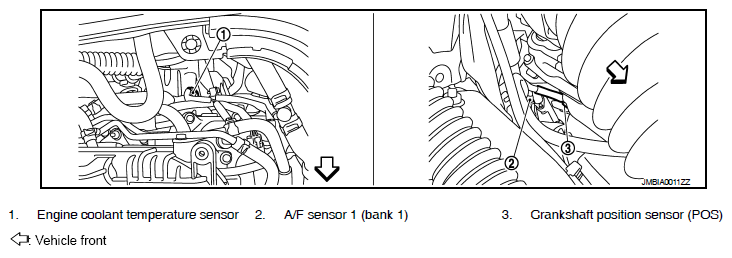

Fig 11: Identifying Electric Ignition System Components Location (11 Of 20)

G07164811

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Electric Ignition System Components Location (12 Of 20)

G07164812

Courtesy of NISSAN MOTOR CO., U.S.A.

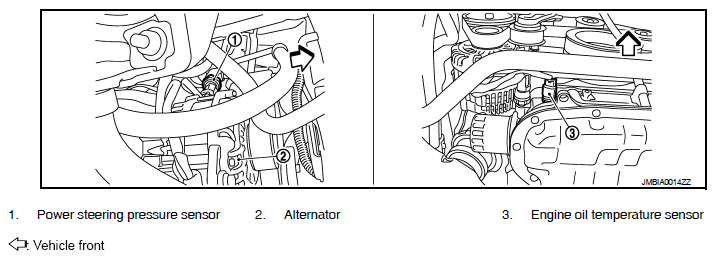

Fig 13: Identifying Electric Ignition System Components Location (13 Of 20)

G07164813

Courtesy of NISSAN MOTOR CO., U.S.A.

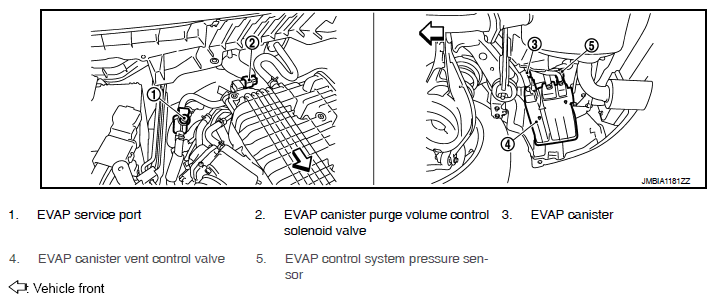

Fig 14: Identifying Electric Ignition System Components Location (14 Of 20)

G07164814

Courtesy of NISSAN MOTOR CO., U.S.A.

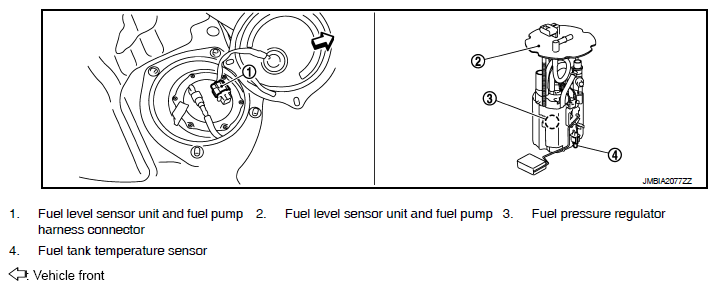

Fig 15: Identifying Electric Ignition System Components Location (15 Of 20)

G07164815

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Electric Ignition System Components Location (16 Of 20)

G07164816

Courtesy of NISSAN MOTOR CO., U.S.A.

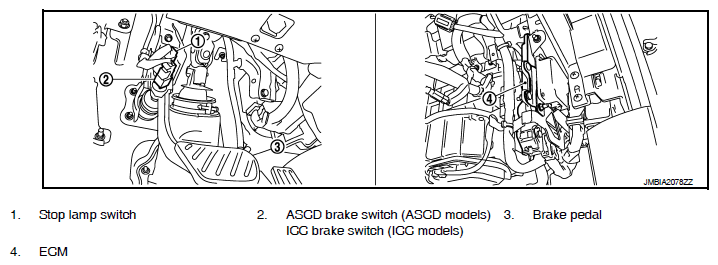

Fig 17: Identifying Electric Ignition System Components Location (17 Of 20)

G07164817

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Electric Ignition System Components Location (18 Of 20)

G07164818

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Electric Ignition System Components Location (19 Of 20)

G07164819

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Electric Ignition System Components Location (20 Of 20)

G07164820

Courtesy of NISSAN MOTOR CO., U.S.A.
