Component Parts Location

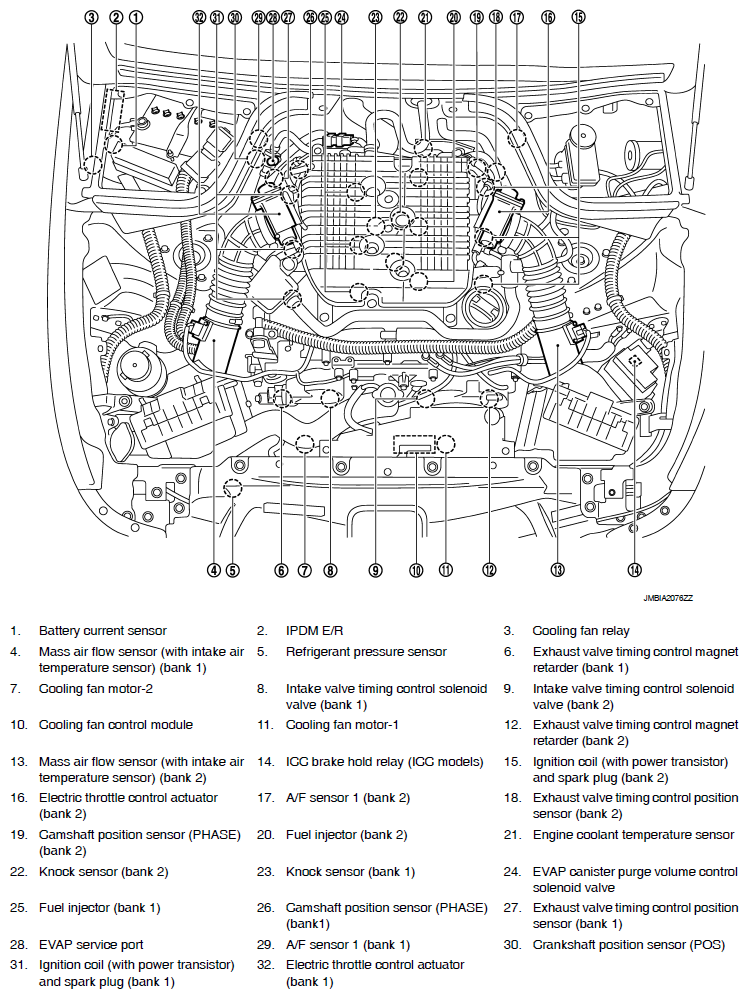

Fig 1: Identifying Engine Control System Component Location (1 Of 20)

G07164757

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine Control System Component Location (2 Of 20)

G07164758

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Engine Control System Component Location (3 Of 20)

G07164759

Courtesy of NISSAN MOTOR CO., U.S.A.

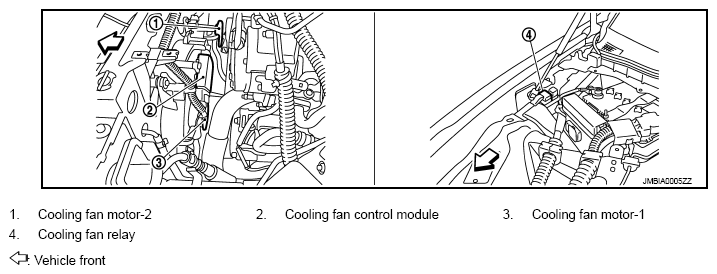

Fig 4: Identifying Engine Control System Component Location (4 Of 20)

G07164760

Courtesy of NISSAN MOTOR CO., U.S.A.

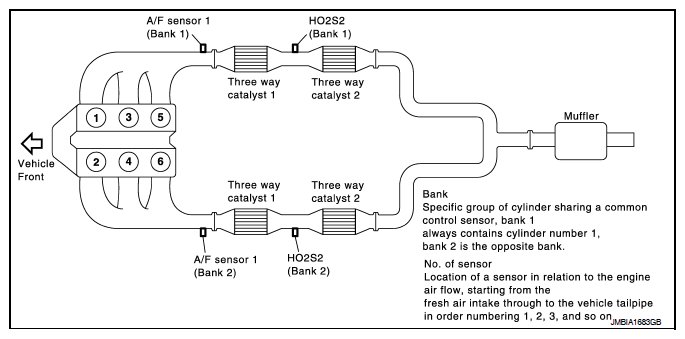

Fig 5: Identifying Engine Control System Component Location (5 Of 20)

G07164761

Courtesy of NISSAN MOTOR CO., U.S.A.

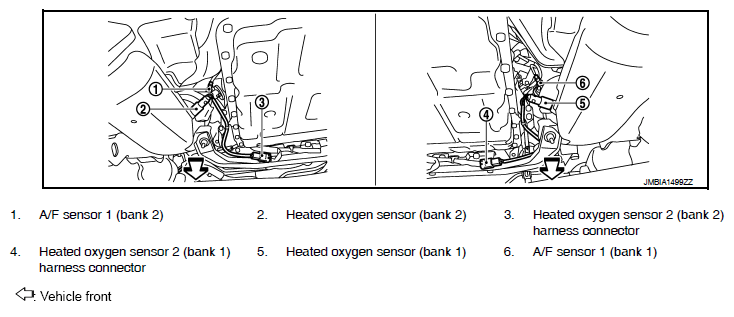

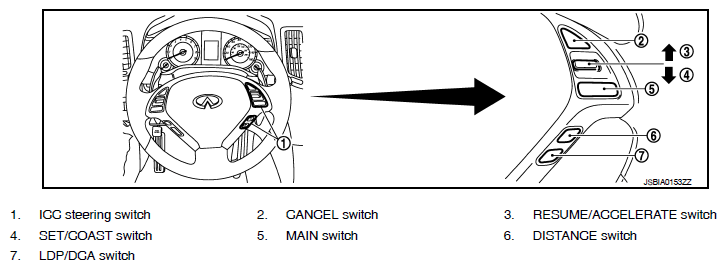

Fig 6: Identifying Engine Control System Component Location (6 Of 20)

G07164762

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Engine Control System Component Location (7 Of 20)

G07164763

Courtesy of NISSAN MOTOR CO., U.S.A.

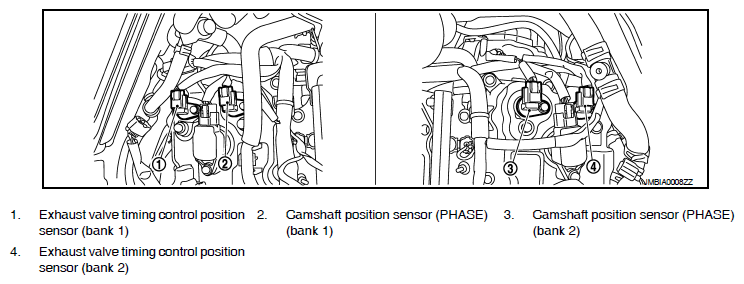

Fig 8: Identifying Engine Control System Component Location (8 Of 20)

G07164764

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Engine Control System Component Location (9 Of 20)

G07164765

Courtesy of NISSAN MOTOR CO., U.S.A.

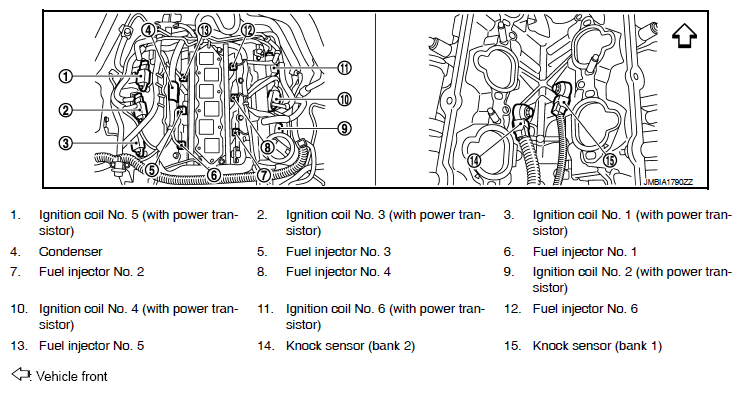

Fig 10: Identifying Engine Control System Component Location (10 Of 20)

G07164766

Courtesy of NISSAN MOTOR CO., U.S.A.

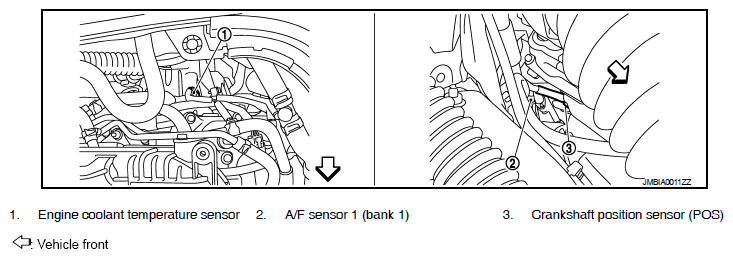

Fig 11: Identifying Engine Control System Component Location (11 Of 20)

G07164767

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Engine Control System Component Location (12 Of 20)

G07164768

Courtesy of NISSAN MOTOR CO., U.S.A.

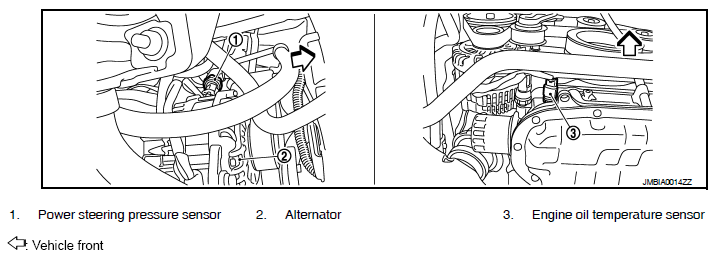

Fig 13: Identifying Engine Control System Component Location (13 Of 20)

G07164769

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Engine Control System Component Location (14 Of 20)

G07164770

Courtesy of NISSAN MOTOR CO., U.S.A.

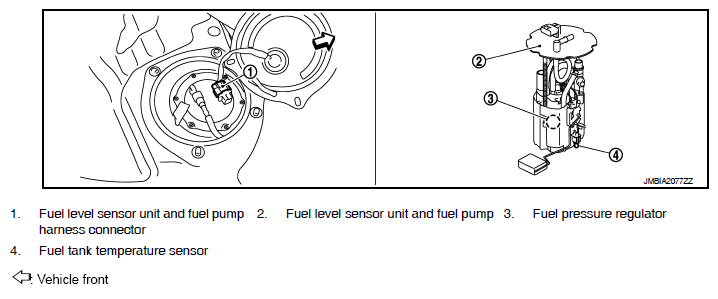

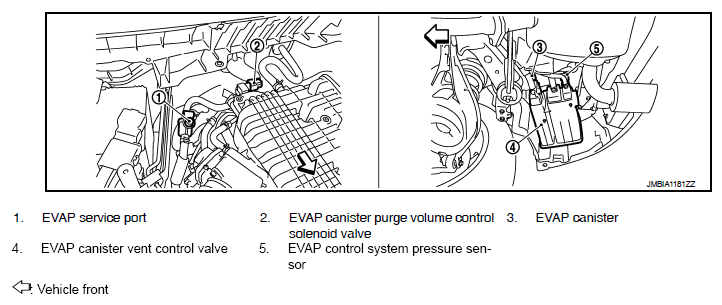

Fig 15: Identifying Engine Control System Component Location (15 Of 20)

G07164771

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Engine Control System Component Location (16 Of 20)

G07164772

Courtesy of NISSAN MOTOR CO., U.S.A.

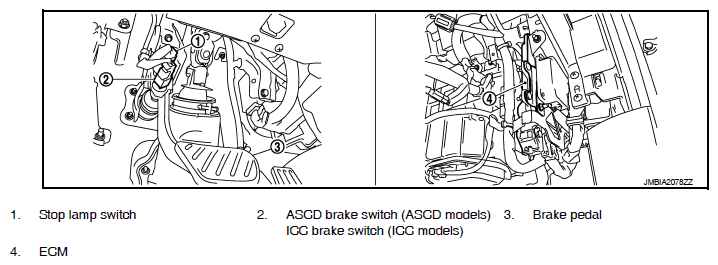

Fig 17: Identifying Engine Control System Component Location (17 Of 20)

G07164773

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Engine Control System Component Location (18 Of 20)

G07164774

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Engine Control System Component Location (19 Of 20)

G07164775

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Engine Control System Component Location (20 Of 20)

G07164776

Courtesy of NISSAN MOTOR CO., U.S.A.
