Component Parts Location

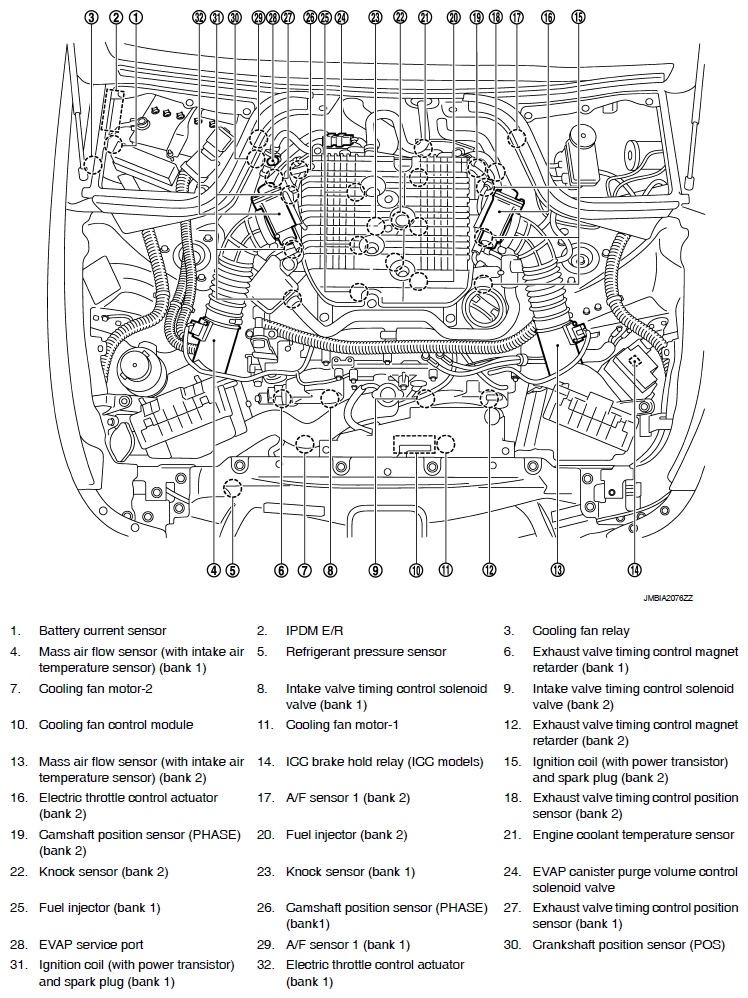

Fig 1: Identifying Evaporative Emission System Components Location (1 Of 20)

G07164886

Courtesy of NISSAN MOTOR CO., U.S.A.

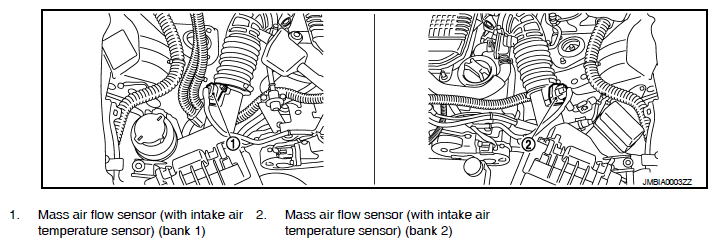

Fig 2: Identifying Evaporative Emission System Components Location (2 Of 20)

G07164887

Courtesy of NISSAN MOTOR CO., U.S.A.

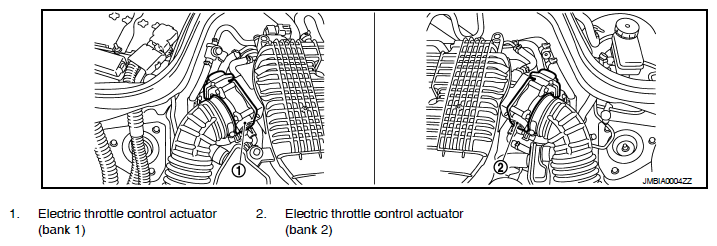

Fig 3: Identifying Evaporative Emission System Components Location (3 Of 20)

G07164888

Courtesy of NISSAN MOTOR CO., U.S.A.

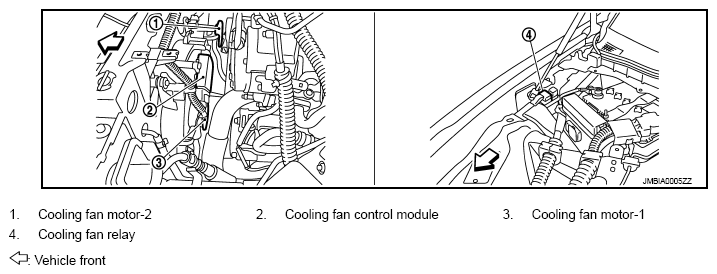

Fig 4: Identifying Evaporative Emission System Components Location (4 Of 20)

G07164889

Courtesy of NISSAN MOTOR CO., U.S.A.

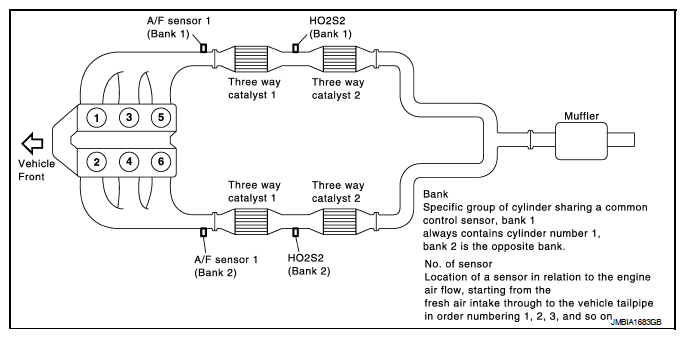

Fig 5: Identifying Evaporative Emission System Components Location (5 Of 20)

G07164890

Courtesy of NISSAN MOTOR CO., U.S.A.

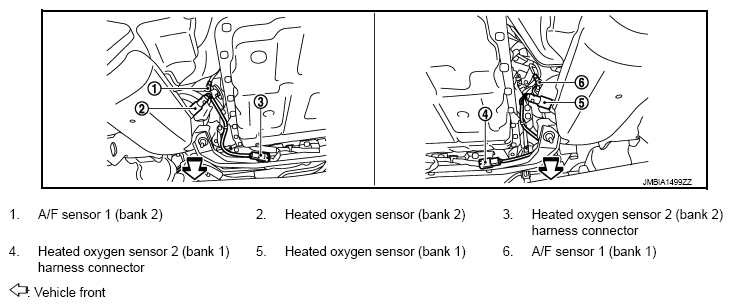

Fig 6: Identifying Evaporative Emission System Components Location (6 Of 20)

G07164891

Courtesy of NISSAN MOTOR CO., U.S.A.

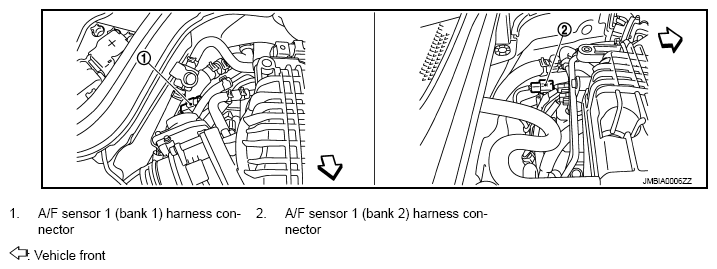

Fig 7: Identifying Evaporative Emission System Components Location (7 Of 20)

G07164892

Courtesy of NISSAN MOTOR CO., U.S.A.

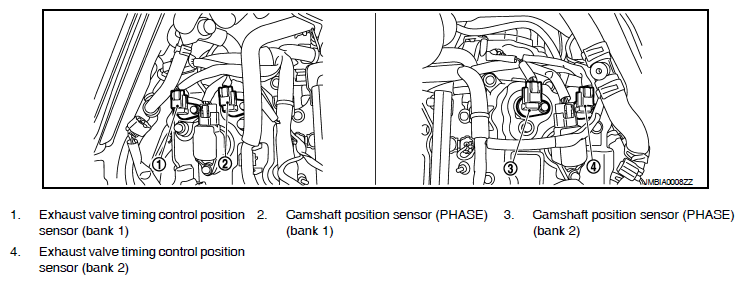

Fig 8: Identifying Evaporative Emission System Components Location (8 Of 20)

G07164893

Courtesy of NISSAN MOTOR CO., U.S.A.

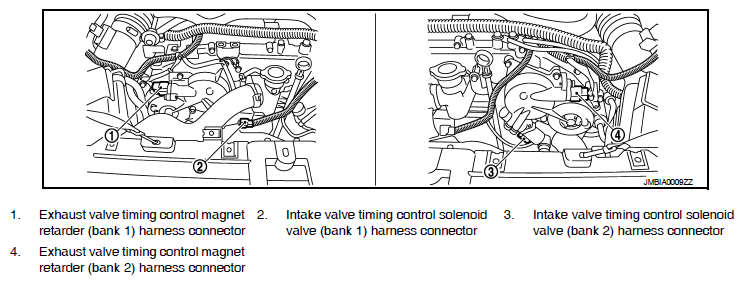

Fig 9: Identifying Evaporative Emission System Components Location (9 Of 20)

G07164894

Courtesy of NISSAN MOTOR CO., U.S.A.

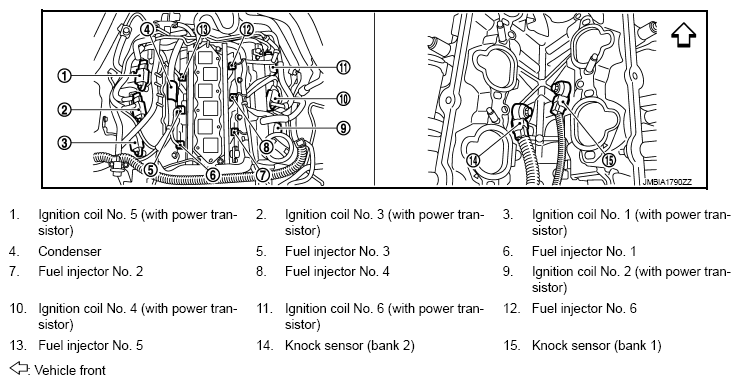

Fig 10: Identifying Evaporative Emission System Components Location (10 Of 20)

G07164895

Courtesy of NISSAN MOTOR CO., U.S.A.

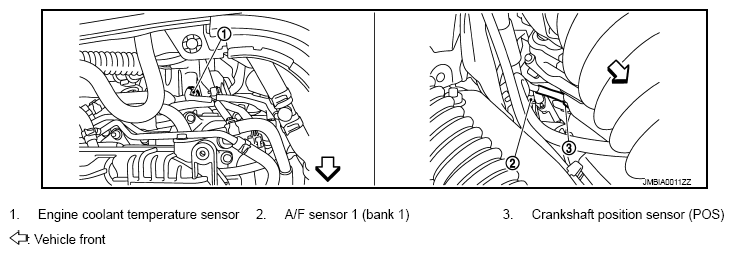

Fig 11: Identifying Evaporative Emission System Components Location (11 Of 20)

G07164896

Courtesy of NISSAN MOTOR CO., U.S.A.

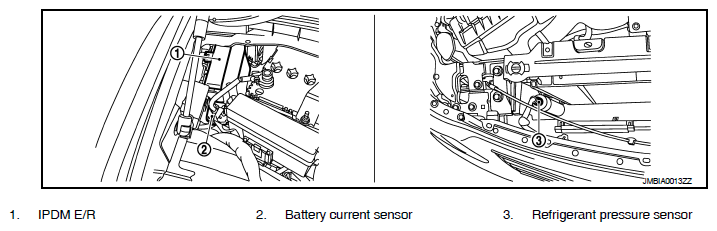

Fig 12: Identifying Evaporative Emission System Components Location (12 Of 20)

G07164897

Courtesy of NISSAN MOTOR CO., U.S.A.

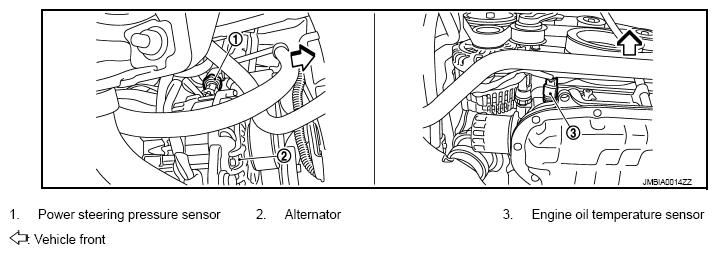

Fig 13: Identifying Evaporative Emission System Components Location (13 Of 20)

G07164898

Courtesy of NISSAN MOTOR CO., U.S.A.

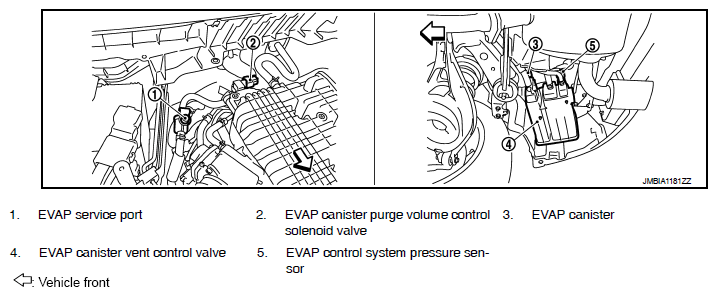

Fig 14: Identifying Evaporative Emission System Components Location (14 Of 20)

G07164899

Courtesy of NISSAN MOTOR CO., U.S.A.

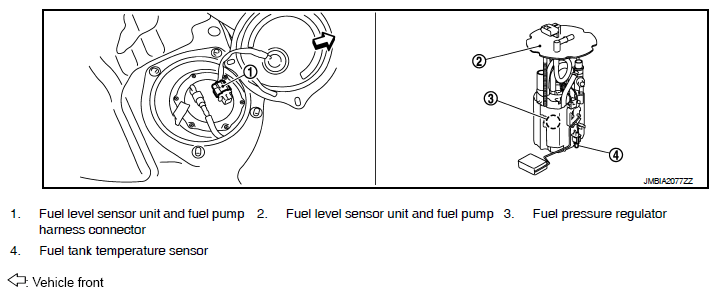

Fig 15: Identifying Evaporative Emission System Components Location (15 Of 20)

G07164900

Courtesy of NISSAN MOTOR CO., U.S.A.

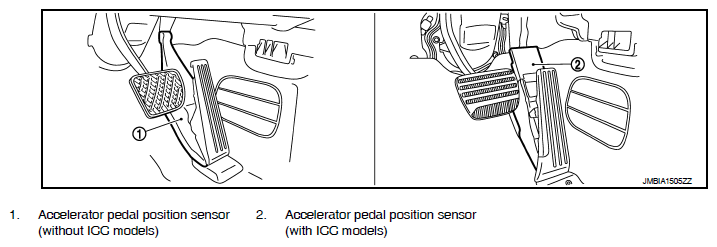

Fig 16: Identifying Evaporative Emission System Components Location (16 Of 20)

G07164901

Courtesy of NISSAN MOTOR CO., U.S.A.

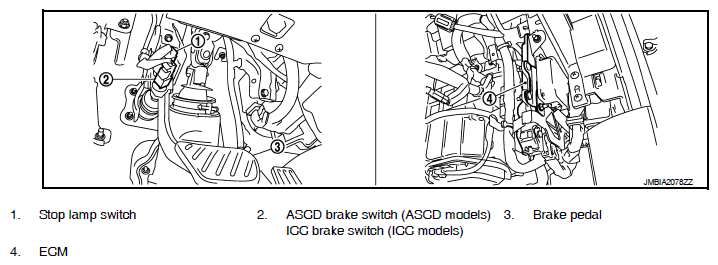

Fig 17: Identifying Evaporative Emission System Components Location (17 Of 20)

G07164902

Courtesy of NISSAN MOTOR CO., U.S.A.

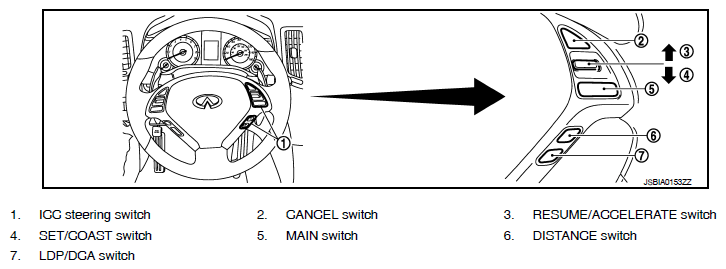

Fig 18: Identifying Evaporative Emission System Components Location (18 Of 20)

G07164903

Courtesy of NISSAN MOTOR CO., U.S.A.

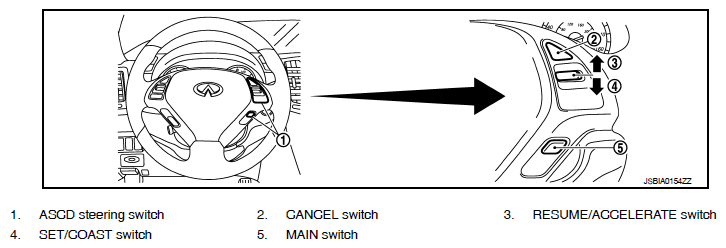

Fig 19: Identifying Evaporative Emission System Components Location (19 Of 20)

G07164904

Courtesy of NISSAN MOTOR CO., U.S.A.

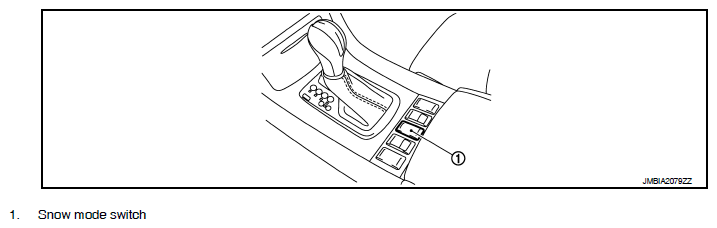

Fig 20: Identifying Evaporative Emission System Components Location (20 Of 20)

G07164905

Courtesy of NISSAN MOTOR CO., U.S.A.
