Component Parts Location

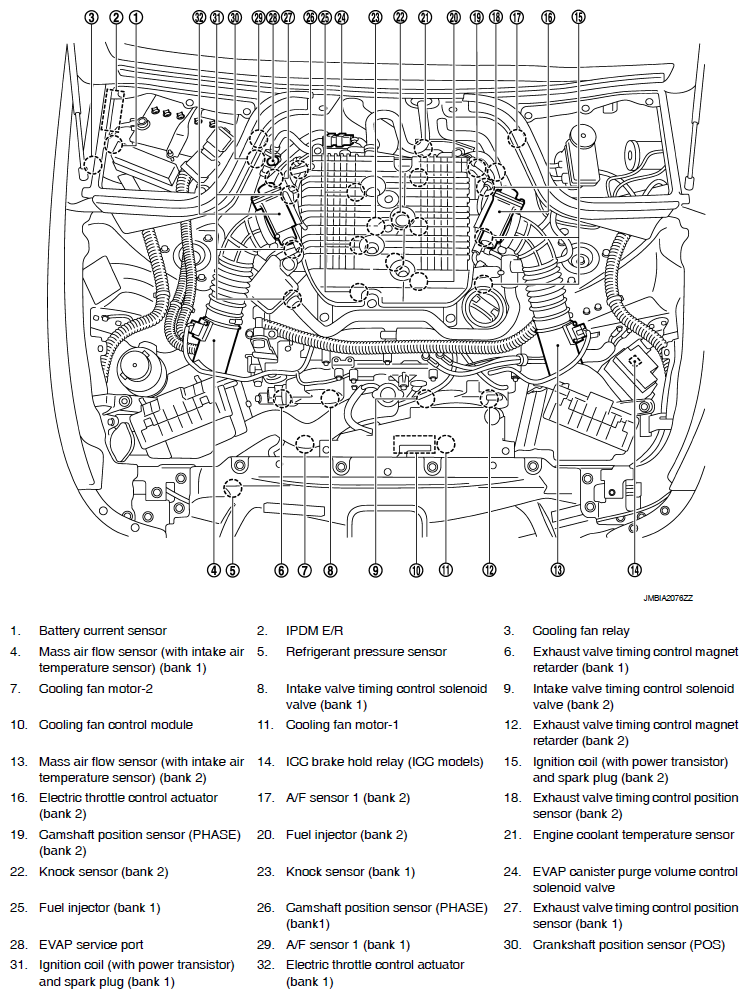

Fig 1: Identifying Exhaust Valve Timing Control Components Location (1 Of 20)
G07164908Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Exhaust Valve Timing Control Components Location (2 Of 20)
G07164909Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying Exhaust Valve Timing Control Components Location (3 Of 20)
G07164910Courtesy of NISSAN MOTOR CO., U.S.A.

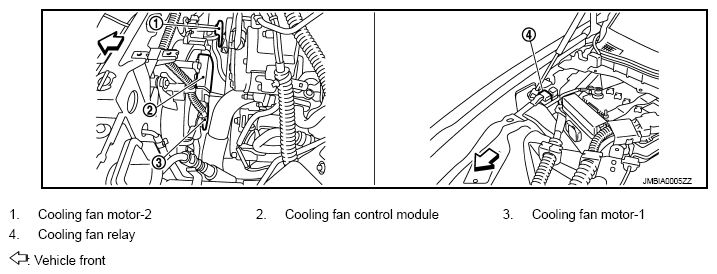

Fig 4: Identifying Exhaust Valve Timing Control Components Location (4 Of 20)
G07164911Courtesy of NISSAN MOTOR CO., U.S.A.

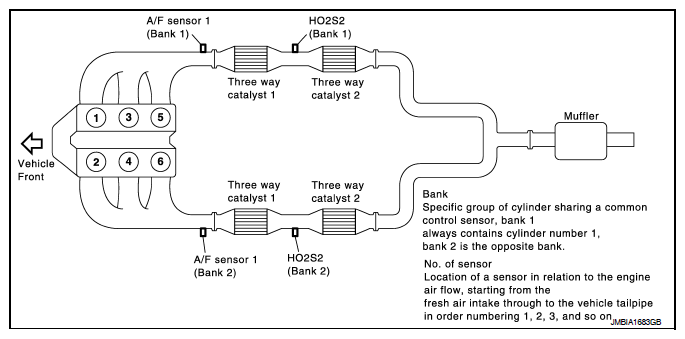

Fig 5: Identifying Exhaust Valve Timing Control Components Location (5 Of 20)
G07164912Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: Identifying Exhaust Valve Timing Control Components Location (6 Of 20)
G07164913Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 7: Identifying Exhaust Valve Timing Control Components Location (7 Of 20)
G07164914Courtesy of NISSAN MOTOR CO., U.S.A.

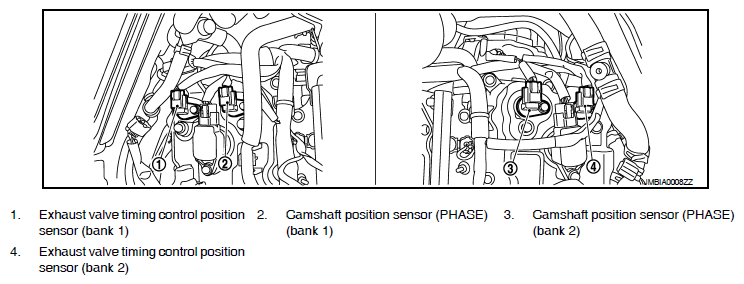

Fig 8: Identifying Exhaust Valve Timing Control Components Location (8 Of 20)
G07164915Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 9: Identifying Exhaust Valve Timing Control Components Location (9 Of 20)
G07164916Courtesy of NISSAN MOTOR CO., U.S.A.

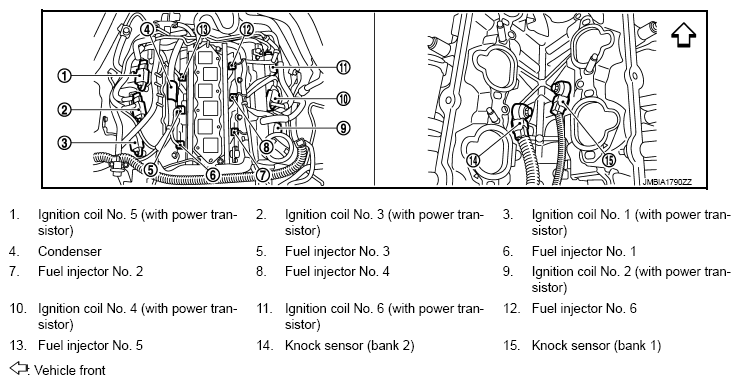

Fig 10: Identifying Exhaust Valve Timing Control Components Location (10 Of 20)
G07164917Courtesy of NISSAN MOTOR CO., U.S.A.

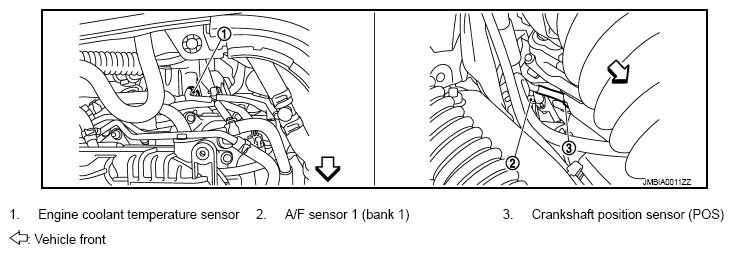

Fig 11: Identifying Exhaust Valve Timing Control Components Location (11 Of 20)
G07164918Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 12: Identifying Exhaust Valve Timing Control Components Location (12 Of 20)
G07164919Courtesy of NISSAN MOTOR CO., U.S.A.

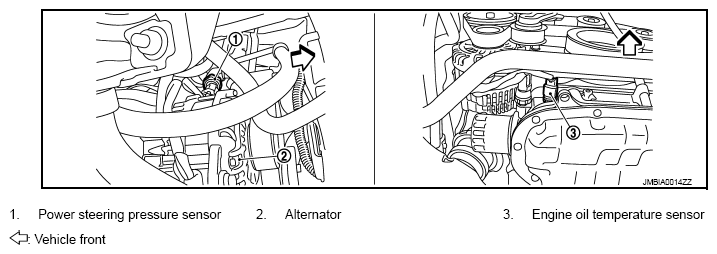

Fig 13: Identifying Exhaust Valve Timing Control Components Location (13 Of 20)
G07164920Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 14: Identifying Exhaust Valve Timing Control Components Location (14 Of 20)
G07164921Courtesy of NISSAN MOTOR CO., U.S.A.

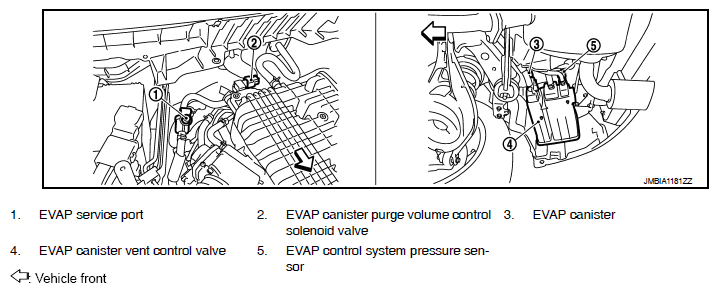

Fig 15: Identifying Exhaust Valve Timing Control Components Location (15 Of 20)
G07164922Courtesy of NISSAN MOTOR CO., U.S.A.

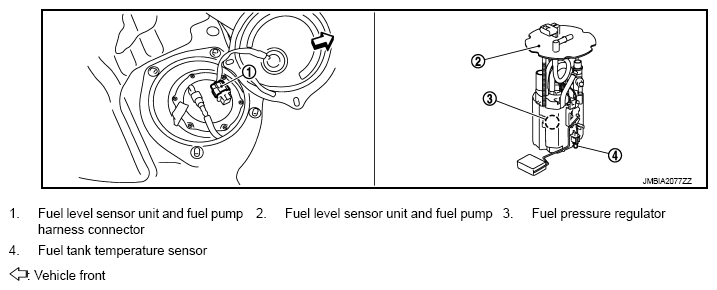

Fig 16: Identifying Exhaust Valve Timing Control Components Location (16 Of 20)
G07164923Courtesy of NISSAN MOTOR CO., U.S.A.

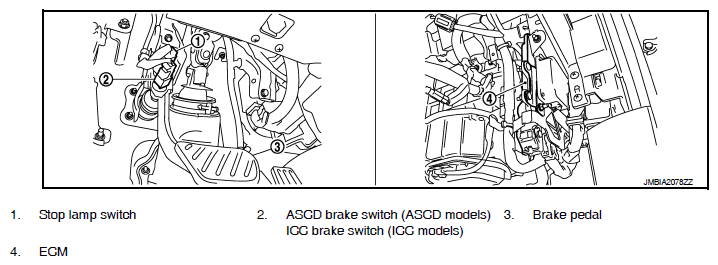

Fig 17: Identifying Exhaust Valve Timing Control Components Location (17 Of 20)
G07164924Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 18: Identifying Exhaust Valve Timing Control Components Location (18 Of 20)
G07164925Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 19: Identifying Exhaust Valve Timing Control Components Location (19 Of 20)
G07164926Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 20: Identifying Exhaust Valve Timing Control Components Location (20 Of 20)
G07164927Courtesy of NISSAN MOTOR CO., U.S.A.
