Component Parts Location

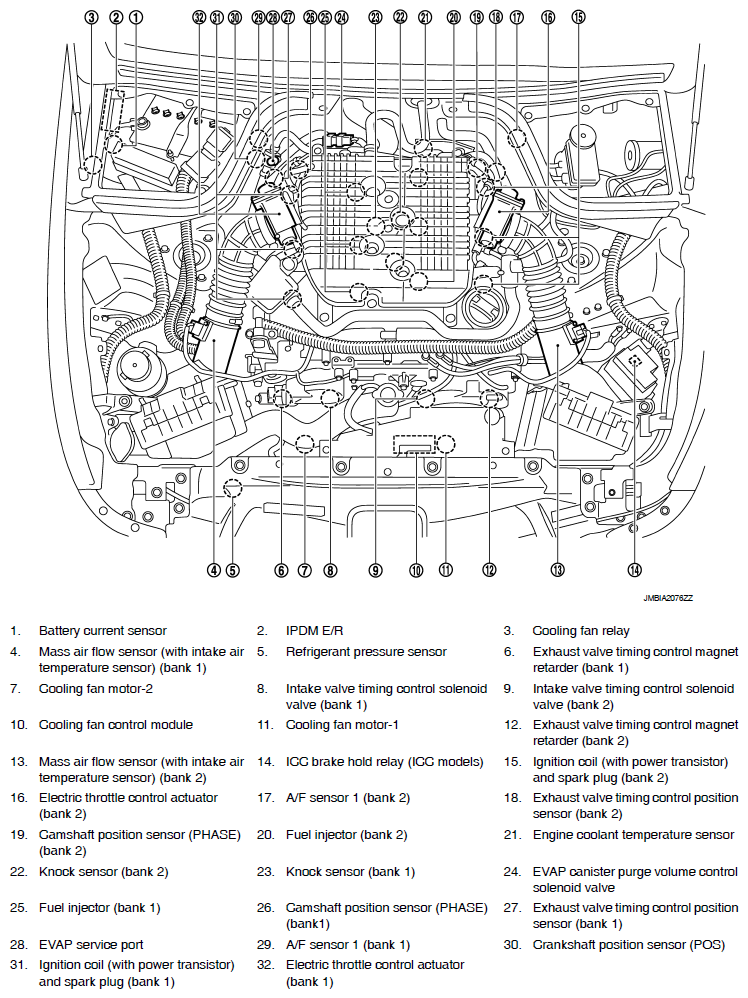

Fig 1: Identifying Intake Valve Timing Control Components Location (1 Of 20)

G07164951

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Intake Valve Timing Control Components Location (2 Of 20)

G07164952

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Intake Valve Timing Control Components Location (3 Of 20)

G07164953

Courtesy of NISSAN MOTOR CO., U.S.A.

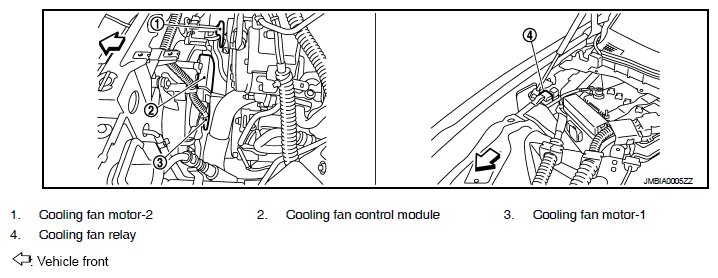

Fig 4: Identifying Intake Valve Timing Control Components Location (4 Of 20)

G07164954

Courtesy of NISSAN MOTOR CO., U.S.A.

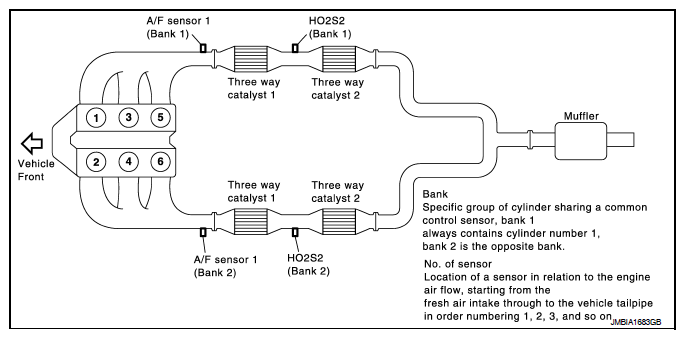

Fig 5: Identifying Intake Valve Timing Control Components Location (5 Of 20)

G07164955

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Intake Valve Timing Control Components Location (6 Of 20)

G07164956

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Intake Valve Timing Control Components Location (7 Of 20)

G07164957

Courtesy of NISSAN MOTOR CO., U.S.A.

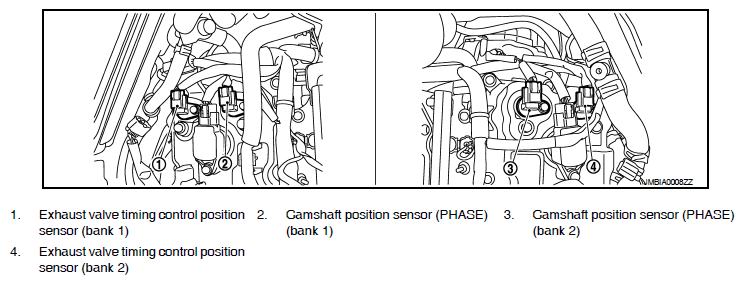

Fig 8: Identifying Intake Valve Timing Control Components Location (8 Of 20)

G07164958

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Intake Valve Timing Control Components Location (9 Of 20)

G07164959

Courtesy of NISSAN MOTOR CO., U.S.A.

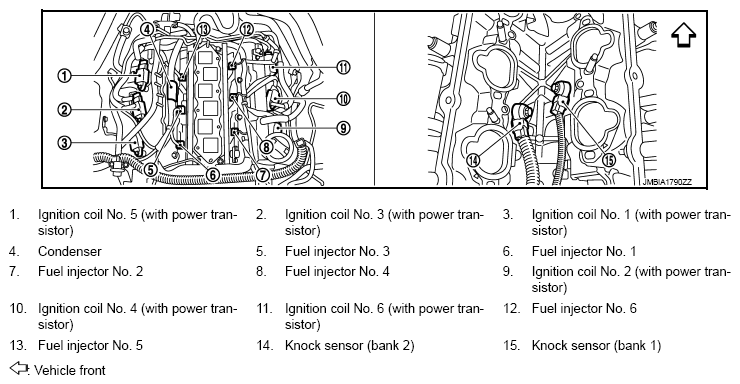

Fig 10: Identifying Intake Valve Timing Control Components Location (10 Of 20)

G07164960

Courtesy of NISSAN MOTOR CO., U.S.A.

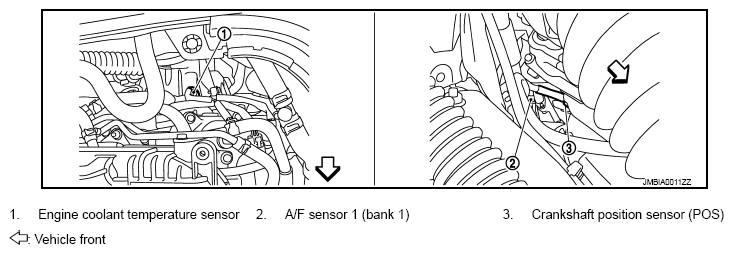

Fig 11: Identifying Intake Valve Timing Control Components Location (11 Of 20)

G07164961

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Intake Valve Timing Control Components Location (12 Of 20)

G07164962

Courtesy of NISSAN MOTOR CO., U.S.A.

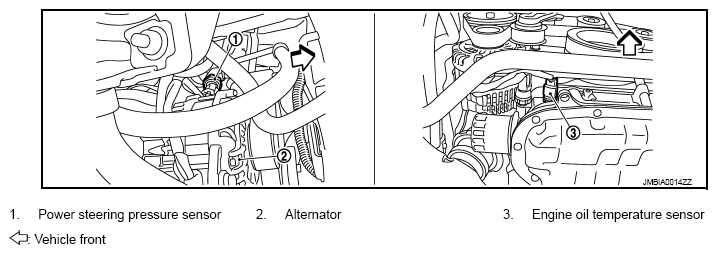

Fig 13: Identifying Intake Valve Timing Control Components Location (13 Of 20)

G07164963

Courtesy of NISSAN MOTOR CO., U.S.A.

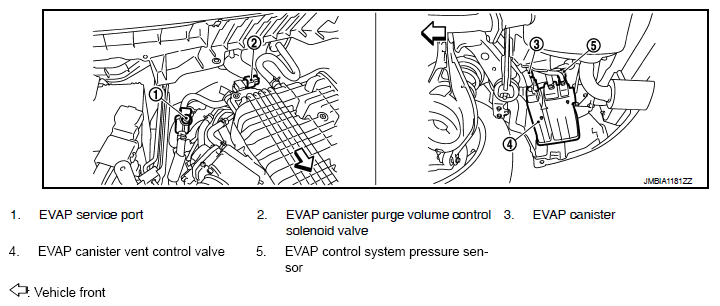

Fig 14: Identifying Intake Valve Timing Control Components Location (14 Of 20)

G07164964

Courtesy of NISSAN MOTOR CO., U.S.A.

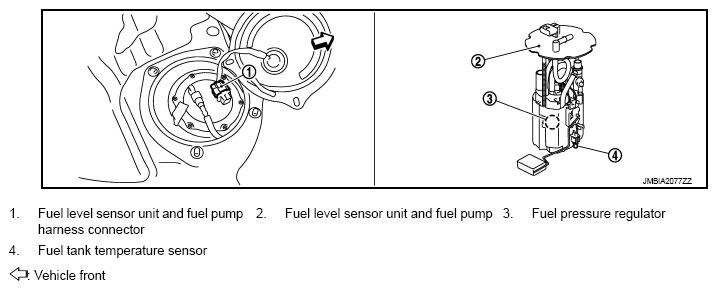

Fig 15: Identifying Intake Valve Timing Control Components Location (15 Of 20)

G07164965

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Intake Valve Timing Control Components Location (16 Of 20)

G07164966

Courtesy of NISSAN MOTOR CO., U.S.A.

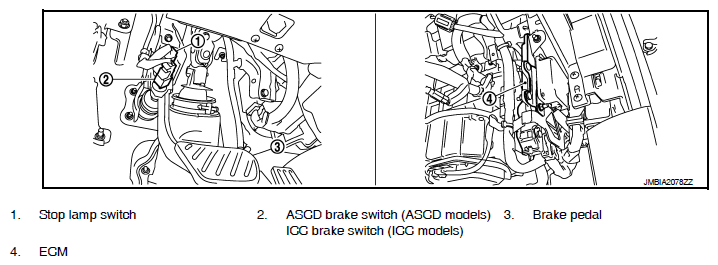

Fig 17: Identifying Intake Valve Timing Control Components Location (17 Of 20)

G07164967

Courtesy of NISSAN MOTOR CO., U.S.A.

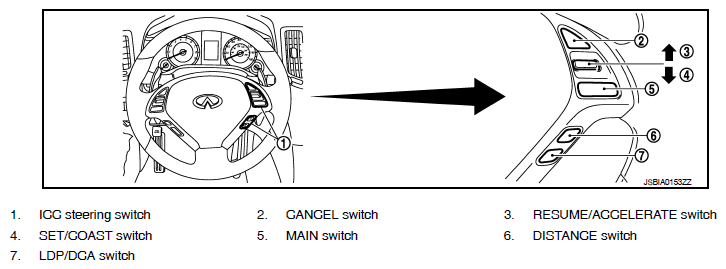

Fig 18: Identifying Intake Valve Timing Control Components Location (18 Of 20)

G07164968

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Intake Valve Timing Control Components Location (19 Of 20)

G07164969

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Intake Valve Timing Control Components Location (20 Of 20)

G07164970

Courtesy of NISSAN MOTOR CO., U.S.A.
