Home
>>
Infiniti
>>
2011
>>
EX35 Base, AWD
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
SRS Airbag Control System
>>
System Description
>>
Occupant Classification System
>>
Component Parts Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Parts Location

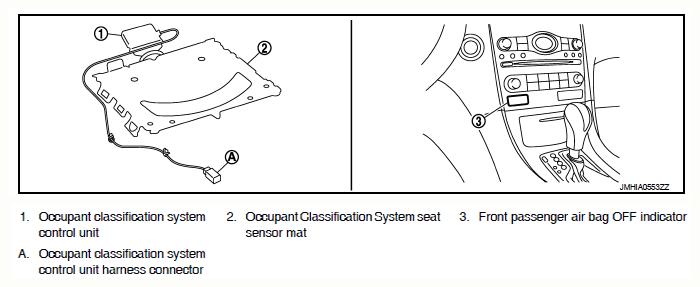

Fig 1: Identifying Occupant Classification System Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
