Exploded View

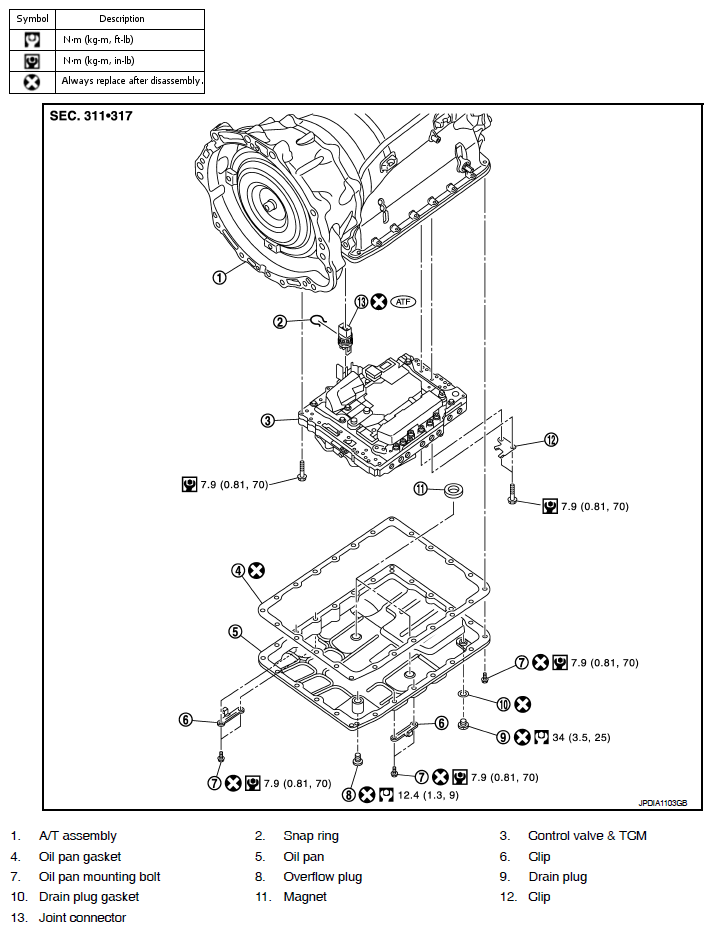

Fig 1: Exploded View Of Control Valve&TCM With Torque Specifications
G07165313Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
