Component Parts Location

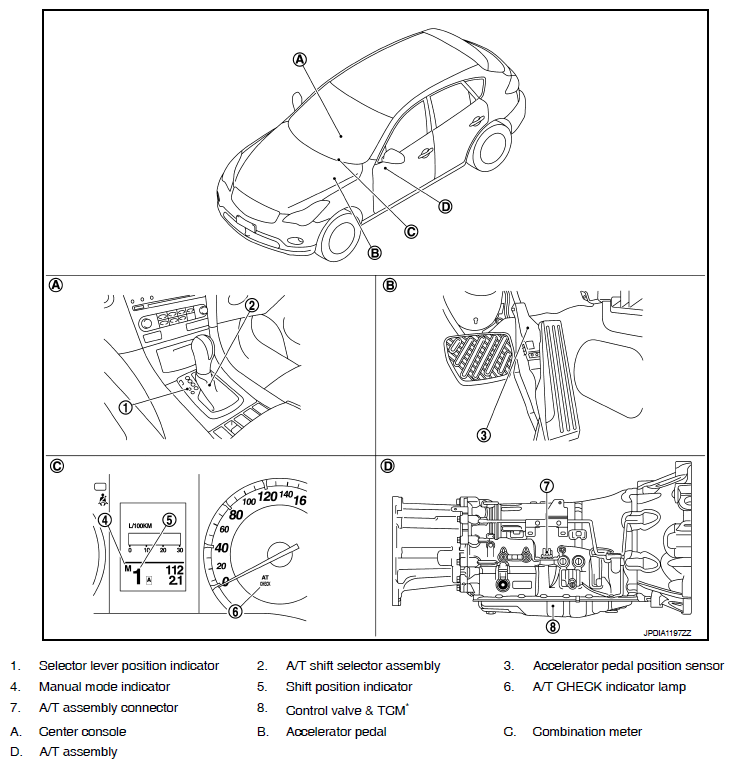

Fig 1: Identifying Lock-Up Control Components Location

G07165246

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

The following components are included in A/T shift selector assembly (2).
- Mode select switch
- Position select switch
- Shift position switch
The following components are included in control valve&TCM (8).

TCM
Input speed sensor 1, 2
Output speed sensor
A/T fluid temperature sensor
Transmission range switch
Direct clutch solenoid valve
High and low reverse clutch solenoid valve
Input clutch solenoid valve
Front brake solenoid valve
Low brake solenoid valve
Anti-interlock solenoid valve
2346 brake solenoid valve
Line pressure solenoid valve
Torque converter clutch solenoid valve
