AWD Models

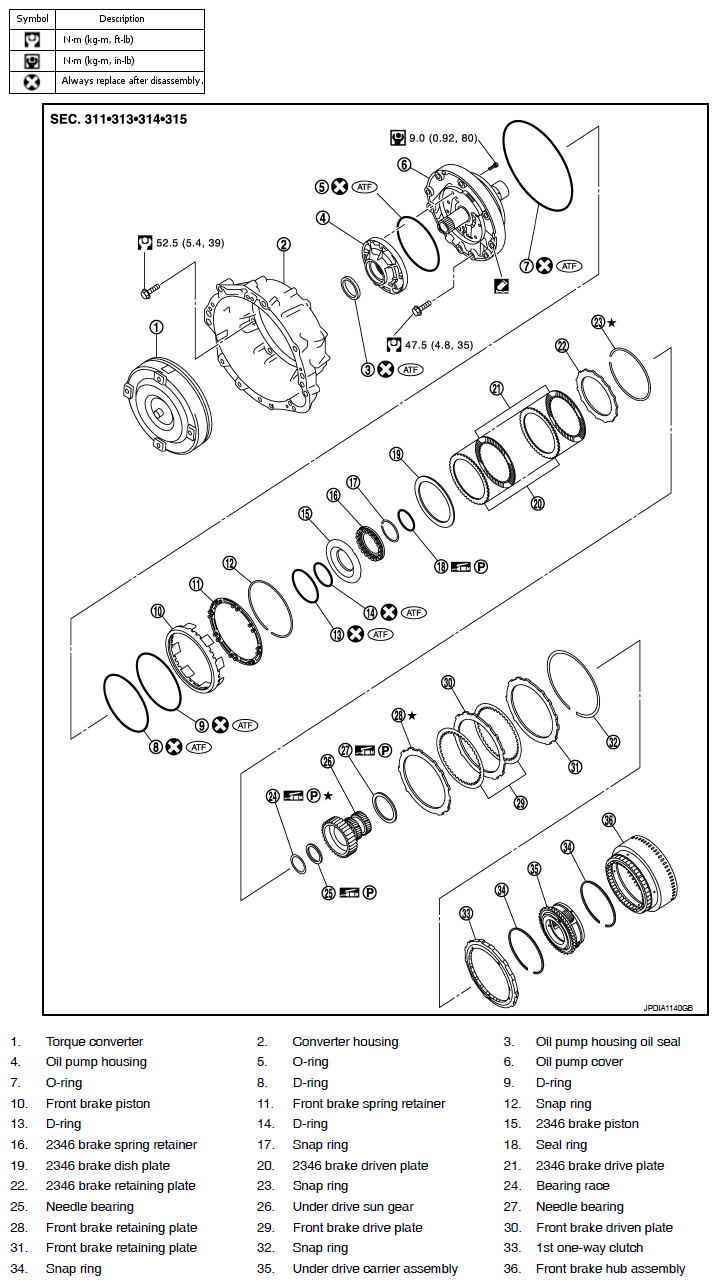

Fig 1: Transmission Assembly Replacement Components With Torque Specifications (AWD)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

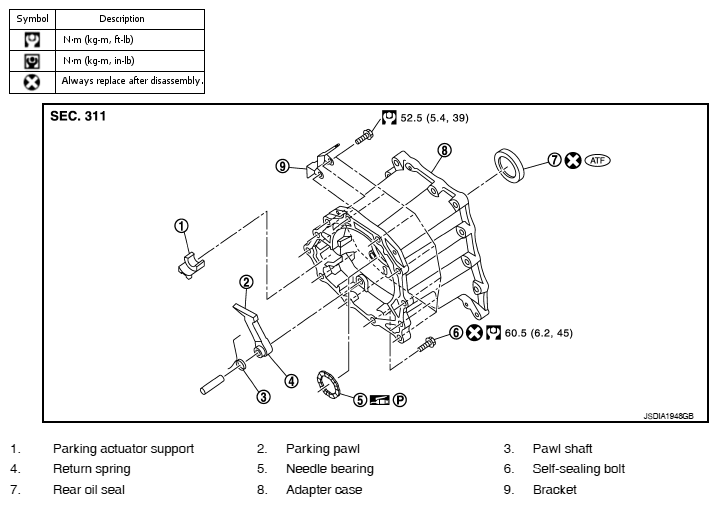

Fig 2: Identifying Transmission Assembly Components (Type 1)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

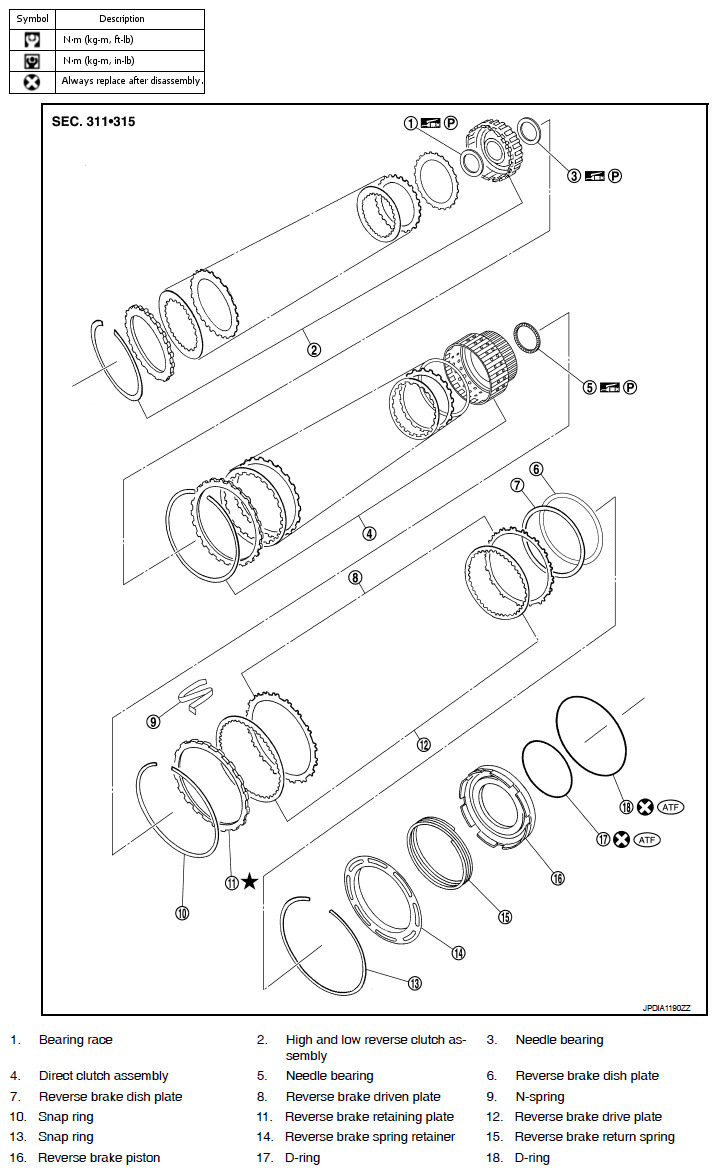

Fig 3: Identifying Transmission Assembly Components (Type 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

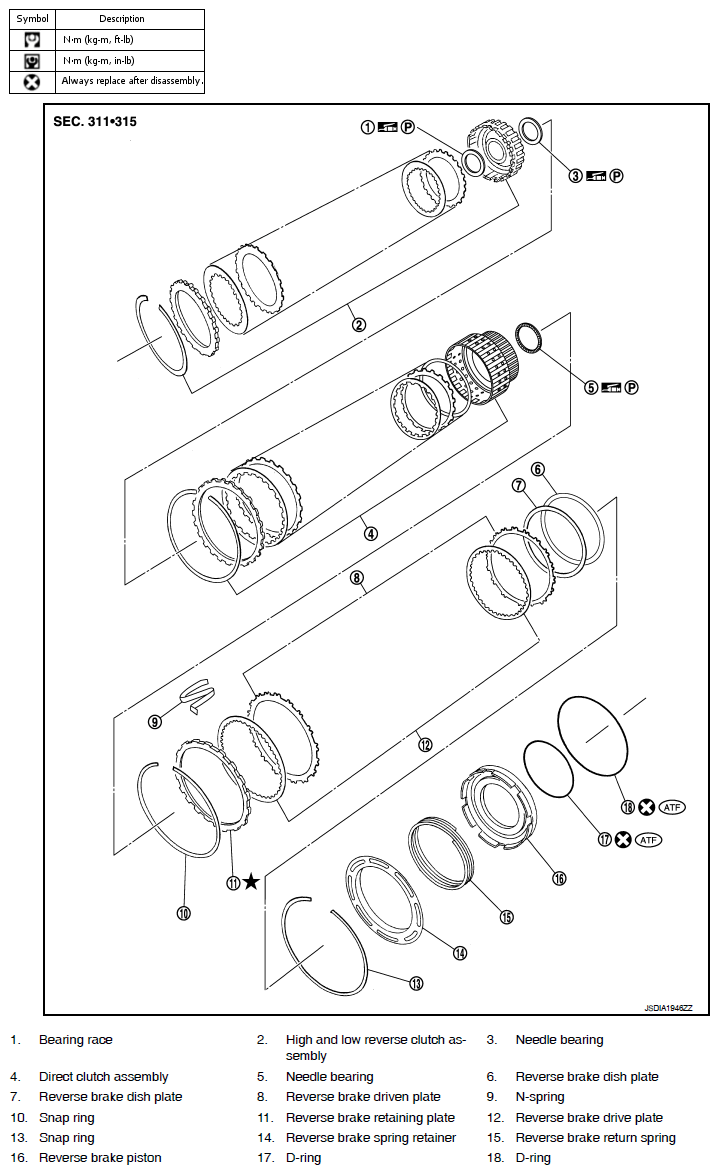

Fig 4: Identifying Transmission Assembly Components (Type 1)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

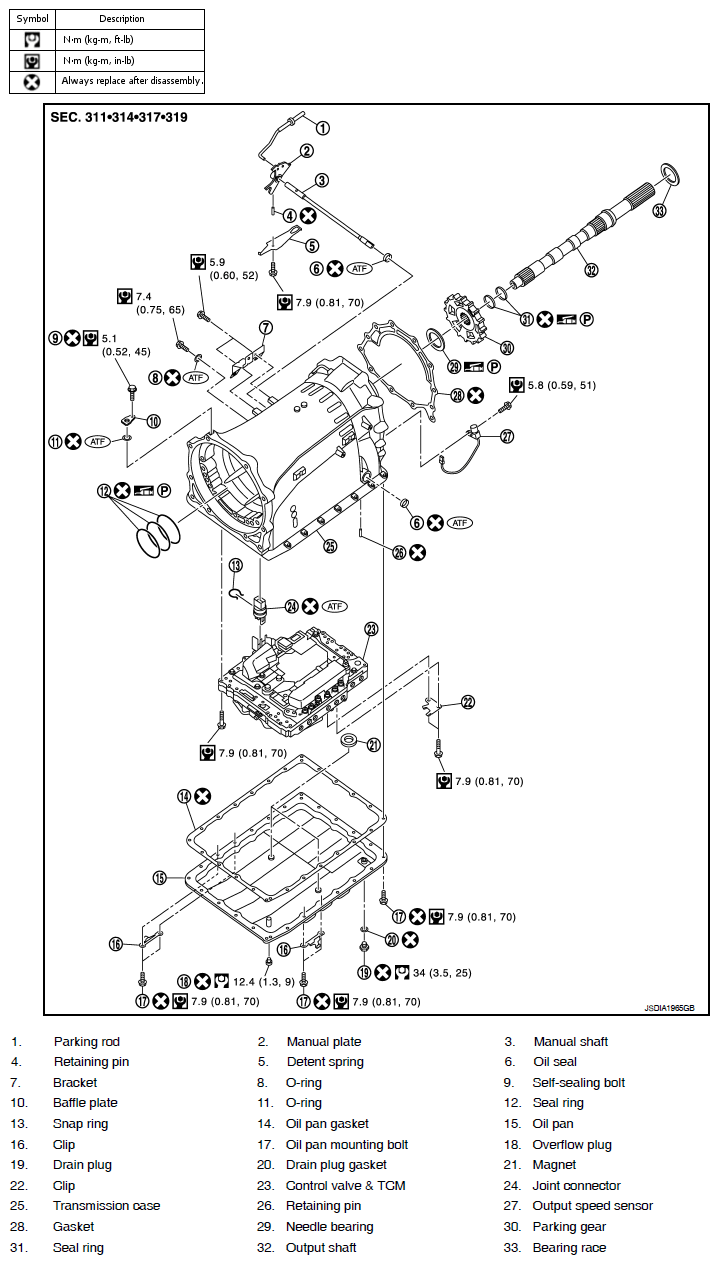

Fig 5: Identifying Transmission Assembly Components (Type 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

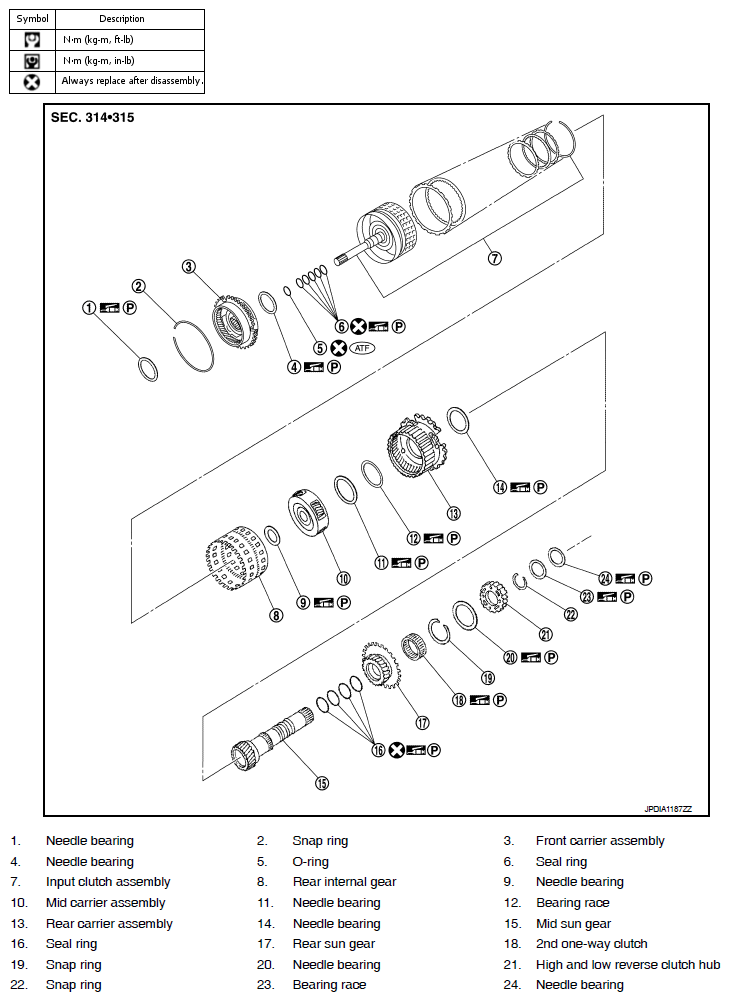

Fig 6: Transmission Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

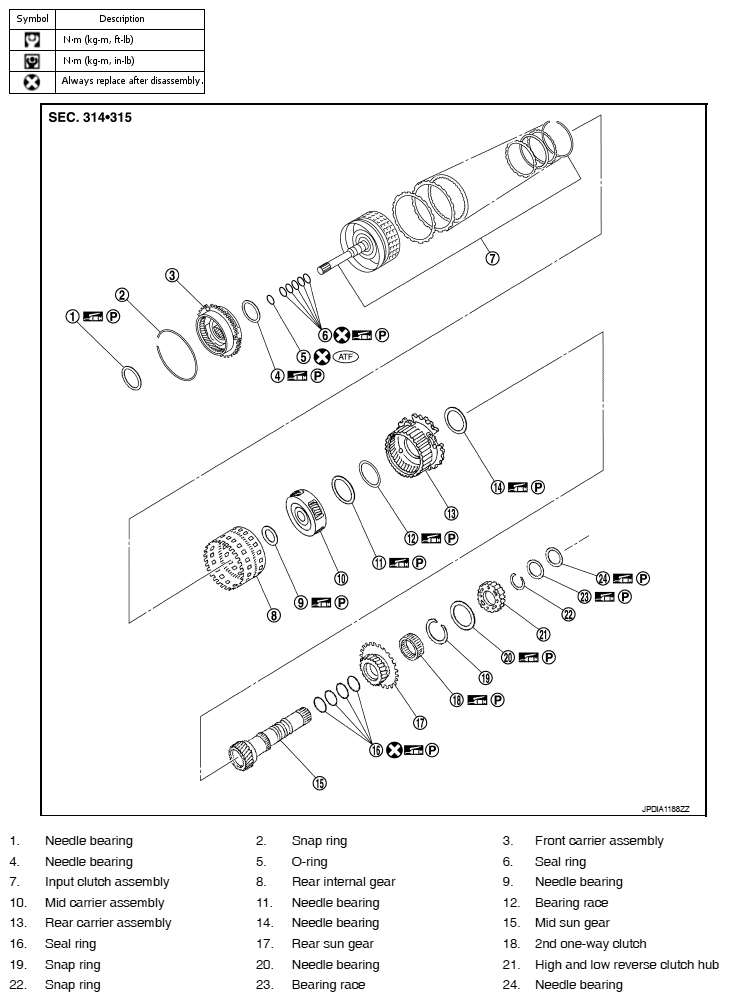

Fig 7: Transmission Assembly Replacement Components With Torque Specifications (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
