Fluid Level

  1. Remove filler plug (1) and gasket. Then check that fluid is filled up from mounting hole for the filler plug.
    CAUTION: Never start engine while checking fluid level.
  2. Set a new gasket onto filler plug, and install it on transfer and tighten to the specified torque. Refer to "EXPLODED VIEW ".
CAUTION: Never reuse gasket.

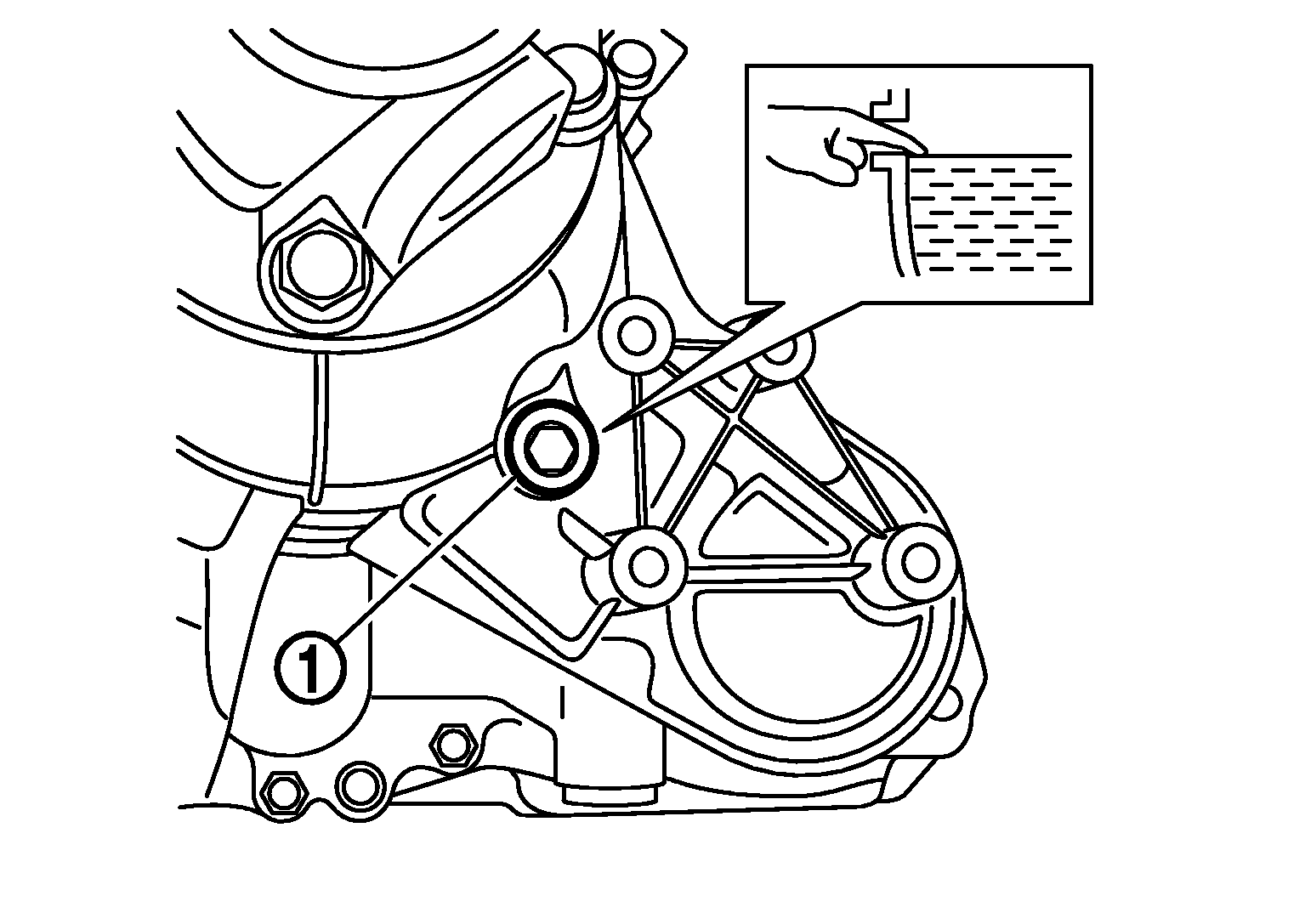

Fig 1: Checking Transfer Fluid Level From Mounting Hole
G05979320Courtesy of NISSAN MOTOR CO., U.S.A.
