Exploded View

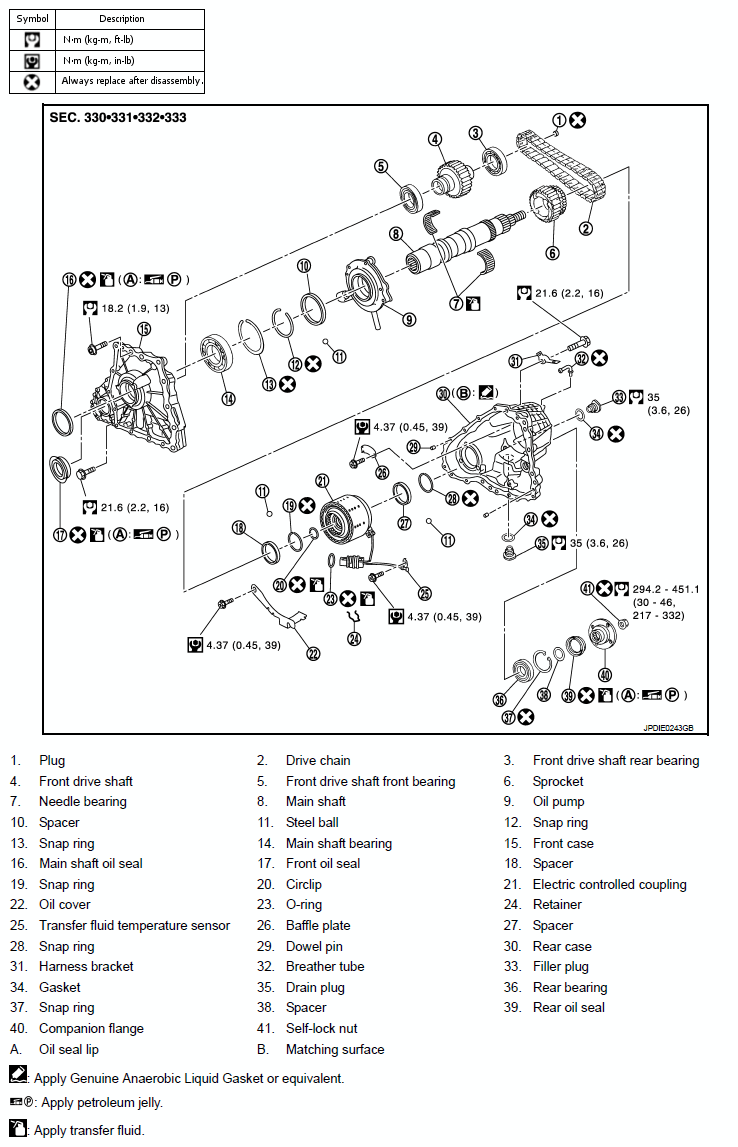

Fig 1: Front Case And Rear Case Replacement Components With Torque Specifications
G07167208Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described above.
