Exploded View

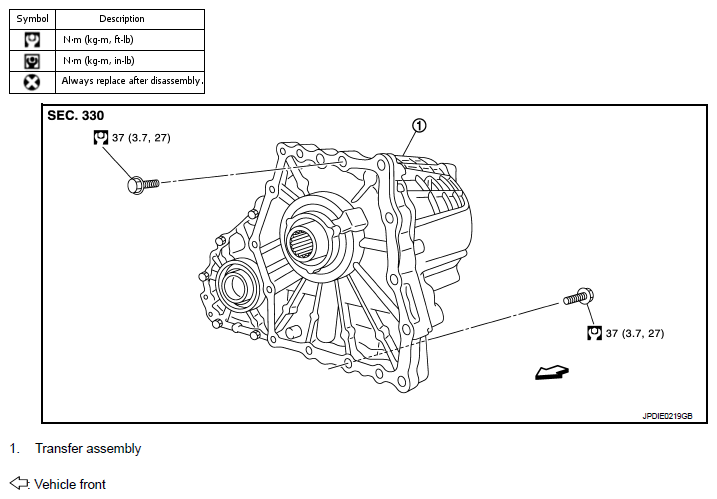

Fig 1: Transfer Assembly Replacement Components With Torque Specifications
G07167203Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
