Component Parts Location

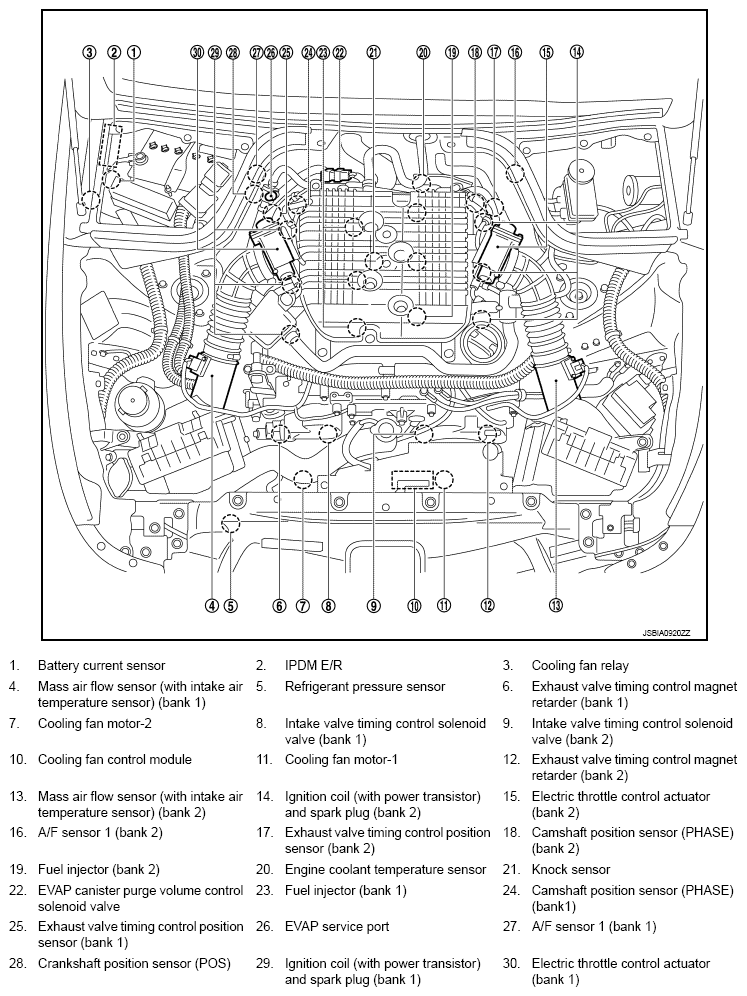

Fig 1: Identifying Air Conditioning Cut Control System Components Location (1 Of 21)

G07014687

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Air Conditioning Cut Control System Components Location (2 Of 21)

G07014688

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Air Conditioning Cut Control System Components Location (3 Of 21)

G07014689

Courtesy of NISSAN MOTOR CO., U.S.A.

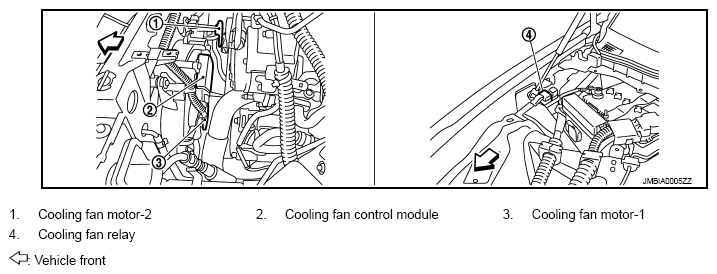

Fig 4: Identifying Air Conditioning Cut Control System Components Location (4 Of 21)

G07014690

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Air Conditioning Cut Control System Components Location (5 Of 21)

G05978207

Courtesy of NISSAN MOTOR CO., U.S.A.

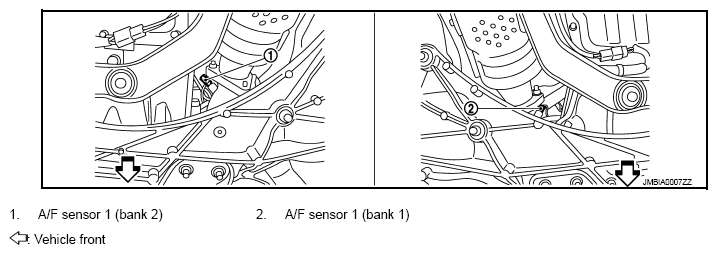

Fig 6: Identifying Air Conditioning Cut Control System Components Location (6 Of 21)

G07014692

Courtesy of NISSAN MOTOR CO., U.S.A.

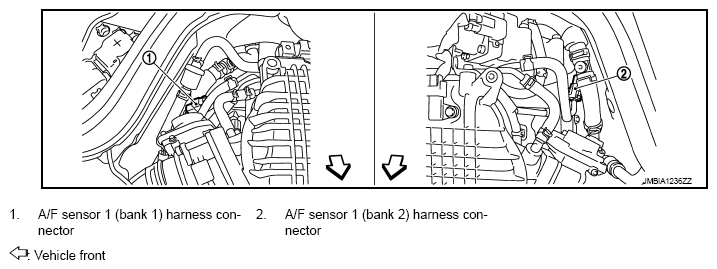

Fig 7: Identifying Air Conditioning Cut Control System Components Location (7 Of 21)

G07014693

Courtesy of NISSAN MOTOR CO., U.S.A.

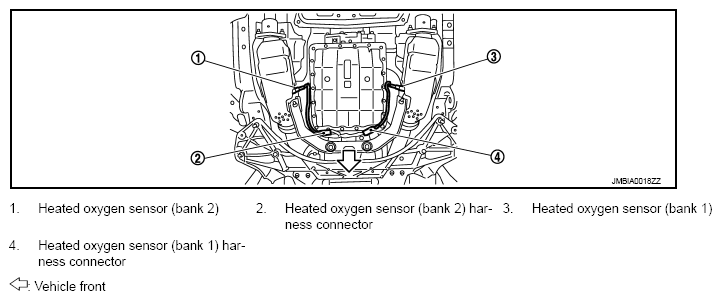

Fig 8: Identifying Air Conditioning Cut Control System Components Location (8 Of 21)

G07014694

Courtesy of NISSAN MOTOR CO., U.S.A.

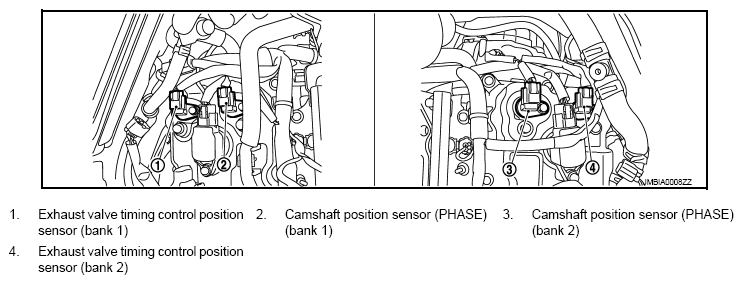

Fig 9: Identifying Air Conditioning Cut Control System Components Location (9 Of 21)

G07014695

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Air Conditioning Cut Control System Components Location (10 Of 21)

G07014696

Courtesy of NISSAN MOTOR CO., U.S.A.

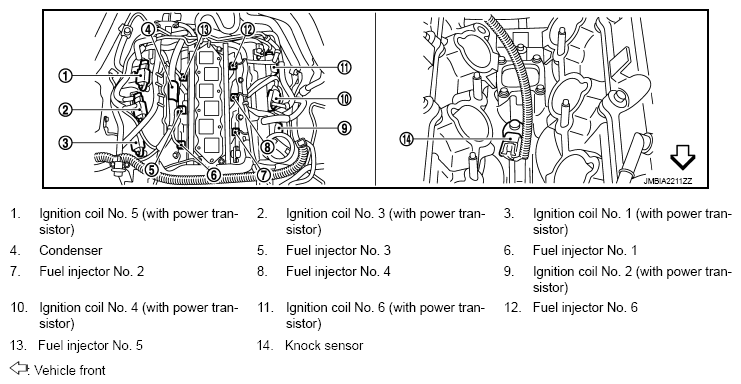

Fig 11: Identifying Air Conditioning Cut Control System Components Location (11 Of 21)

G07014697

Courtesy of NISSAN MOTOR CO., U.S.A.

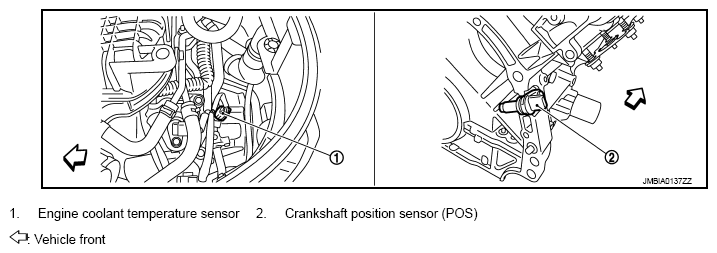

Fig 12: Identifying Air Conditioning Cut Control System Components Location (12 Of 21)

G07014698

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Air Conditioning Cut Control System Components Location (13 Of 21)

G07014699

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Air Conditioning Cut Control System Components Location (14 Of 21)

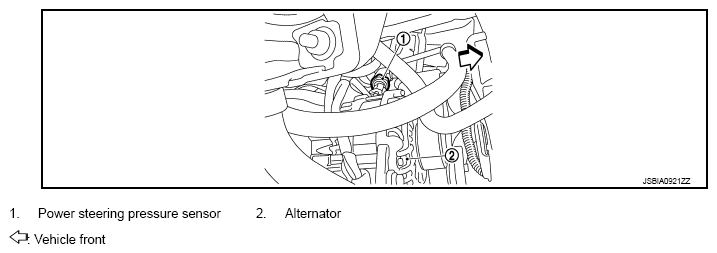

G07014700

Courtesy of NISSAN MOTOR CO., U.S.A.

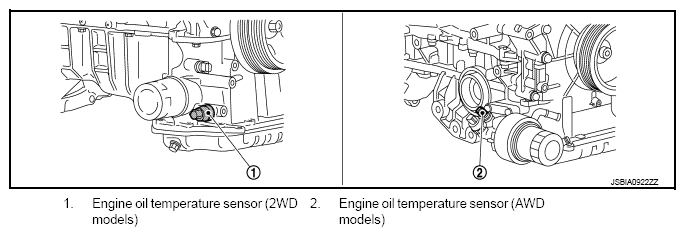

Fig 15: Identifying Air Conditioning Cut Control System Components Location (15 Of 21)

G07014701

Courtesy of NISSAN MOTOR CO., U.S.A.

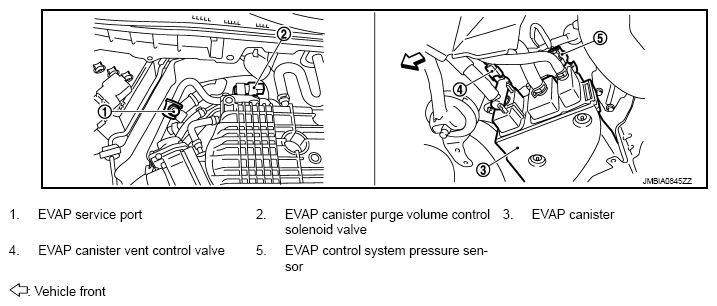

Fig 16: Identifying Air Conditioning Cut Control System Components Location (16 Of 21)

G07014702

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Air Conditioning Cut Control System Components Location (17 Of 21)

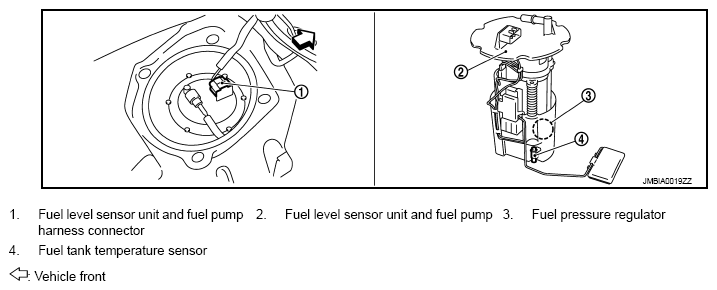

G07014703

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Air Conditioning Cut Control System Components Location (18 Of 21)

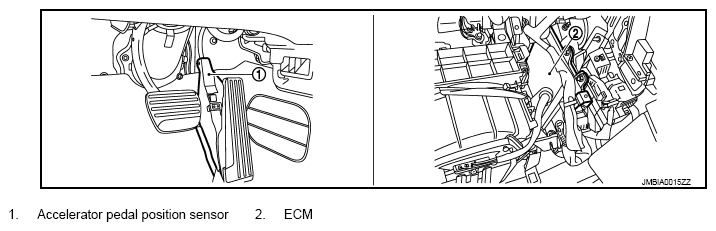

G07014704

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Air Conditioning Cut Control System Components Location (19 Of 21)

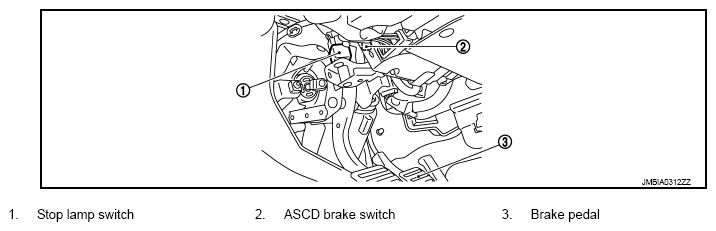

G07014705

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Air Conditioning Cut Control System Components Location (20 Of 21)

G07014706

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Air Conditioning Cut Control System Components Location (21 Of 21)

G07014707

Courtesy of NISSAN MOTOR CO., U.S.A.
