Component Parts Location

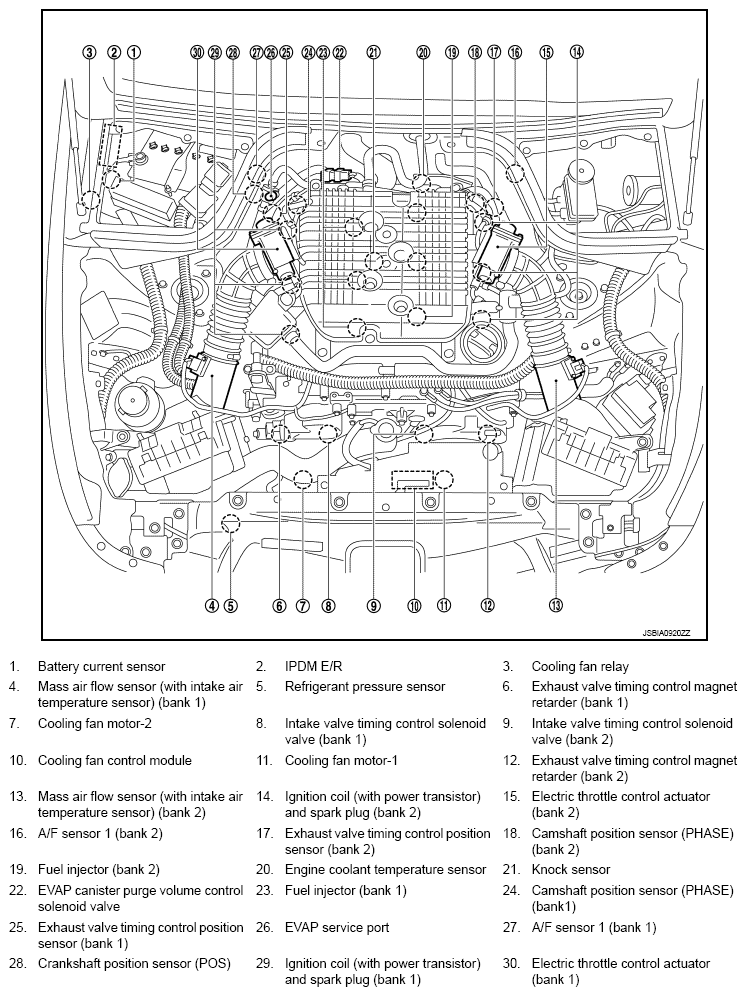

Fig 1: Identifying Electric Ignition System Components Location (1 Of 21)

G07014665

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Electric Ignition System Components Location (2 Of 21)

G07014666

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Electric Ignition System Components Location (3 Of 21)

G07014667

Courtesy of NISSAN MOTOR CO., U.S.A.

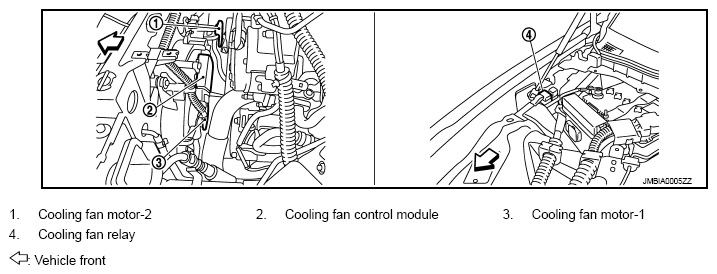

Fig 4: Identifying Electric Ignition System Components Location (4 Of 21)

G07014668

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Electric Ignition System Components Location (5 Of 21)

G05978207

Courtesy of NISSAN MOTOR CO., U.S.A.

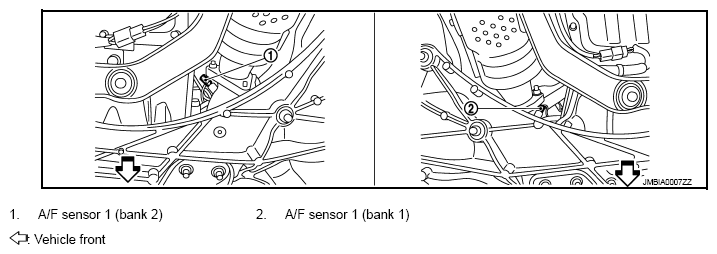

Fig 6: Identifying Electric Ignition System Components Location (6 Of 21)

G07014670

Courtesy of NISSAN MOTOR CO., U.S.A.

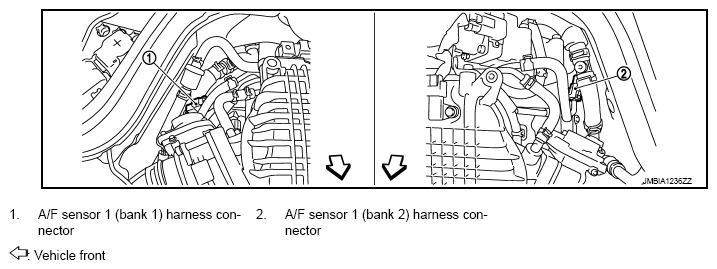

Fig 7: Identifying Electric Ignition System Components Location (7 Of 21)

G07014671

Courtesy of NISSAN MOTOR CO., U.S.A.

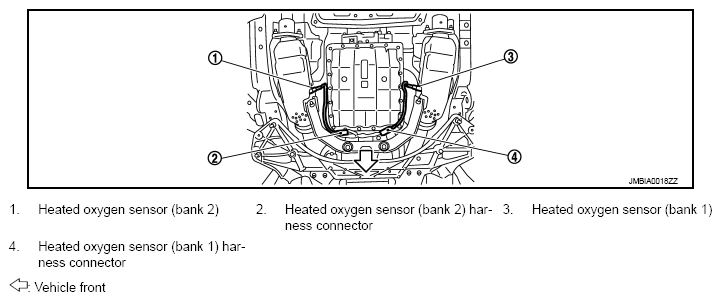

Fig 8: Identifying Electric Ignition System Components Location (8 Of 21)

G07014672

Courtesy of NISSAN MOTOR CO., U.S.A.

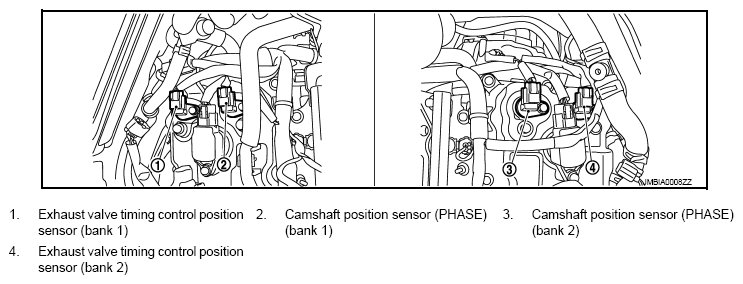

Fig 9: Identifying Electric Ignition System Components Location (9 Of 21)

G07014673

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Electric Ignition System Components Location (10 Of 21)

G07014674

Courtesy of NISSAN MOTOR CO., U.S.A.

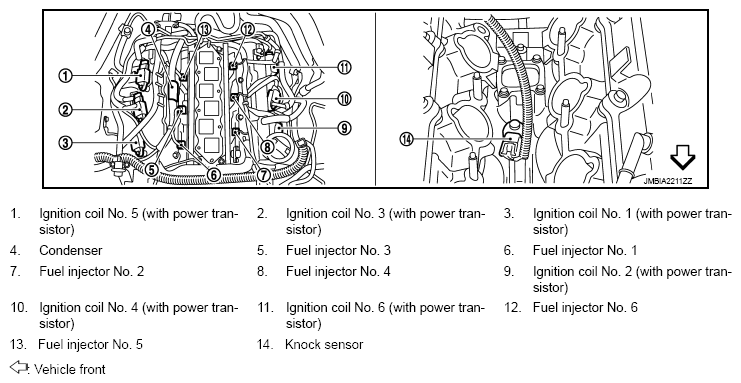

Fig 11: Identifying Electric Ignition System Components Location (11 Of 21)

G07014675

Courtesy of NISSAN MOTOR CO., U.S.A.

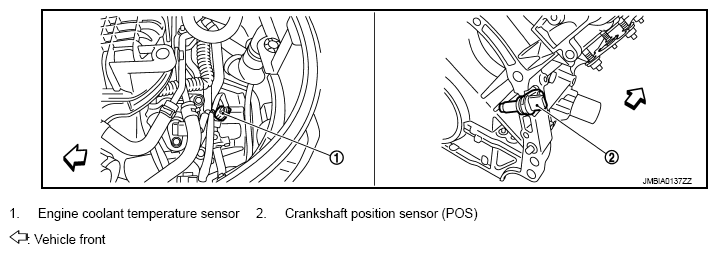

Fig 12: Identifying Electric Ignition System Components Location (12 Of 21)

G07014676

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Electric Ignition System Components Location (13 Of 21)

G07014677

Courtesy of NISSAN MOTOR CO., U.S.A.

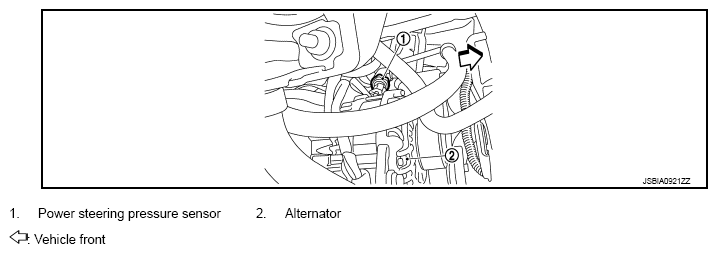

Fig 14: Identifying Electric Ignition System Components Location (14 Of 21)

G07014678

Courtesy of NISSAN MOTOR CO., U.S.A.

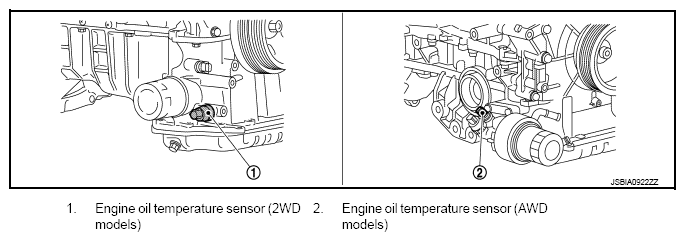

Fig 15: Identifying Electric Ignition System Components Location (15 Of 21)

G07014679

Courtesy of NISSAN MOTOR CO., U.S.A.

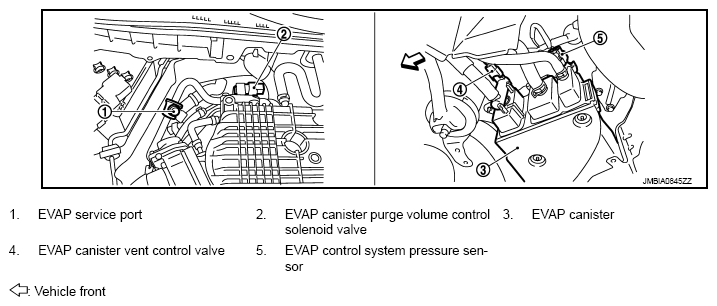

Fig 16: Identifying Electric Ignition System Components Location (16 Of 21)

G07014680

Courtesy of NISSAN MOTOR CO., U.S.A.

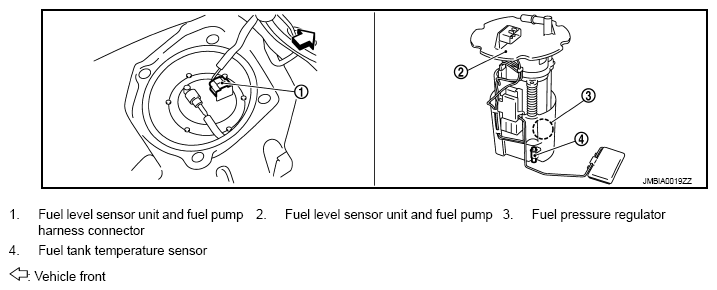

Fig 17: Identifying Electric Ignition System Components Location (17 Of 21)

G07014681

Courtesy of NISSAN MOTOR CO., U.S.A.

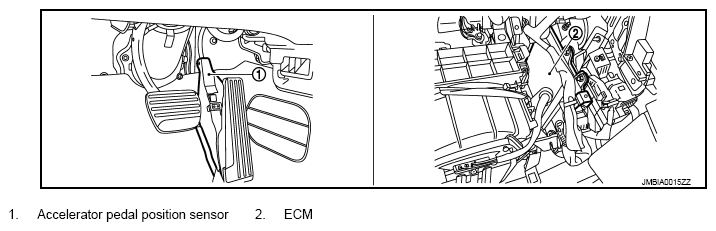

Fig 18: Identifying Electric Ignition System Components Location (18 Of 21)

G07014682

Courtesy of NISSAN MOTOR CO., U.S.A.

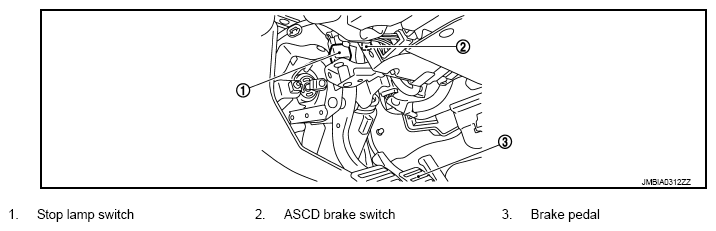

Fig 19: Identifying Electric Ignition System Components Location (19 Of 21)

G07014683

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Electric Ignition System Components Location (20 Of 21)

G07014684

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Electric Ignition System Components Location (21 Of 21)

G07014685

Courtesy of NISSAN MOTOR CO., U.S.A.
