Component Parts Location

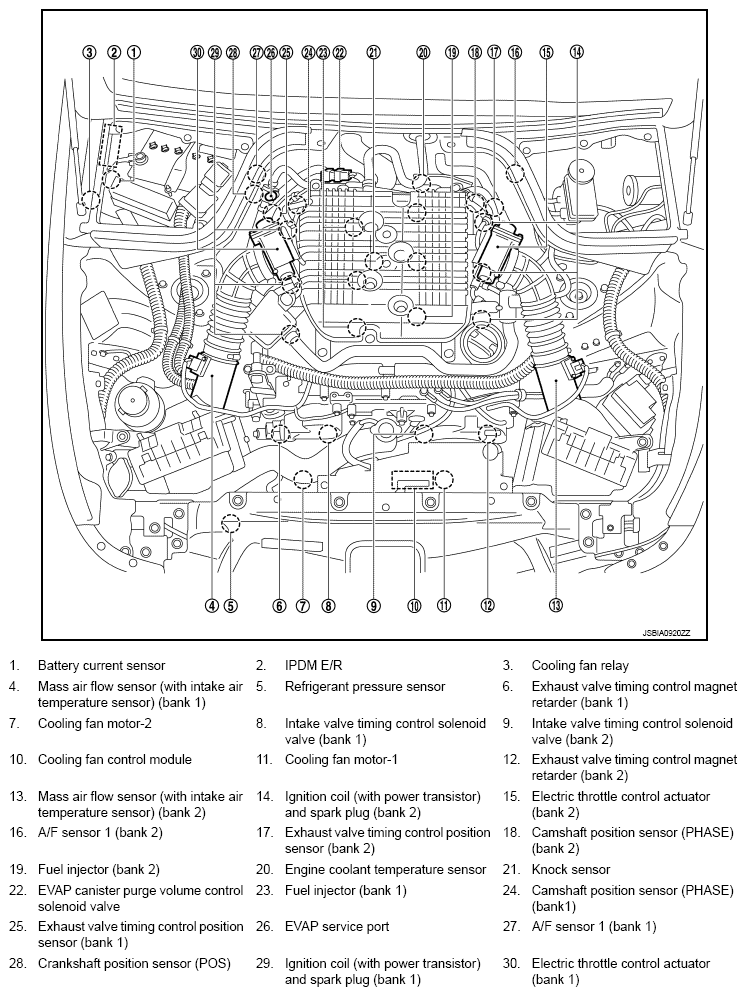

Fig 1: Identifying Engine Control System Components Location (1 Of 21)

G07014619

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine Control System Components Location (2 Of 21)

G07014620

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Engine Control System Components Location (3 Of 21)

G07014621

Courtesy of NISSAN MOTOR CO., U.S.A.

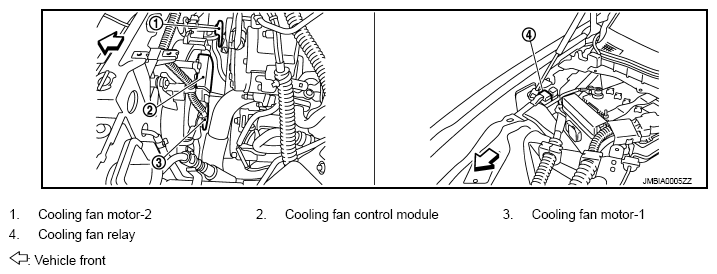

Fig 4: Identifying Engine Control System Components Location (4 Of 21)

G07014622

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Engine Control System Components Location (5 Of 21)

G05978207

Courtesy of NISSAN MOTOR CO., U.S.A.

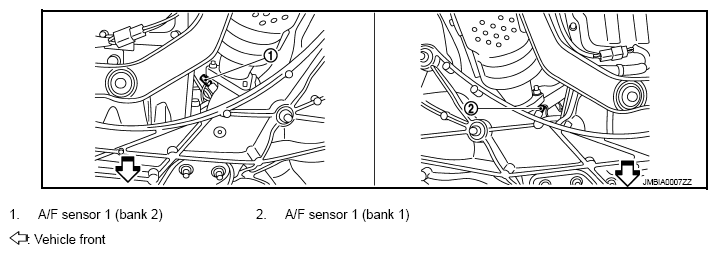

Fig 6: Identifying Engine Control System Components Location (6 Of 21)

G07014624

Courtesy of NISSAN MOTOR CO., U.S.A.

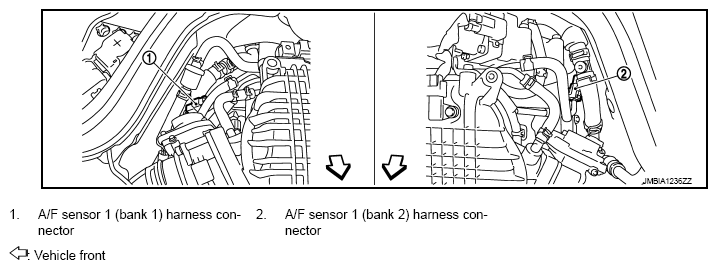

Fig 7: Identifying Engine Control System Components Location (7 Of 21)

G07014625

Courtesy of NISSAN MOTOR CO., U.S.A.

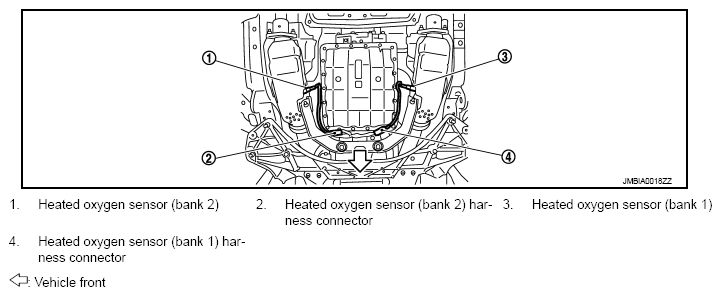

Fig 8: Identifying Engine Control System Components Location (8 Of 21)

G07014626

Courtesy of NISSAN MOTOR CO., U.S.A.

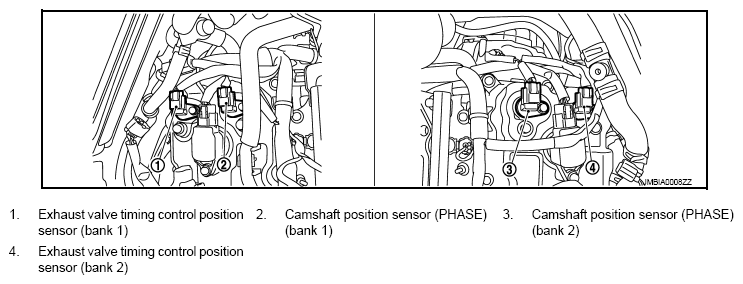

Fig 9: Identifying Engine Control System Components Location (9 Of 21)

G07014627

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Engine Control System Components Location (10 Of 21)

G07014628

Courtesy of NISSAN MOTOR CO., U.S.A.

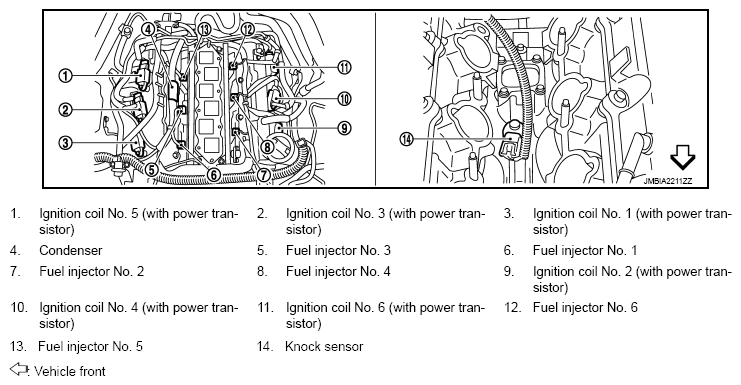

Fig 11: Identifying Engine Control System Components Location (11 Of 21)

G07014629

Courtesy of NISSAN MOTOR CO., U.S.A.

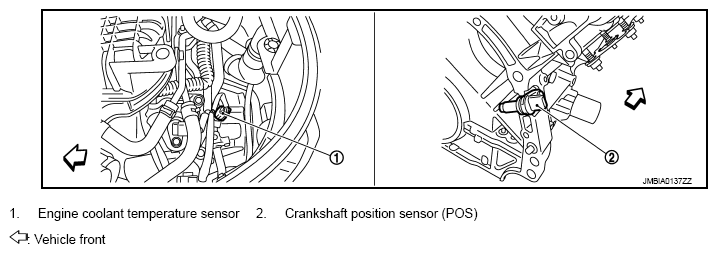

Fig 12: Identifying Engine Control System Components Location (12 Of 21)

G07014630

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Engine Control System Components Location (13 Of 21)

G07014631

Courtesy of NISSAN MOTOR CO., U.S.A.

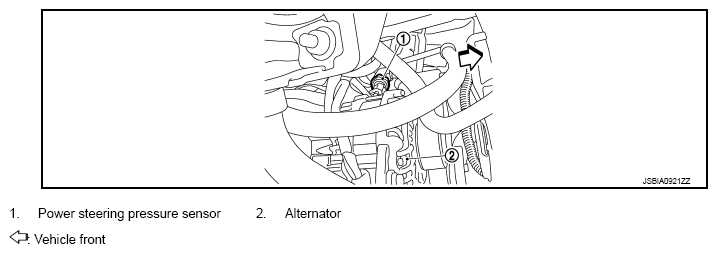

Fig 14: Identifying Engine Control System Components Location (14 Of 21)

G07014632

Courtesy of NISSAN MOTOR CO., U.S.A.

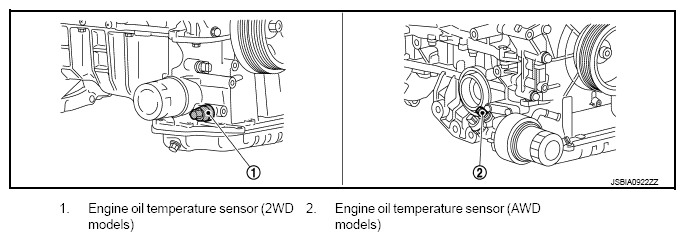

Fig 15: Identifying Engine Control System Components Location (15 Of 21)

G07014633

Courtesy of NISSAN MOTOR CO., U.S.A.

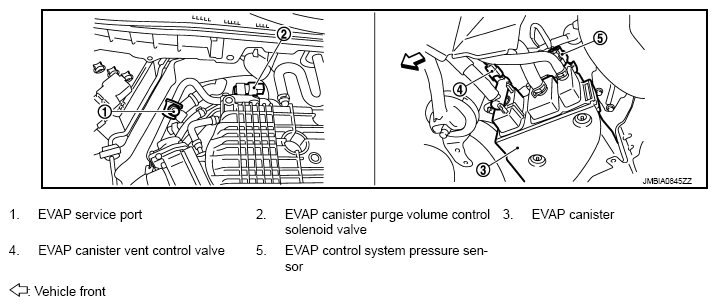

Fig 16: Identifying Engine Control System Components Location (16 Of 21)

G07014634

Courtesy of NISSAN MOTOR CO., U.S.A.

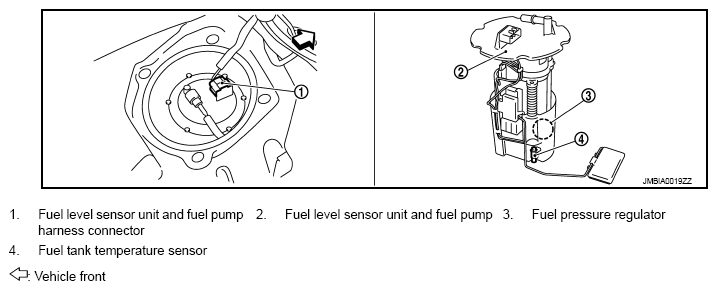

Fig 17: Identifying Engine Control System Components Location (17 Of 21)

G07014635

Courtesy of NISSAN MOTOR CO., U.S.A.

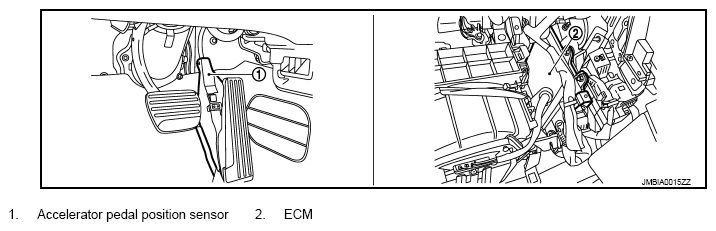

Fig 18: Identifying Engine Control System Components Location (18 Of 21)

G07014636

Courtesy of NISSAN MOTOR CO., U.S.A.

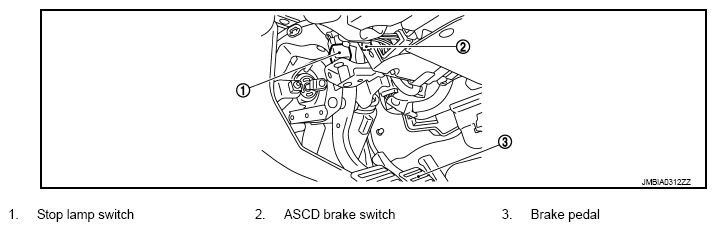

Fig 19: Identifying Engine Control System Components Location (19 Of 21)

G07014637

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Engine Control System Components Location (20 Of 21)

G07014638

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Engine Control System Components Location (21 Of 21)

G07014639

Courtesy of NISSAN MOTOR CO., U.S.A.
