Component Parts Location

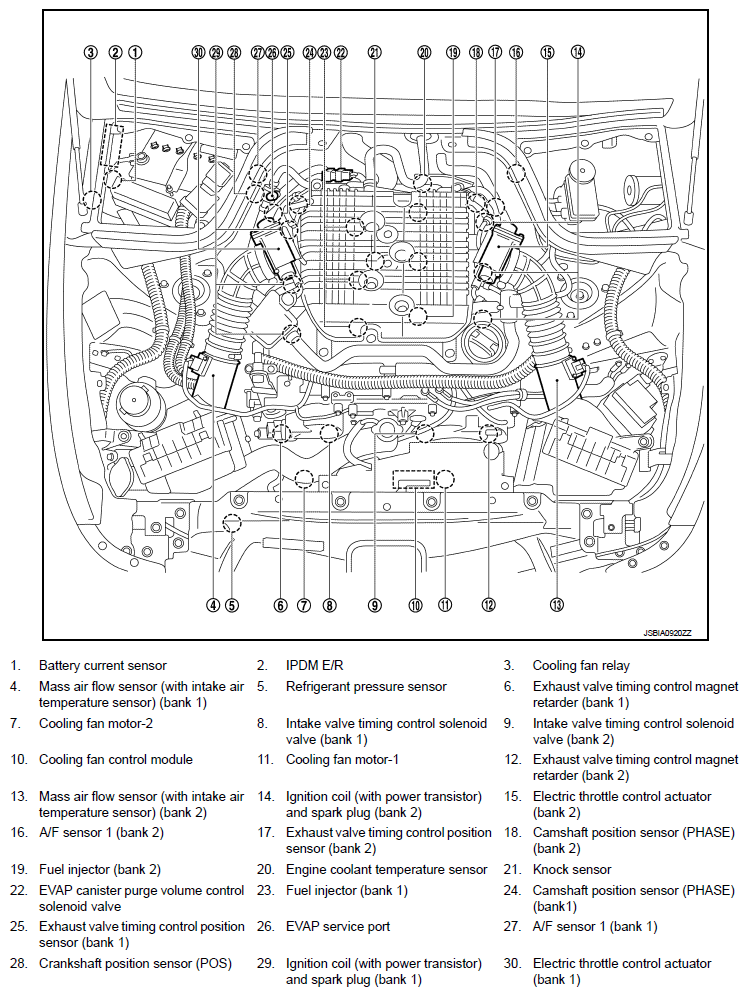

Fig 1: Identifying Exhaust Valve Timing Control System Components Location (1 Of 21)

G07014777

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Exhaust Valve Timing Control System Components Location (2 Of 21)

G07014778

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Exhaust Valve Timing Control System Components Location (3 Of 21)

G07014779

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Exhaust Valve Timing Control System Components Location (4 Of 21)

G07014780

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Exhaust Valve Timing Control System Components Location (5 Of 21)

G05978207

Courtesy of NISSAN MOTOR CO., U.S.A.

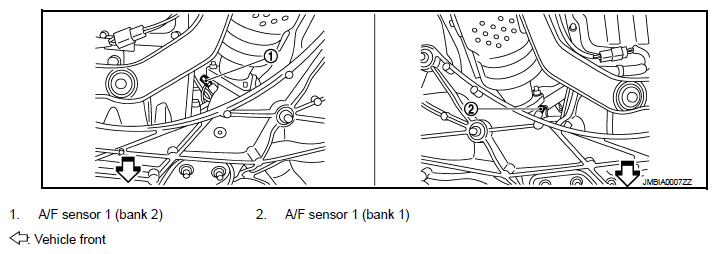

Fig 6: Identifying Exhaust Valve Timing Control System Components Location (6 Of 21)

G07014782

Courtesy of NISSAN MOTOR CO., U.S.A.

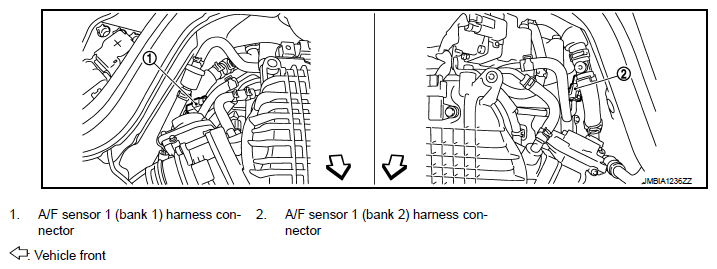

Fig 7: Identifying Exhaust Valve Timing Control System Components Location (7 Of 21)

G07014783

Courtesy of NISSAN MOTOR CO., U.S.A.

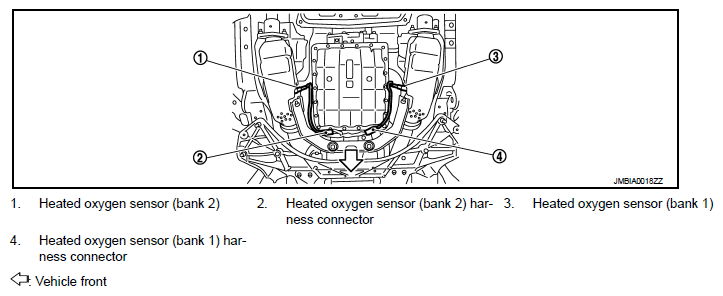

Fig 8: Identifying Exhaust Valve Timing Control System Components Location (8 Of 21)

G07014784

Courtesy of NISSAN MOTOR CO., U.S.A.

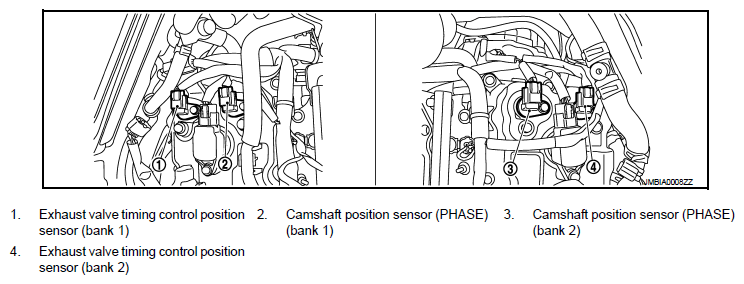

Fig 9: Identifying Exhaust Valve Timing Control System Components Location (9 Of 21)

G07014785

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Exhaust Valve Timing Control System Components Location (10 Of 21)

G07014786

Courtesy of NISSAN MOTOR CO., U.S.A.

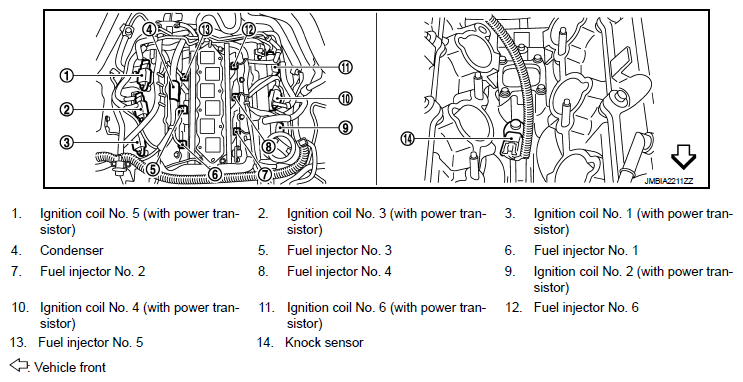

Fig 11: Identifying Exhaust Valve Timing Control System Components Location (11 Of 21)

G07014787

Courtesy of NISSAN MOTOR CO., U.S.A.

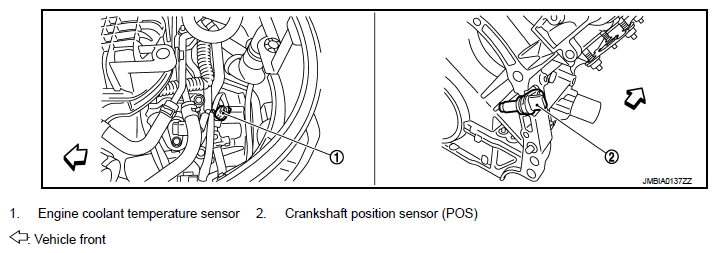

Fig 12: Identifying Exhaust Valve Timing Control System Components Location (12 Of 21)

G07014788

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Exhaust Valve Timing Control System Components Location (13 Of 21)

G07014789

Courtesy of NISSAN MOTOR CO., U.S.A.

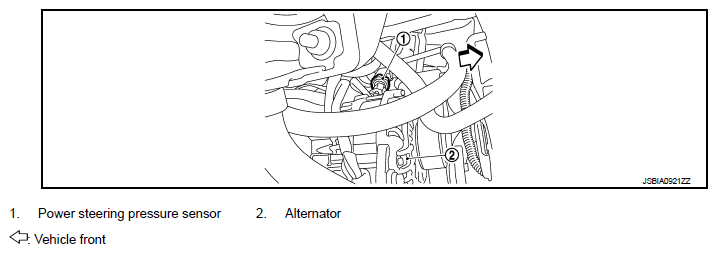

Fig 14: Identifying Exhaust Valve Timing Control System Components Location (14 Of 21)

G07014790

Courtesy of NISSAN MOTOR CO., U.S.A.

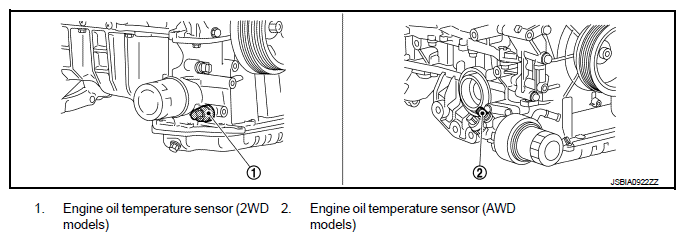

Fig 15: Identifying Exhaust Valve Timing Control System Components Location (15 Of 21)

G07014791

Courtesy of NISSAN MOTOR CO., U.S.A.

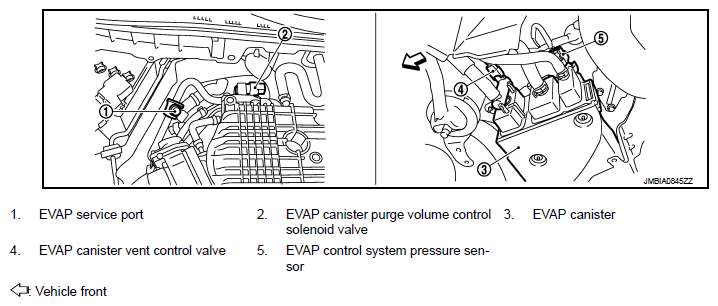

Fig 16: Identifying Exhaust Valve Timing Control System Components Location (16 Of 21)

G07014792

Courtesy of NISSAN MOTOR CO., U.S.A.

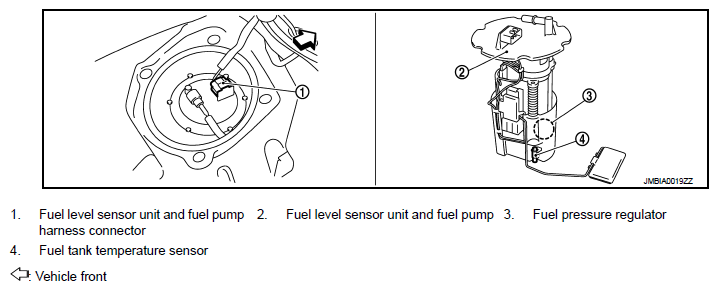

Fig 17: Identifying Exhaust Valve Timing Control System Components Location (17 Of 21)

G07014793

Courtesy of NISSAN MOTOR CO., U.S.A.

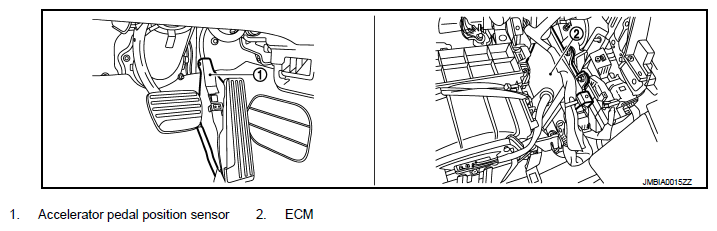

Fig 18: Identifying Exhaust Valve Timing Control System Components Location (18 Of 21)

G07014794

Courtesy of NISSAN MOTOR CO., U.S.A.

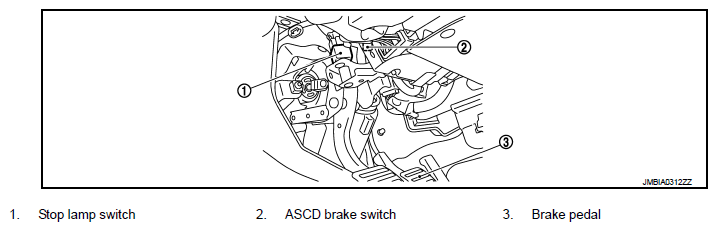

Fig 19: Identifying Exhaust Valve Timing Control System Components Location (19 Of 21)

G07014795

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Exhaust Valve Timing Control System Components Location (20 Of 21)

G07014796

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Exhaust Valve Timing Control System Components Location (21 Of 21)

G07014797

Courtesy of NISSAN MOTOR CO., U.S.A.
