Component Inspection (Cooling Fan Relay)

  1. CHECK COOLING FAN RELAY
    1. Turn ignition switch OFF.
    2. Remove cooling fan relay.
    3. Check the continuity between cooling fan relay terminals under the following conditions.
      CONTINUITY REFERENCE

      Terminals Conditions Continuity
      3 and 5 12 V direct current supply between terminals 1 and 2 Existed
      No current supply Not existed

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace cooling fan relay.

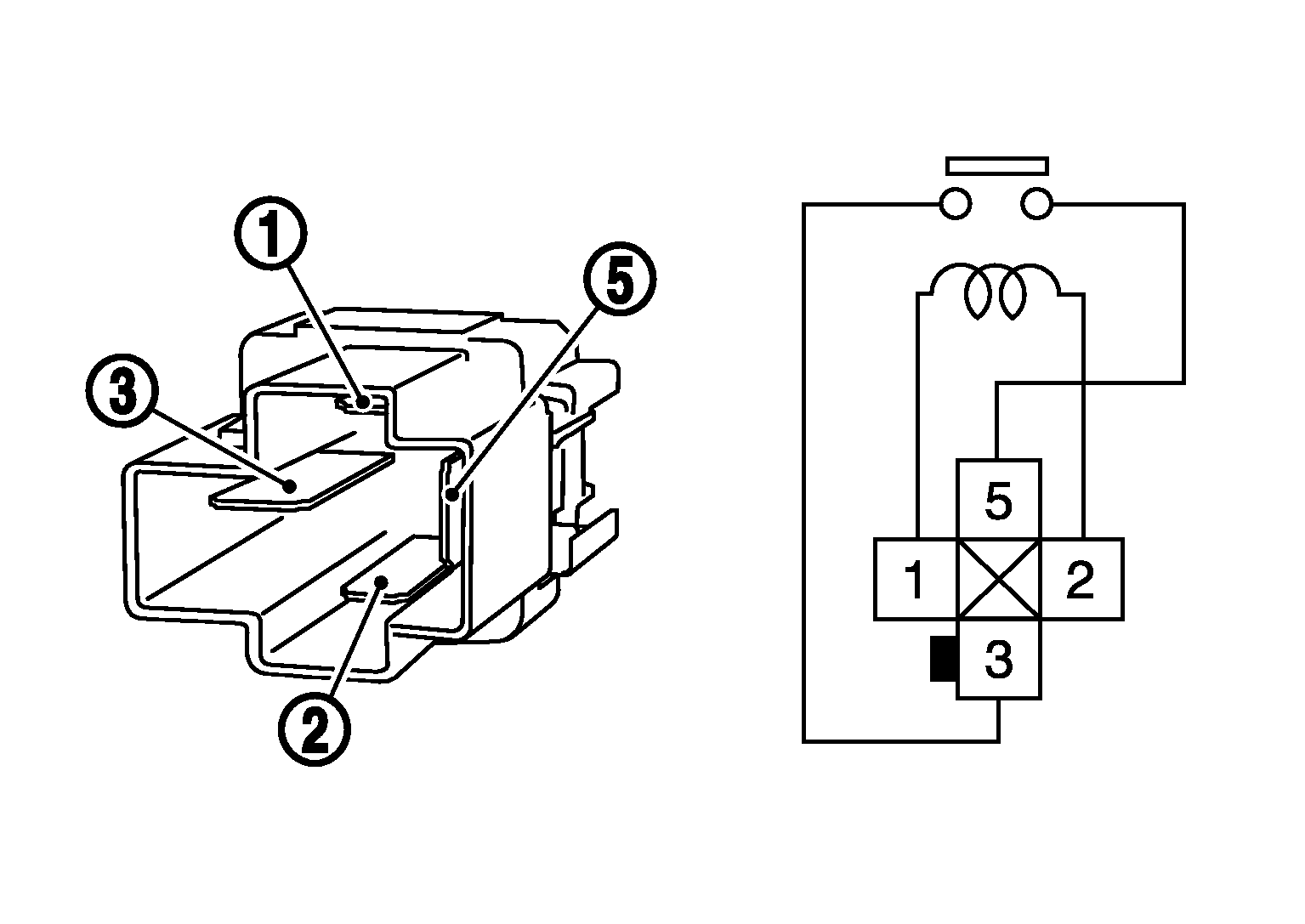

      Fig 1: Checking Continuity Between Cooling Fan Relay Terminals
      G07020169Courtesy of NISSAN MOTOR CO., U.S.A.
