Fuel Pressure Release

With CONSULT-III

1. Turn ignition switch ON.
2. Select ENGINE using CONSULT-III.
3. Perform "FUEL PRESSURE RELEASE" in "WORK SUPPORT" mode.
4. Start engine.
5. After engine stalls, crank it two or three times to release all fuel pressure.
6. Turn ignition switch OFF.

Without CONSULT-III

1. Remove fuel pump fuse (1) located in IPDM E/R (2).
2. Start engine.
3. After engine stalls, crank it two or three times to release all fuel pressure.
4. Turn ignition switch OFF.
5. Reinstall fuel pump fuse after servicing fuel system.

   INSPECTION END

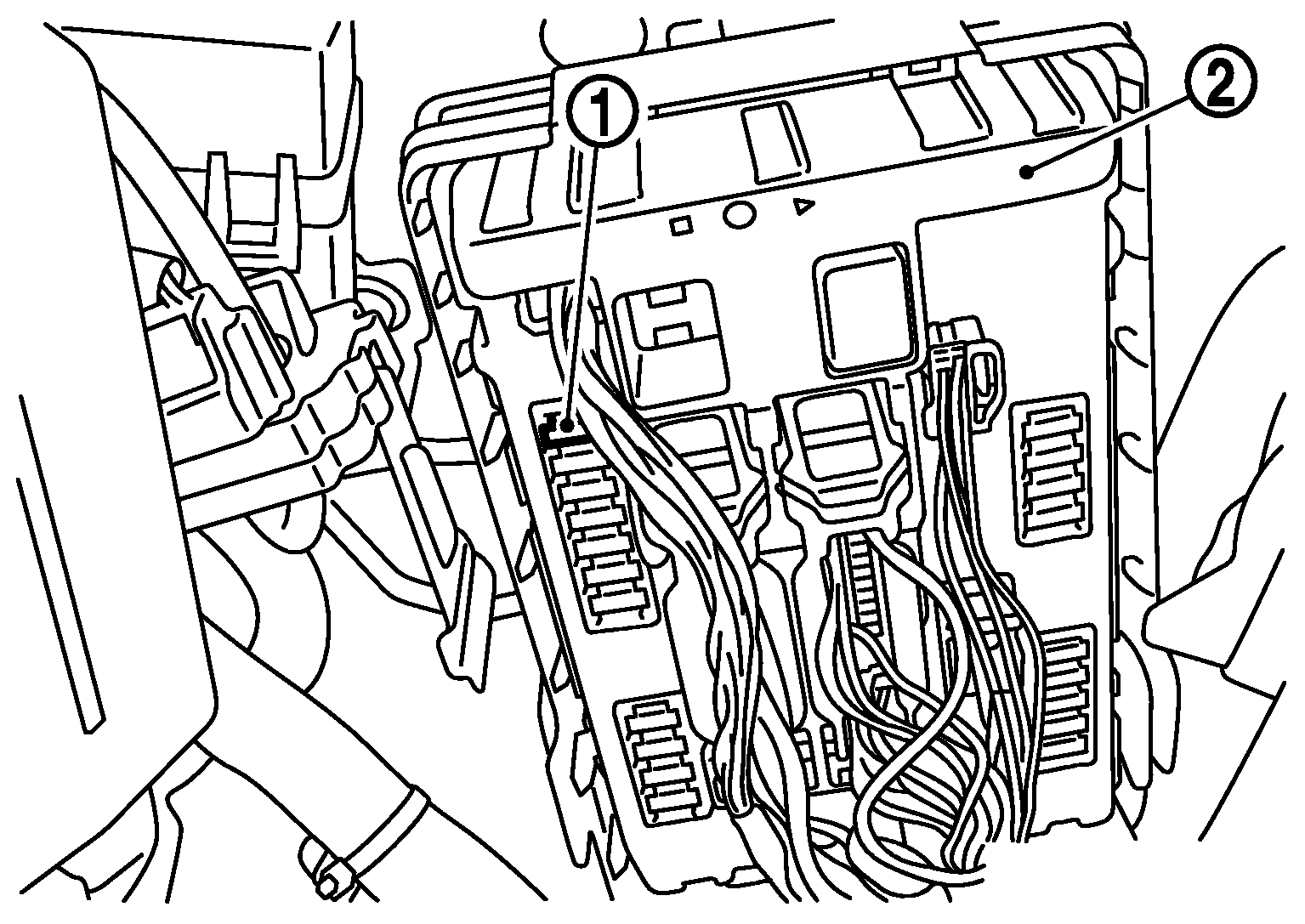

   Fig 1: Identifying Fuel Pump Fuse And IPDM E/R

   Courtesy of NISSAN MOTOR CO., U.S.A.
