Check Ignition Timing

  1. Attach timing light to loop wire as shown.

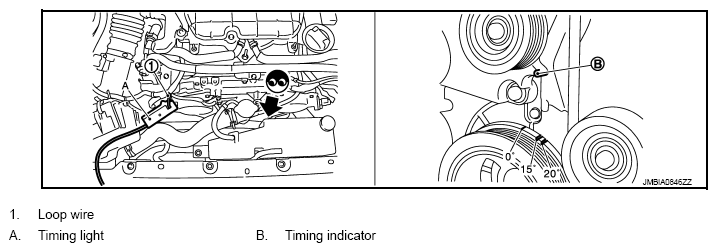

    Fig 1: Identifying Loop Wire, Timing Light And Indicator
    G07020195Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.
