Engine Control System - Introduction
>>
System Description
>>
System
>>
Engine Control System
>>
ENGINE CONTROL SYSTEM : System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ENGINE CONTROL SYSTEM : System Diagram

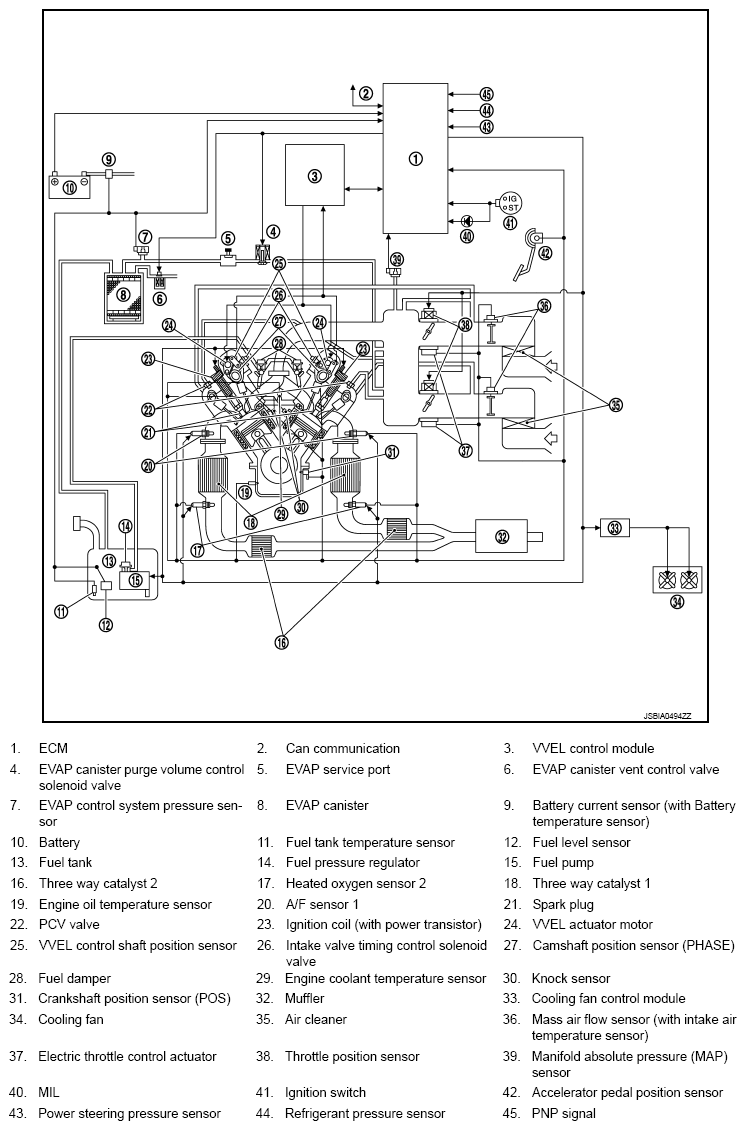

Fig 1: Engine Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
