System Diagram

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

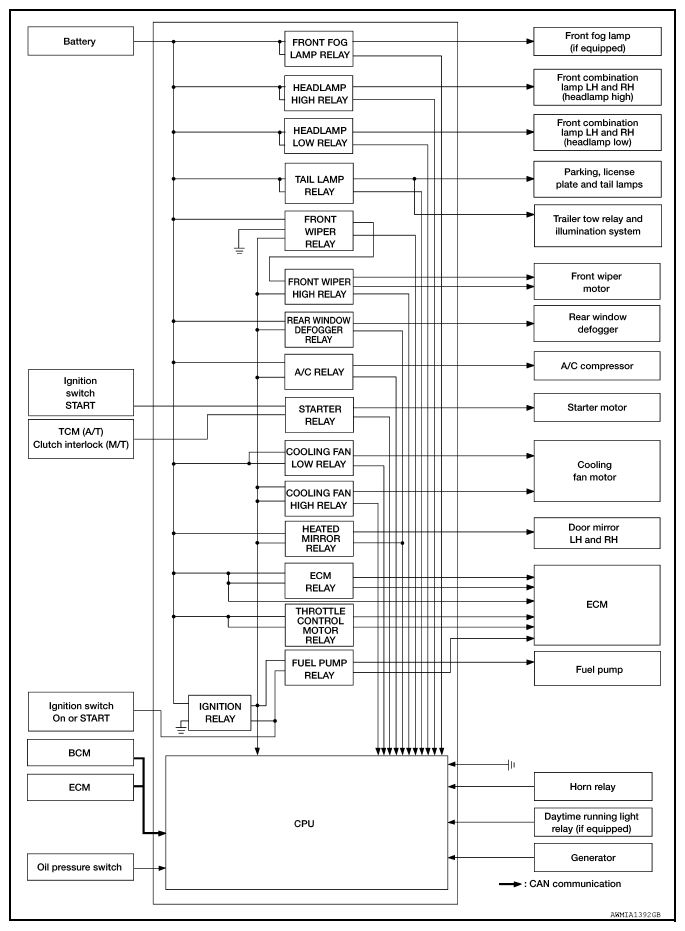

Fig 1: Relay Control System Diagram
G08714300Courtesy of NISSAN NORTH AMERICA, INC.
