INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION: System Diagram

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

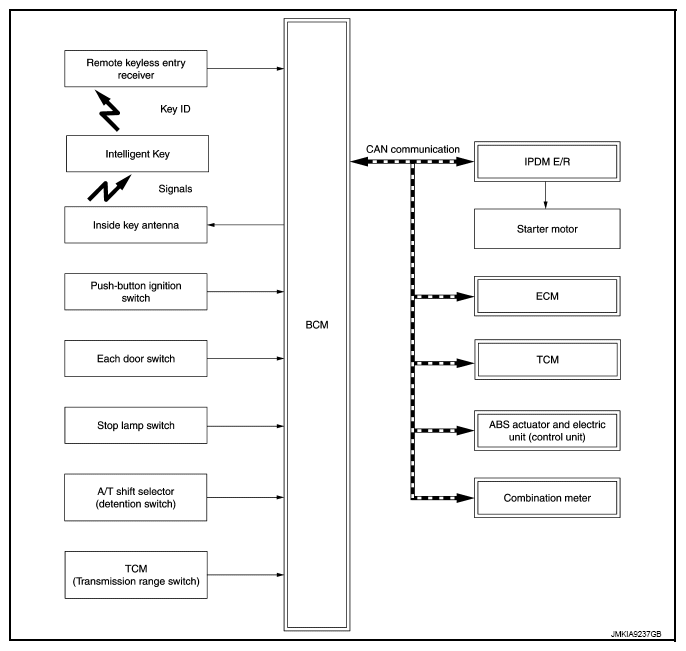

Fig 1: Identifying Intelligent Key System/Engine Start Function System Diagram
G08259161Courtesy of NISSAN NORTH AMERICA, INC.
