Fuel Pump Control Module

The fuel pump control module (FPCM) controls the discharging volume of the fuel pump by transmitting the FPCM control signals (Low/Mid/High) depending on driving conditions.

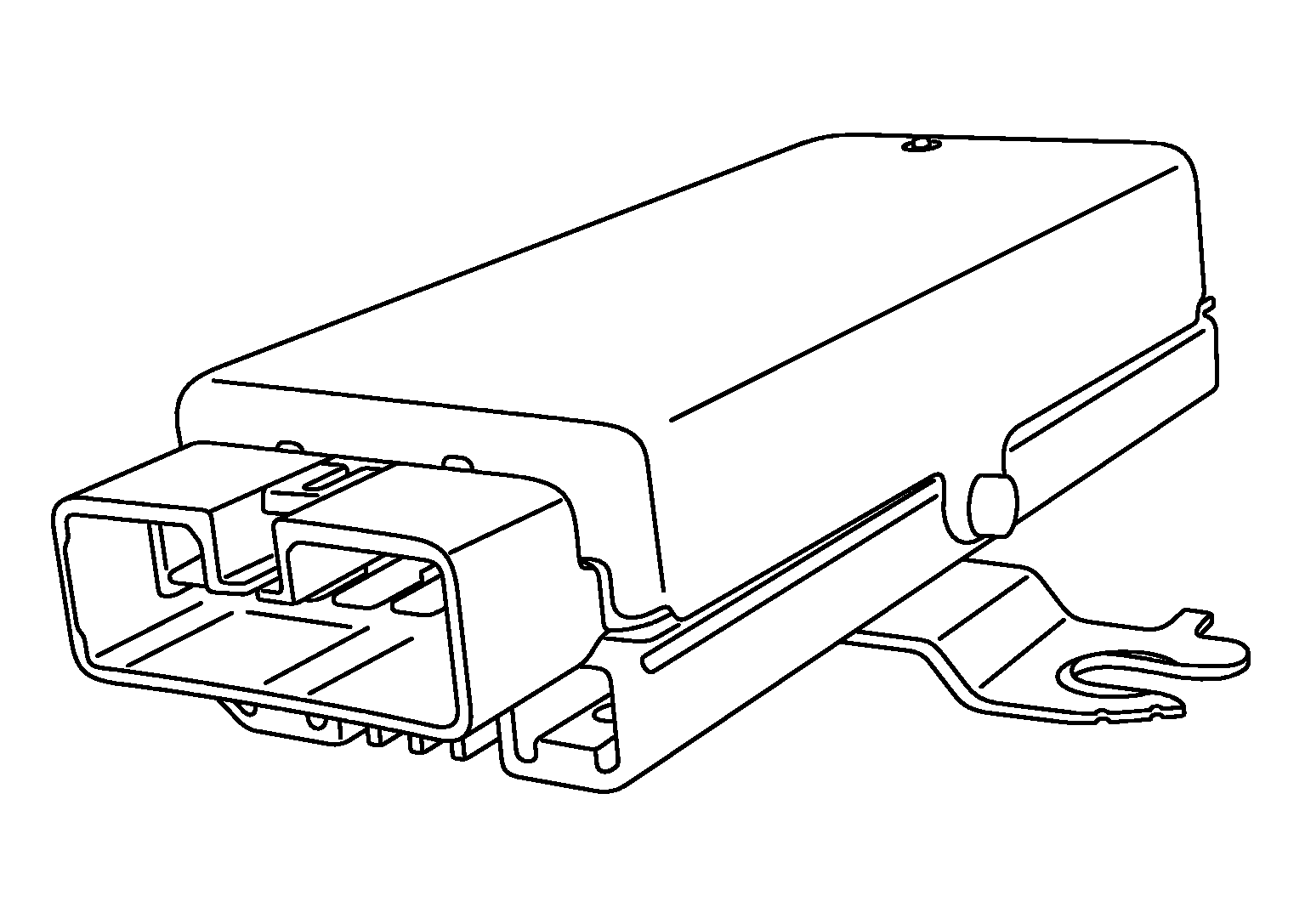

Fig 1: Identifying Fuel Pump Control Module

Courtesy of NISSAN MOTOR CO., U.S.A.
