Exploded View

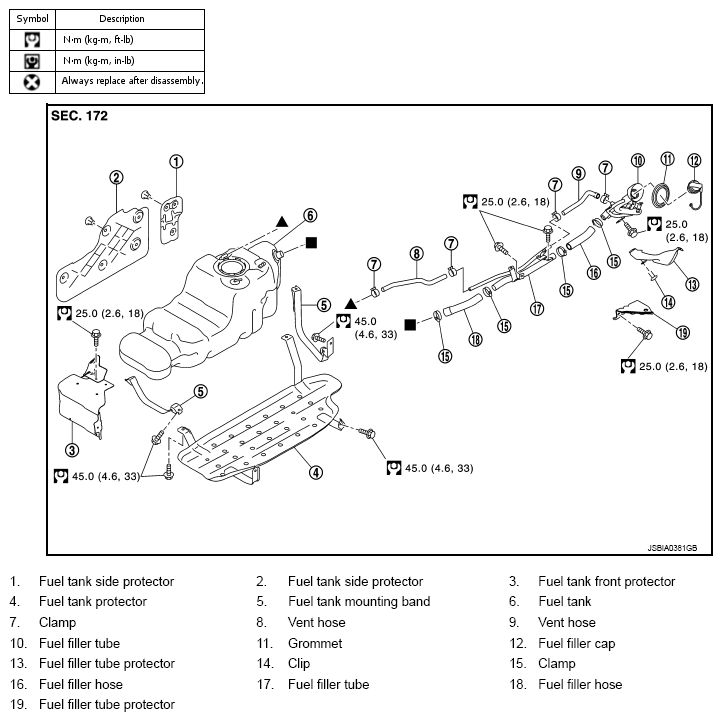

Fig 1: Fuel Tank Replacement Components With Torque Specifications
G07024972Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
