System - Basic Engine Control System

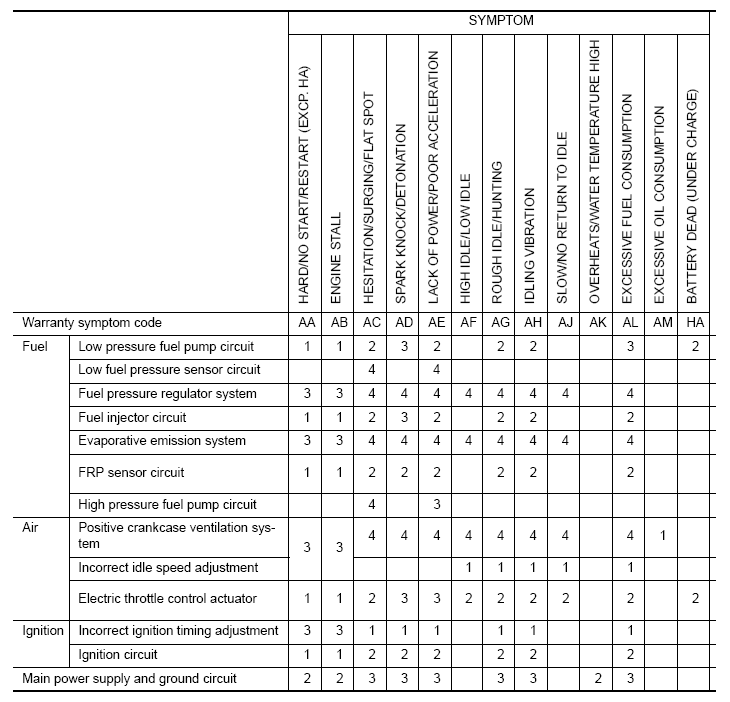

Fig 1: Basic Engine Control System Problem Symptoms Chart (1 Of 2)
G07026383Courtesy of NISSAN MOTOR CO., U.S.A.

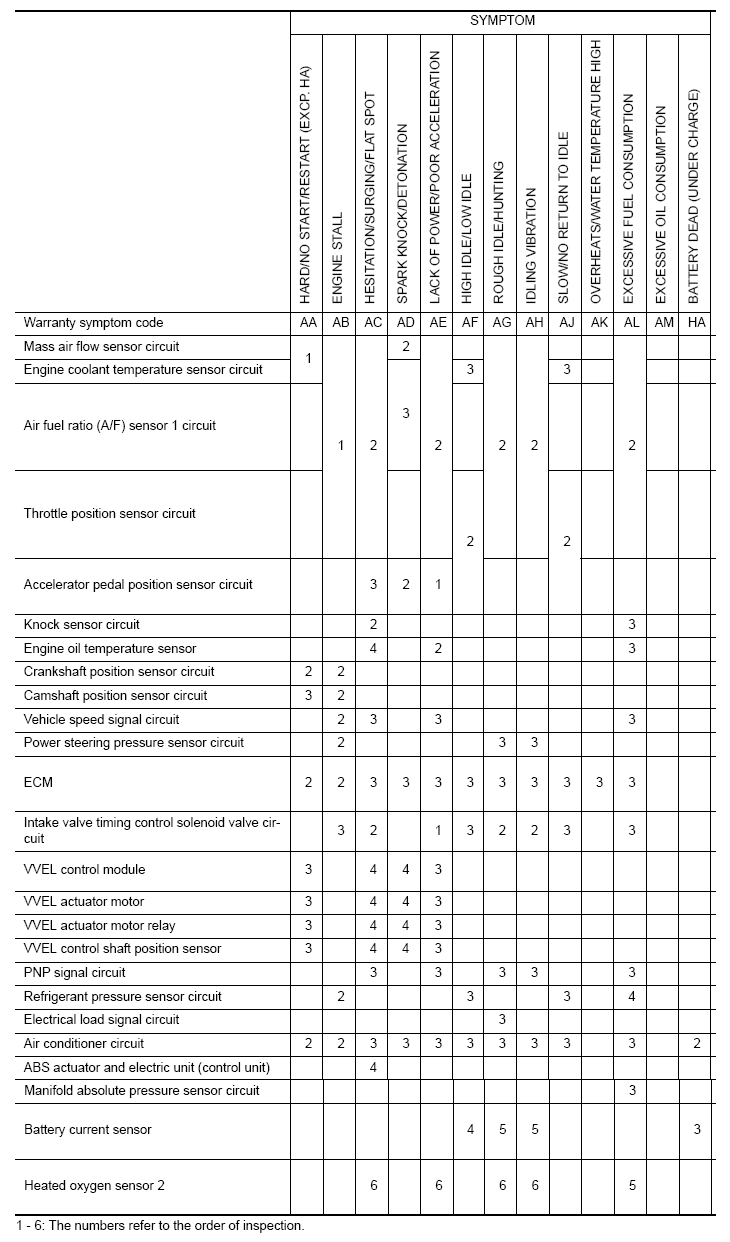

Fig 2: Basic Engine Control System Problem Symptoms Chart (2 Of 2)
G07026384Courtesy of NISSAN MOTOR CO., U.S.A.
