Removal and Installation: Removal

  1. Remove the battery and battery tray. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect ECM harness connectors (1) as shown in the figure.
  3. Remove ECM bracket bolts (A).
  4. Separate ECM (2) and ECM bracket (3).

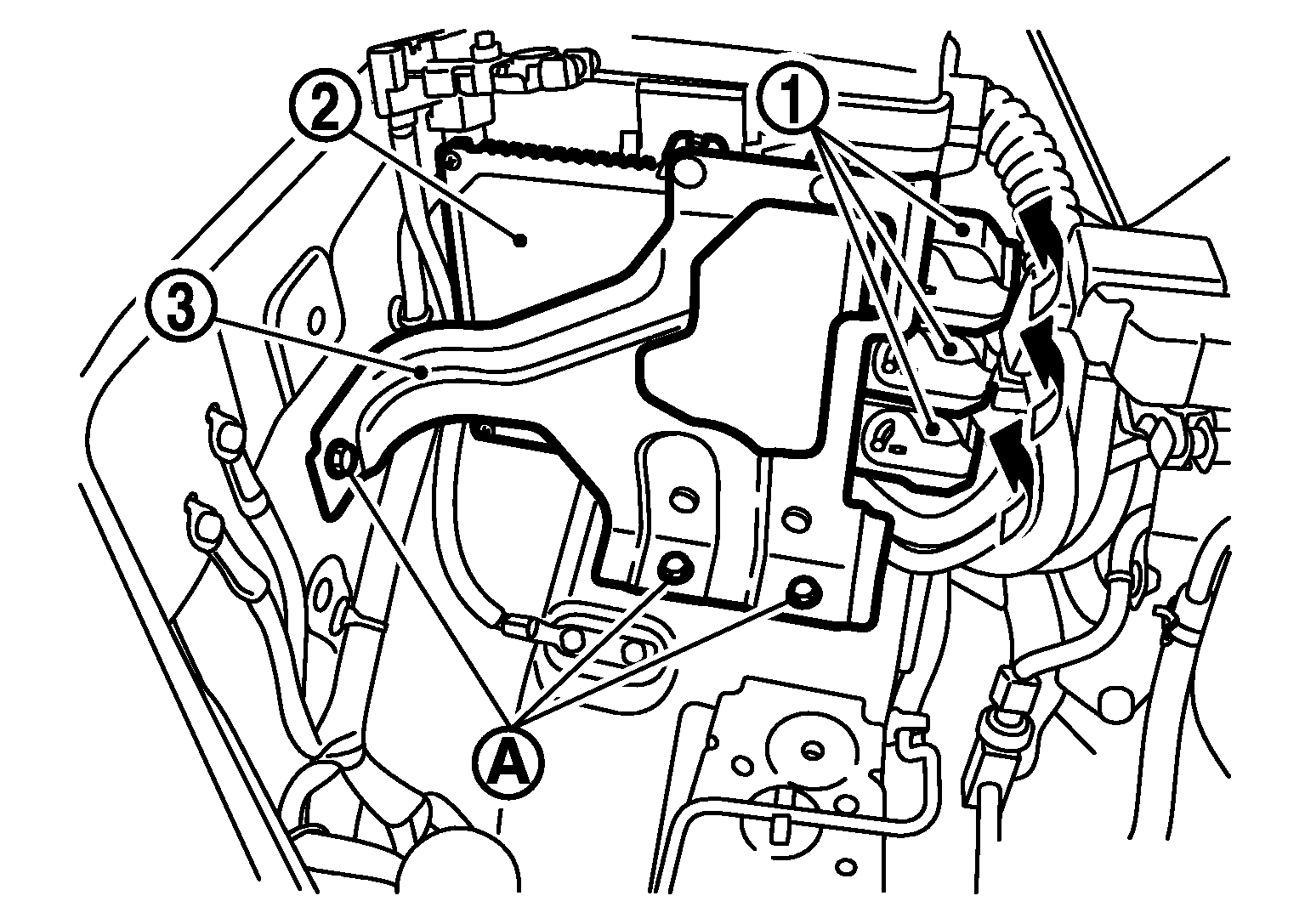

    Fig 1: Identifying ECM Bracket Bolts
    G07026393Courtesy of NISSAN MOTOR CO., U.S.A.
