Body Compartment

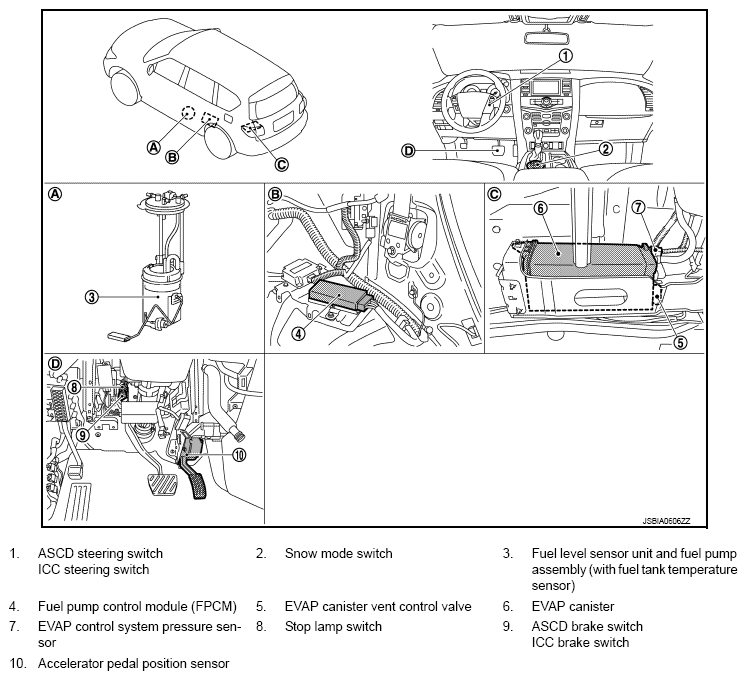

Fig 1: Identifying Body Compartment Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
