Engine Room Compartment

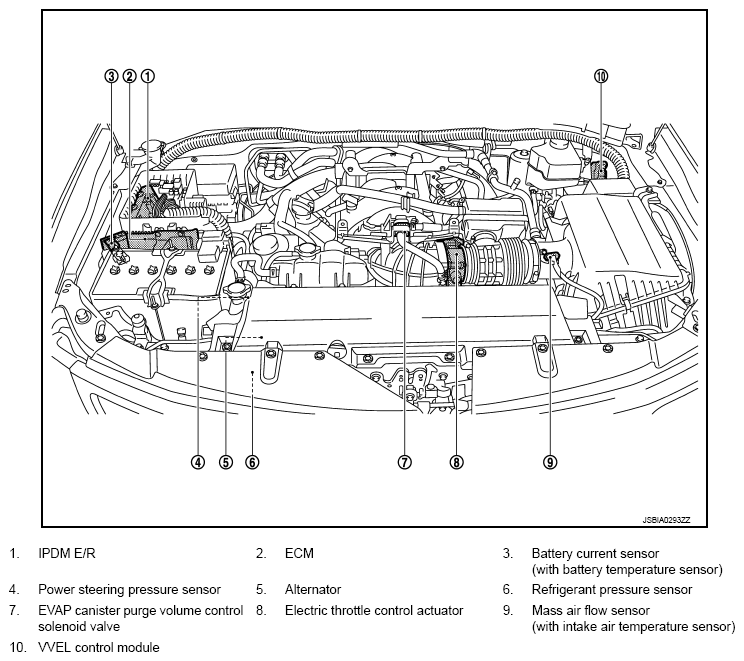

Fig 1: Identifying Engine Room Compartment Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
