Engine Control System - Introduction
>>
System Description
>>
Component Parts
>>
Component Parts Location
>>
Exhaust Compartment
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exhaust Compartment

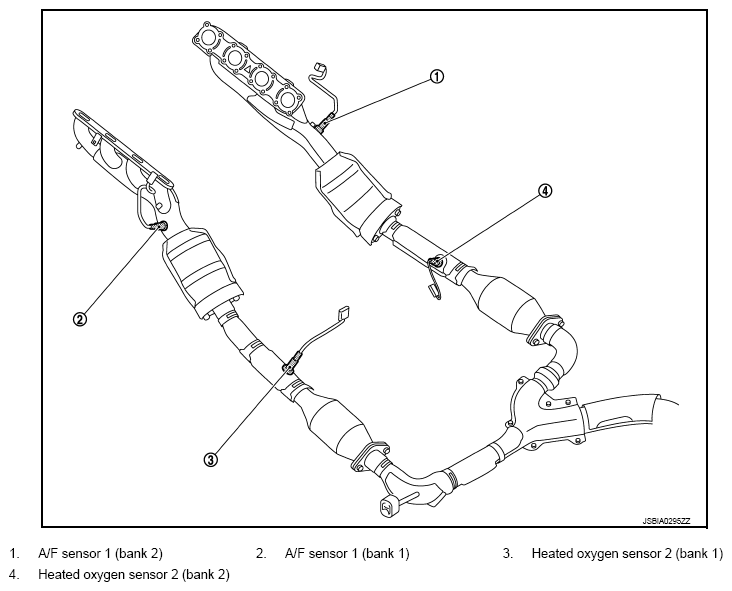

Fig 1: Identifying Exhaust Compartment Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
