AWD: Exploded View: Disassembly

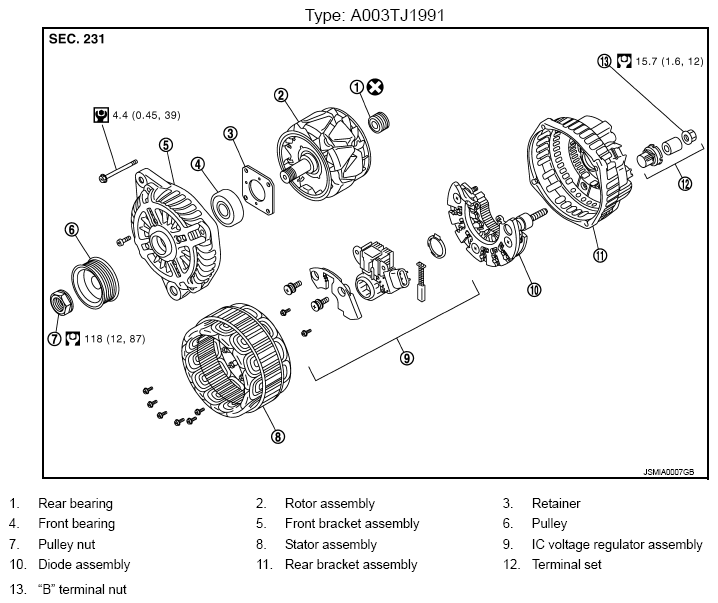

Fig 1: Disassembled View Of Alternator (AWD) With Torque Specifications
G08194954Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
