AWD: Exploded View

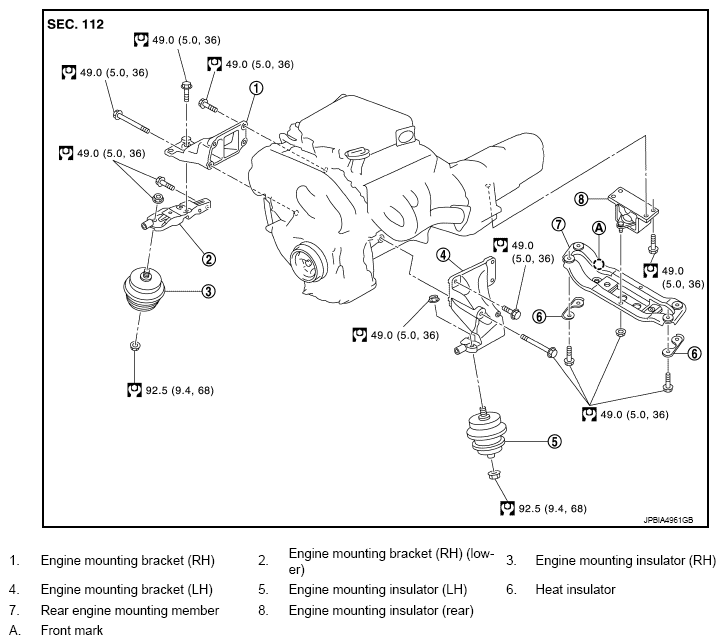

Fig 1: Exploded View Of Engine Assembly (AWD) With Torque Specifications
G08193381Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
