Component Inspection

  1. CHECK FUEL TANK TEMPERATURE SENSOR
    1. Turn ignition switch OFF.
    2. Disconnect "fuel level sensor unit and fuel pump (main)" harness connector.
    3. Remove fuel level sensor unit and fuel pump (main)
    4. Check resistance between "fuel level sensor unit and fuel pump (main)" terminals by heating with hot water as shown in the figure.
      Terminals Condition Resistance (kΩ)
      4 and 5 Temperature [°C (°F)] 20 (68) 2.3 - 2.7
      50 (122) 0.79 - 0.90

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace "fuel level sensor unit and fuel pump (main)".

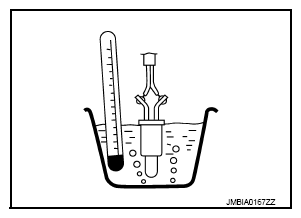

      Fig 1: Checking Fuel Tank Temperature Sensor
      G08193882Courtesy of NISSAN NORTH AMERICA, INC.
