Component Parts Location

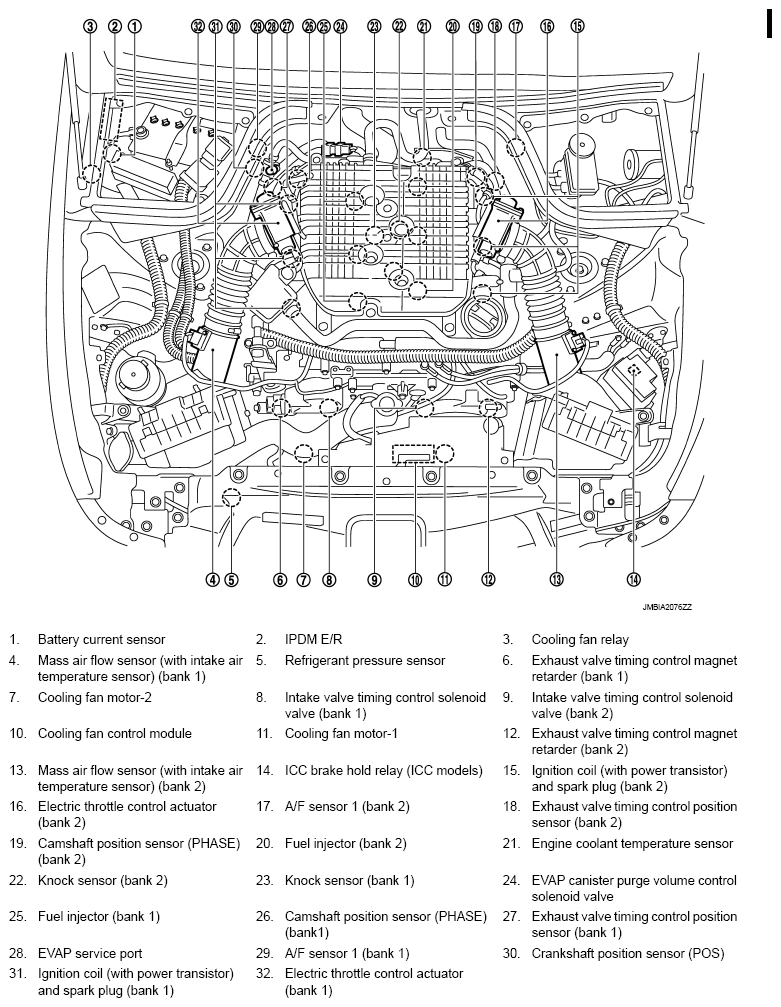

Fig 1: Evaporative Emission System Components Location (1 Of 20)

G08193737

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Evaporative Emission System Components Location (2 Of 20)

G08193738

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Evaporative Emission System Components Location (3 Of 20)

G08193739

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Evaporative Emission System Components Location (4 Of 20)

G08193740

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Evaporative Emission System Components Location (5 Of 20)

G05978207

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Evaporative Emission System Components Location (6 Of 20)

G08193742

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Evaporative Emission System Components Location (7 Of 20)

G08193743

Courtesy of NISSAN NORTH AMERICA, INC.

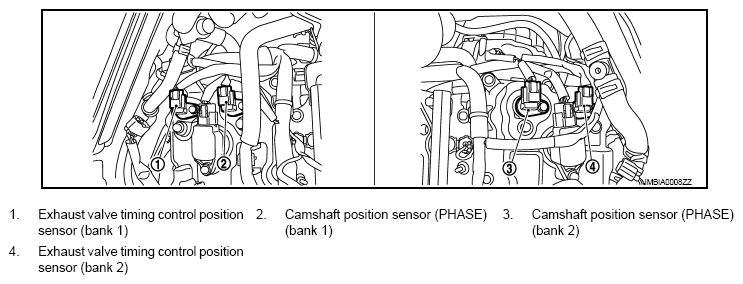

Fig 8: Evaporative Emission System Components Location (8 Of 20)

G08193744

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Evaporative Emission System Components Location (9 Of 20)

G08193745

Courtesy of NISSAN NORTH AMERICA, INC.

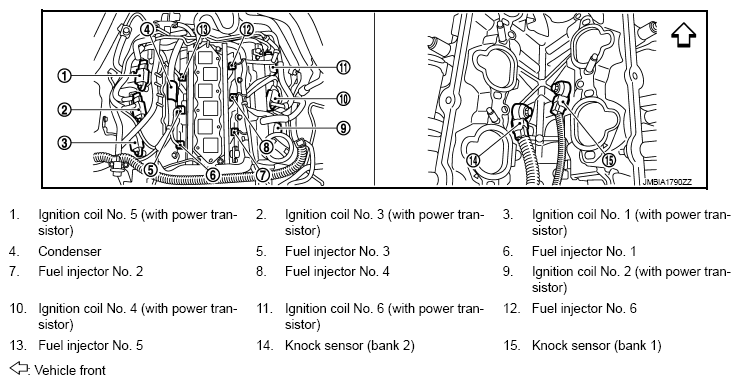

Fig 10: Evaporative Emission System Components Location (10 Of 20)

G08193746

Courtesy of NISSAN NORTH AMERICA, INC.

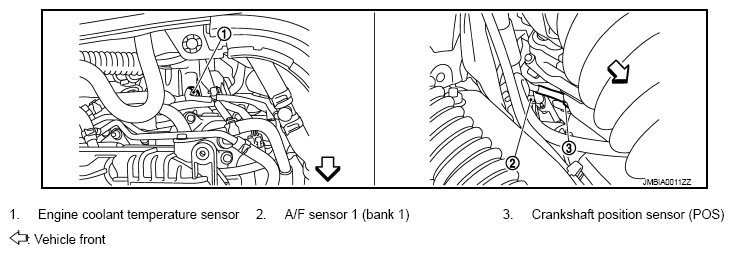

Fig 11: Evaporative Emission System Components Location (11 Of 20)

G08193747

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Evaporative Emission System Components Location (12 Of 20)

G08193748

Courtesy of NISSAN NORTH AMERICA, INC.

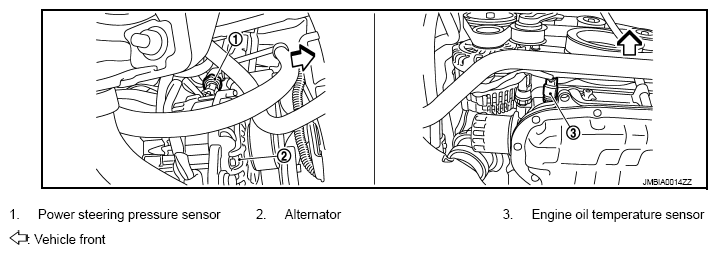

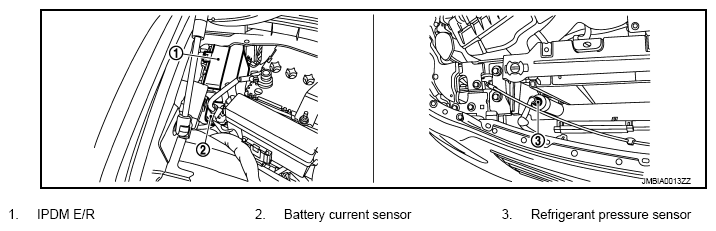

Fig 13: Evaporative Emission System Components Location (13 Of 20)

G08193749

Courtesy of NISSAN NORTH AMERICA, INC.

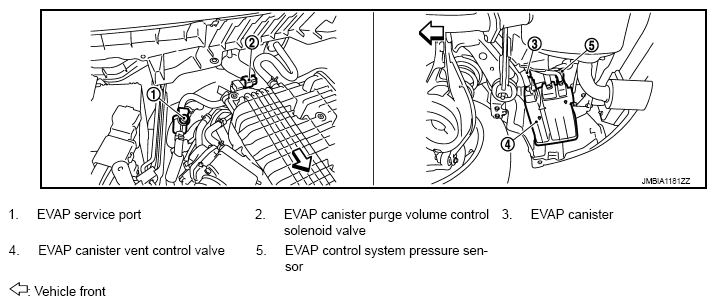

Fig 14: Evaporative Emission System Components Location (14 Of 20)

G08193750

Courtesy of NISSAN NORTH AMERICA, INC.

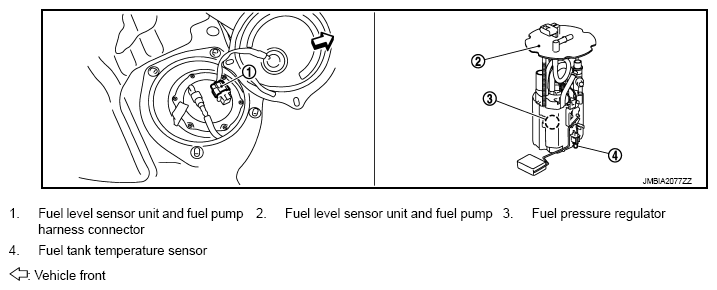

Fig 15: Evaporative Emission System Components Location (15 Of 20)

G08193751

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Evaporative Emission System Components Location (16 Of 20)

G08193752

Courtesy of NISSAN NORTH AMERICA, INC.

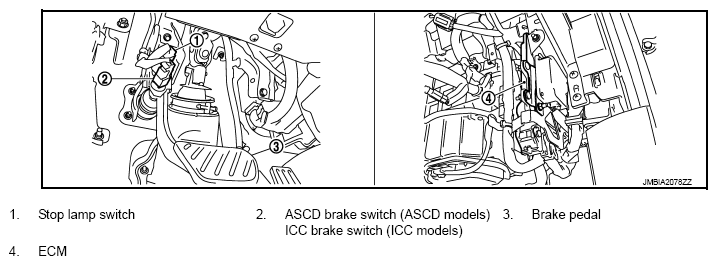

Fig 17: Evaporative Emission System Components Location (17 Of 20)

G08193753

Courtesy of NISSAN NORTH AMERICA, INC.

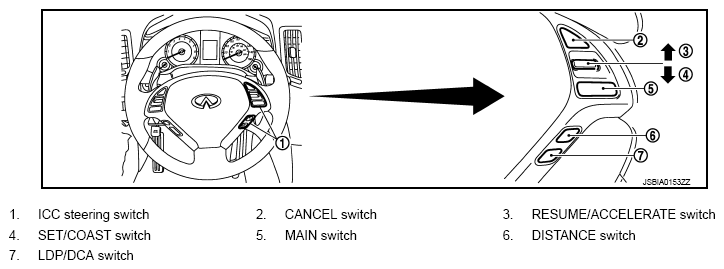

Fig 18: Evaporative Emission System Components Location (18 Of 20)

G08193754

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Evaporative Emission System Components Location (19 Of 20)

G08193755

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Evaporative Emission System Components Location (20 Of 20)

G08193756

Courtesy of NISSAN NORTH AMERICA, INC.
