2WD Models

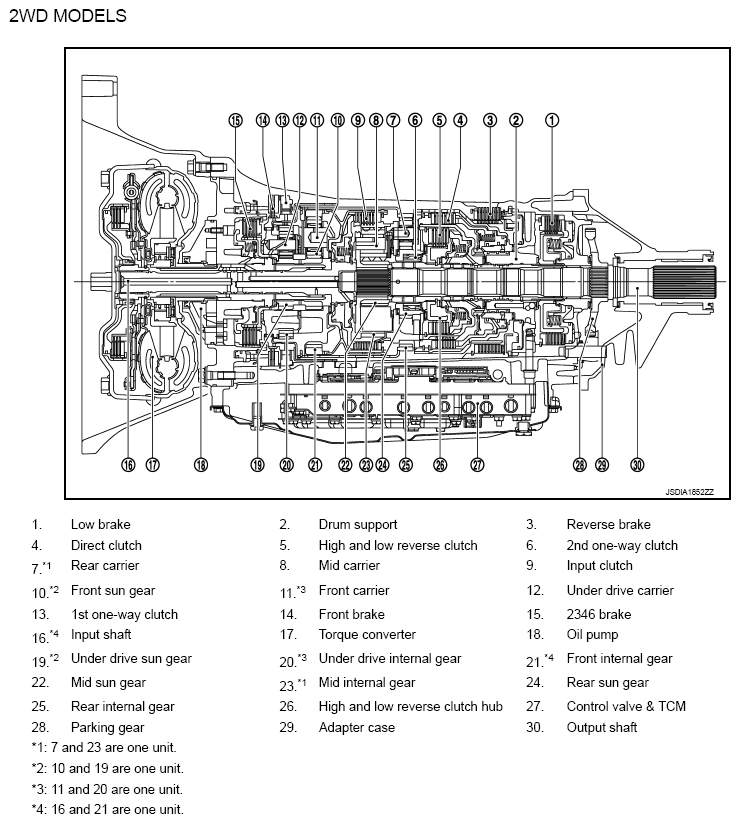

Fig 1: Cross-Sectional View Of (2WD Models) Shift Mechanism (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
