2WD: Exploded View

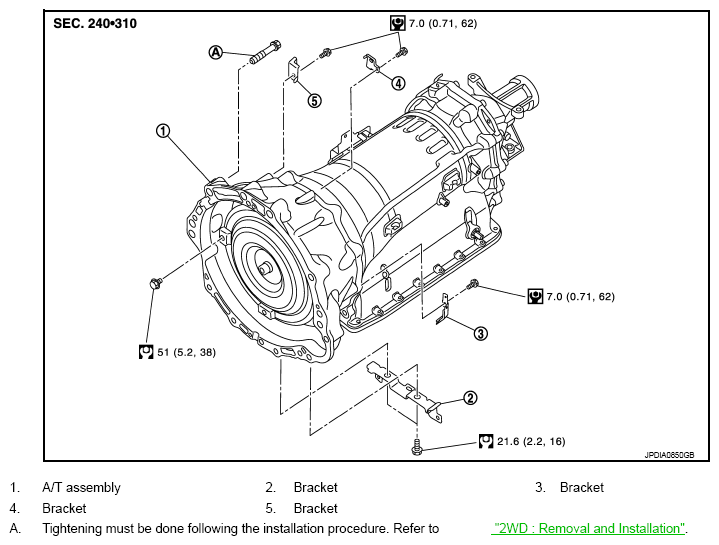

Fig 1: A/T Assembly, Bracket And Bolts With Torque Specifications (2WD)
G08197183Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
