- Install needle bearing to main shaft.
CAUTION:
Apply transfer fluid to the periphery of needle bearing.
- Install sprocket to main shaft.

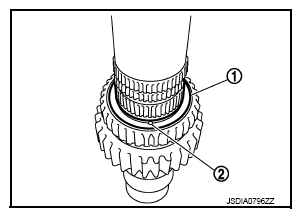

- Install spacer (1) and steel ball (2) to main shaft.
CAUTION:
Be careful not to drop the steel ball.
- Install snap ring to main shaft.
CAUTION:
Never reuse snap ring.
Courtesy of NISSAN NORTH AMERICA, INC.

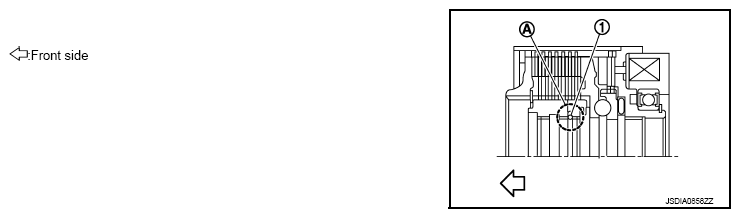

- Install circlip (1) to notch (A) of the electric controlled coupling.
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Never install the circlip to the notches other than notch (A).
- Never install the circlip from the electric controlled coupling rear side.
- Never reduce the outer diameter of circlip to less than 43.2 mm (1.701 in).
- Never damage electric control coupling spline, bush, etc.
- Never reuse circlip.
- Install electric controlled coupling to main shaft.
CAUTION:
Securely insert it until locked.

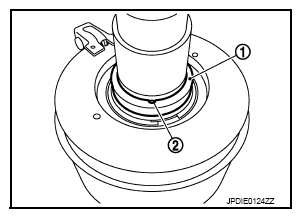

- Install spacer (1) and steel ball (2) to main shaft.
CAUTION:
Be careful not to drop the steel ball.
Courtesy of NISSAN NORTH AMERICA, INC.

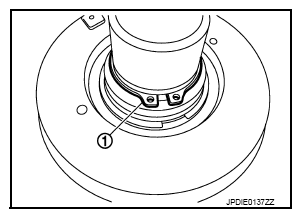

- Install snap ring (1) to main shaft.
CAUTION:
Never reuse snap ring.
- Install main shaft assembly to rear case, then install front case and rear case. Refer to
"ASSEMBLY ".
