Component Parts Location

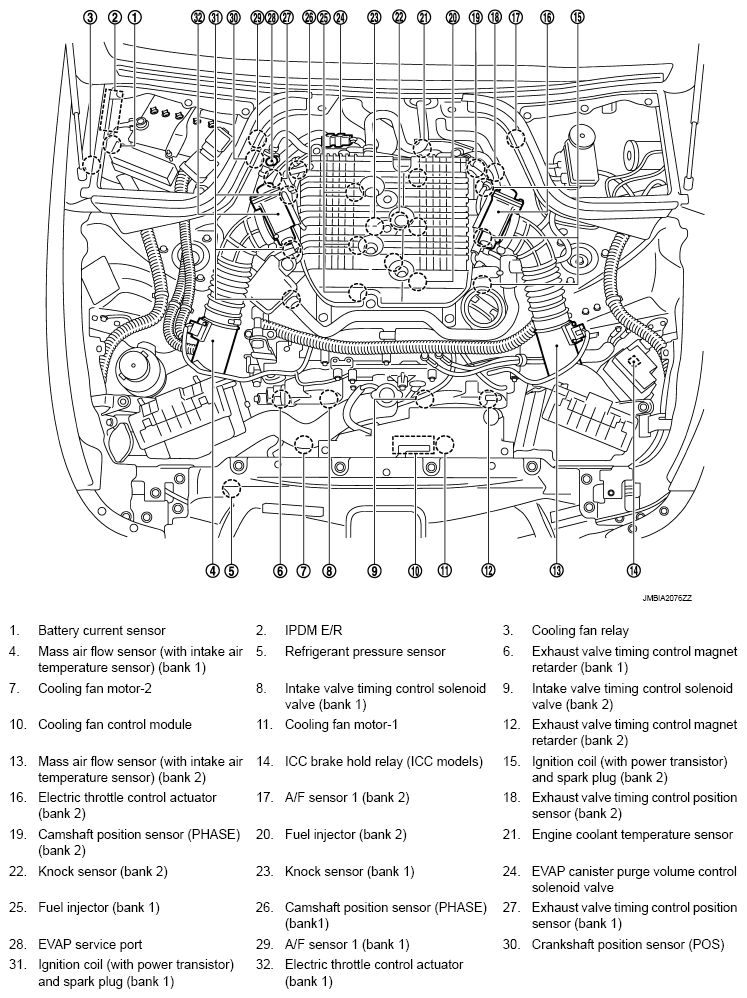

Fig 1: Air Conditioning Cut Control Components Location (1 Of 20)

G08193673

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Air Conditioning Cut Control Components Location (2 Of 20)

G08193674

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Air Conditioning Cut Control Components Location (3 Of 20)

G08193675

Courtesy of NISSAN NORTH AMERICA, INC.

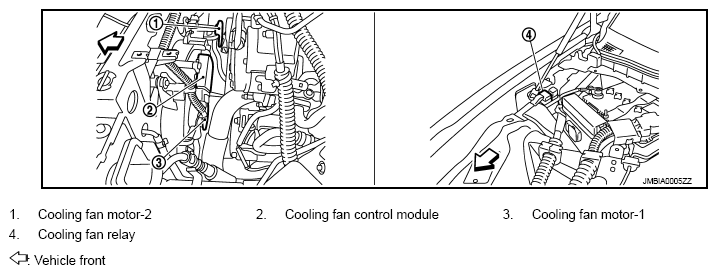

Fig 4: Air Conditioning Cut Control Components Location (4 Of 20)

G08193676

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Air Conditioning Cut Control Components Location (5 Of 20)

G05978207

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Air Conditioning Cut Control Components Location (6 Of 20)

G08193678

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Air Conditioning Cut Control Components Location (7 Of 20)

G08193679

Courtesy of NISSAN NORTH AMERICA, INC.

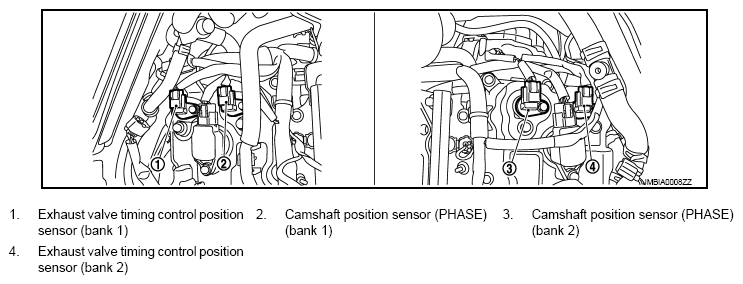

Fig 8: Air Conditioning Cut Control Components Location (8 Of 20)

G08193680

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Air Conditioning Cut Control Components Location (9 Of 20)

G08193681

Courtesy of NISSAN NORTH AMERICA, INC.

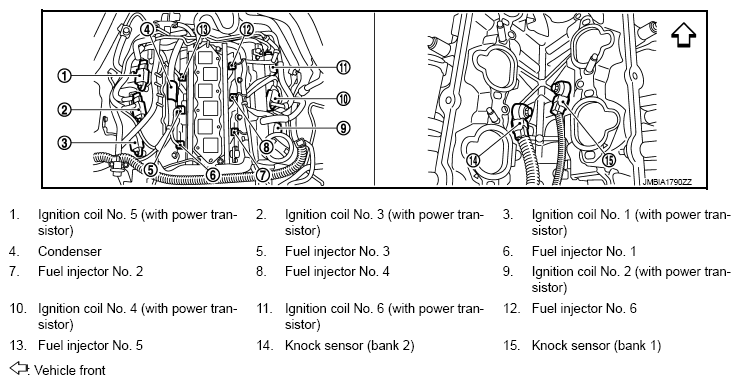

Fig 10: Air Conditioning Cut Control Components Location (10 Of 20)

G08193682

Courtesy of NISSAN NORTH AMERICA, INC.

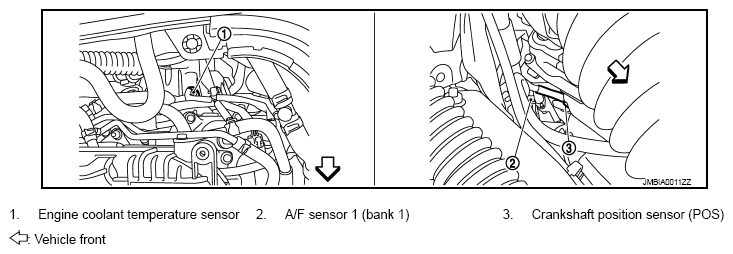

Fig 11: Air Conditioning Cut Control Components Location (11 Of 20)

G08193683

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Air Conditioning Cut Control Components Location (12 Of 20)

G08193684

Courtesy of NISSAN NORTH AMERICA, INC.

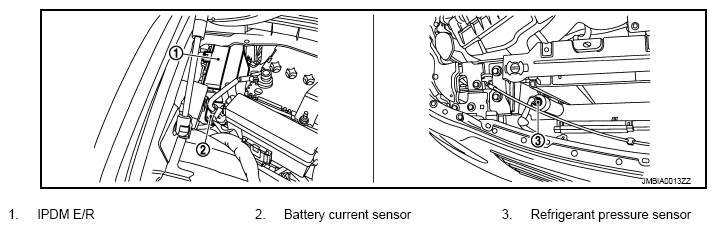

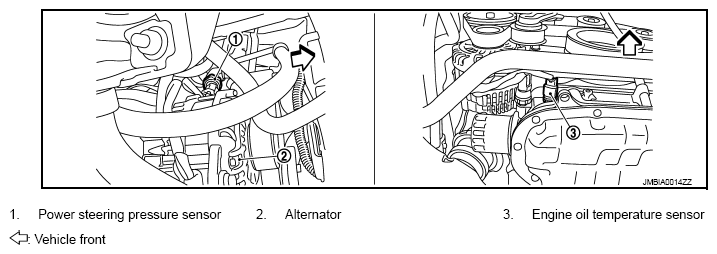

Fig 13: Air Conditioning Cut Control Components Location (13 Of 20)

G08193685

Courtesy of NISSAN NORTH AMERICA, INC.

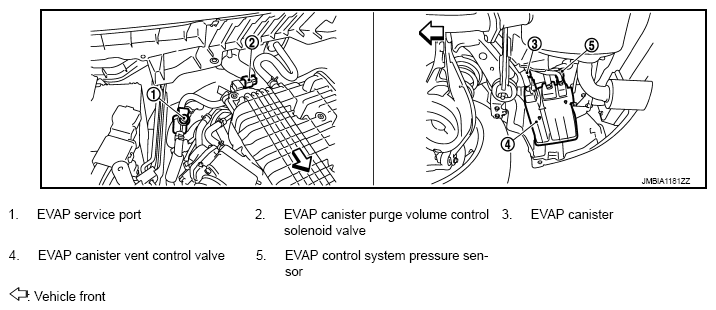

Fig 14: Air Conditioning Cut Control Components Location (14 Of 20)

G08193686

Courtesy of NISSAN NORTH AMERICA, INC.

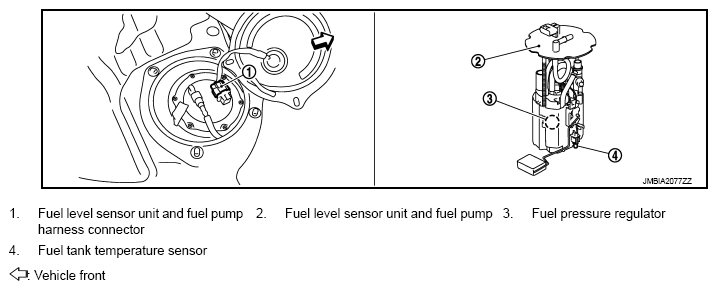

Fig 15: Air Conditioning Cut Control Components Location (15 Of 20)

G08193687

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Air Conditioning Cut Control Components Location (16 Of 20)

G08193688

Courtesy of NISSAN NORTH AMERICA, INC.

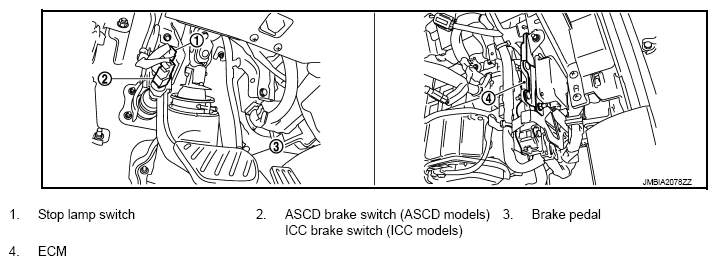

Fig 17: Air Conditioning Cut Control Components Location (17 Of 20)

G08193689

Courtesy of NISSAN NORTH AMERICA, INC.

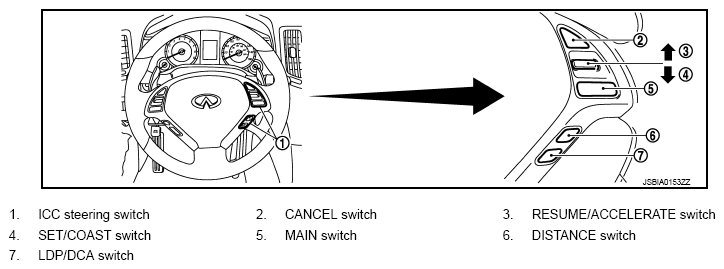

Fig 18: Air Conditioning Cut Control Components Location (18 Of 20)

G08193690

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Air Conditioning Cut Control Components Location (19 Of 20)

G08193691

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Air Conditioning Cut Control Components Location (20 Of 20)

G08193692

Courtesy of NISSAN NORTH AMERICA, INC.
