Component Parts Location

Fig 1: Automatic Speed Control Device Components Location (1 Of 20)

G08193694

Courtesy of NISSAN NORTH AMERICA, INC.

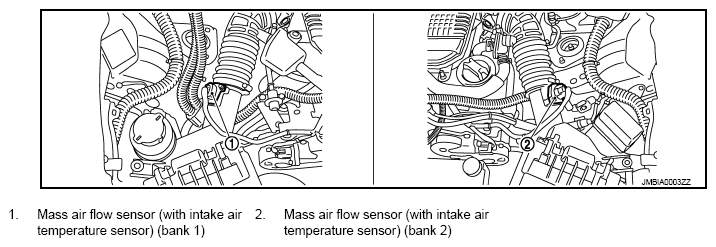

Fig 2: Automatic Speed Control Device Components Location (2 Of 20)

G08193695

Courtesy of NISSAN NORTH AMERICA, INC.

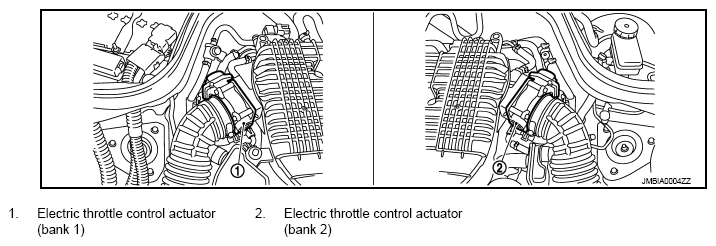

Fig 3: Automatic Speed Control Device Components Location (3 Of 20)

G08193696

Courtesy of NISSAN NORTH AMERICA, INC.

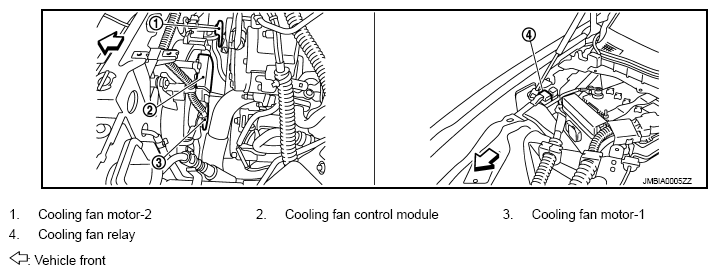

Fig 4: Automatic Speed Control Device Components Location (4 Of 20)

G08193697

Courtesy of NISSAN NORTH AMERICA, INC.

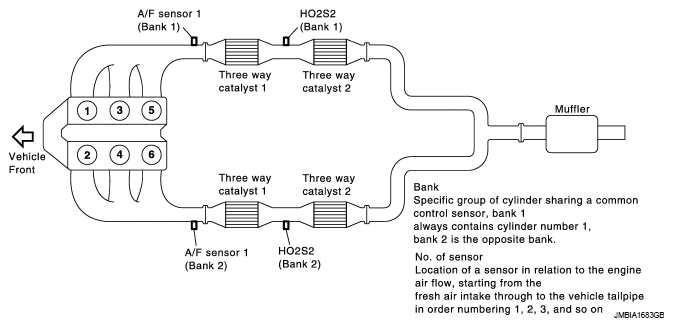

Fig 5: Automatic Speed Control Device Components Location (5 Of 20)

G06306364

Courtesy of NISSAN NORTH AMERICA, INC.

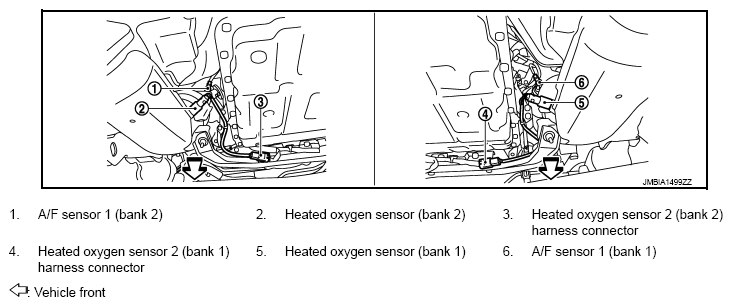

Fig 6: Automatic Speed Control Device Components Location (6 Of 20)

G08193699

Courtesy of NISSAN NORTH AMERICA, INC.

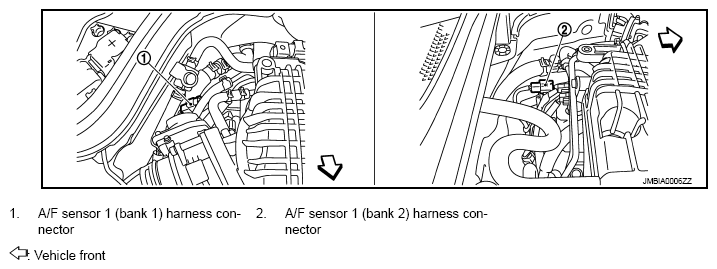

Fig 7: Automatic Speed Control Device Components Location (7 Of 20)

G08193700

Courtesy of NISSAN NORTH AMERICA, INC.

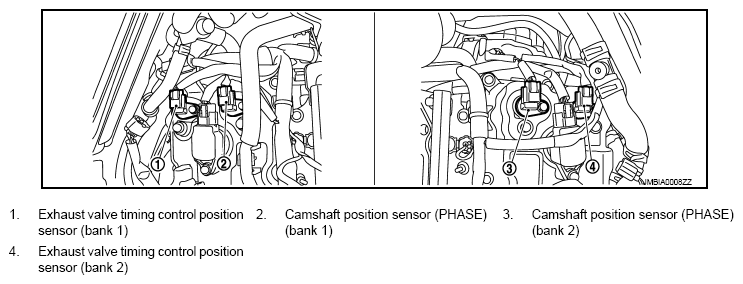

Fig 8: Automatic Speed Control Device Components Location (8 Of 20)

G08193701

Courtesy of NISSAN NORTH AMERICA, INC.

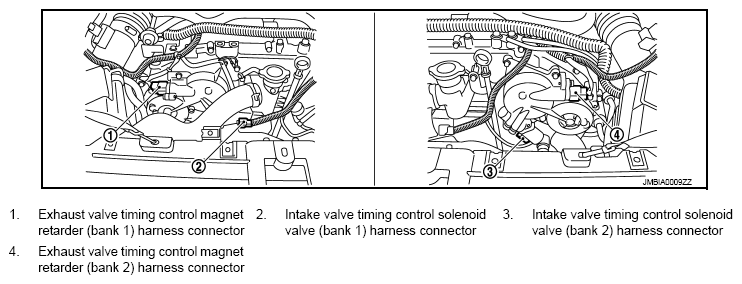

Fig 9: Automatic Speed Control Device Components Location (9 Of 20)

G08193702

Courtesy of NISSAN NORTH AMERICA, INC.

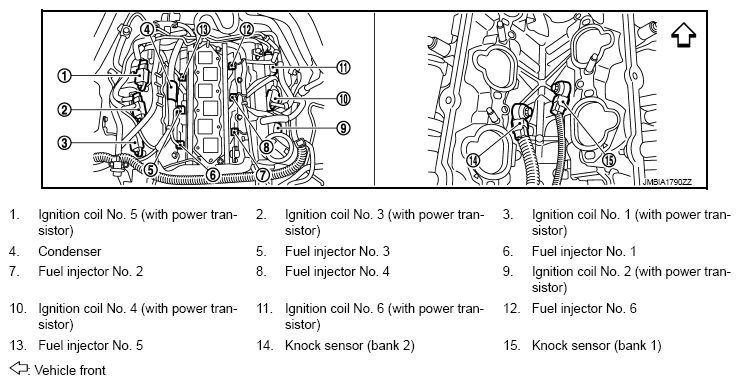

Fig 10: Automatic Speed Control Device Components Location (10 Of 20)

G08193703

Courtesy of NISSAN NORTH AMERICA, INC.

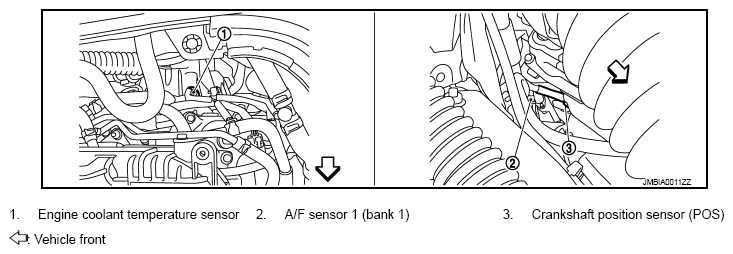

Fig 11: Automatic Speed Control Device Components Location (11 Of 20)

G08193704

Courtesy of NISSAN NORTH AMERICA, INC.

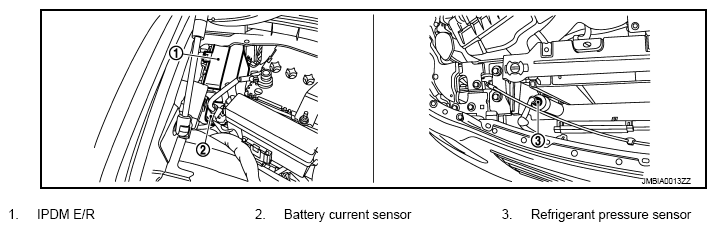

Fig 12: Automatic Speed Control Device Components Location (12 Of 20)

G08193705

Courtesy of NISSAN NORTH AMERICA, INC.

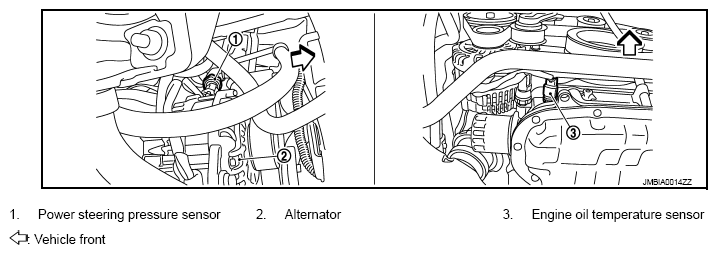

Fig 13: Automatic Speed Control Device Components Location (13 Of 20)

G08193706

Courtesy of NISSAN NORTH AMERICA, INC.

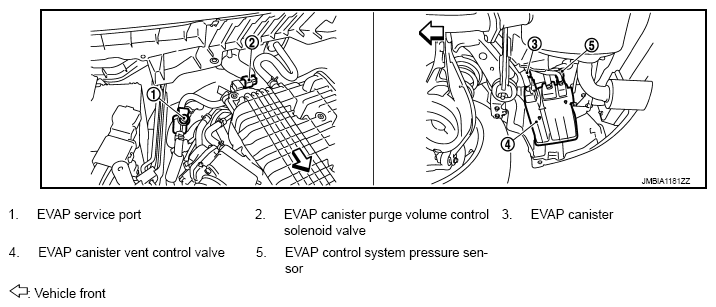

Fig 14: Automatic Speed Control Device Components Location (14 Of 20)

G08193707

Courtesy of NISSAN NORTH AMERICA, INC.

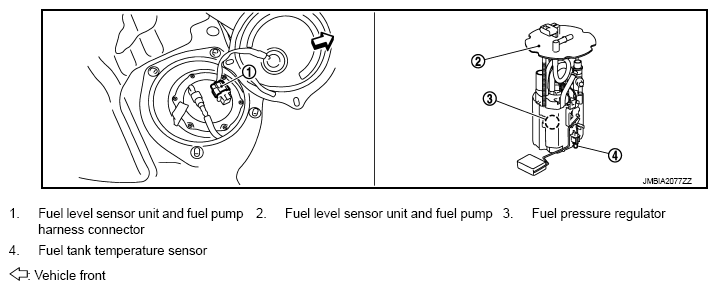

Fig 15: Automatic Speed Control Device Components Location (15 Of 20)

G08193708

Courtesy of NISSAN NORTH AMERICA, INC.

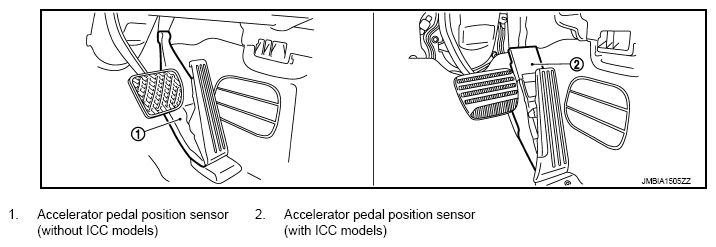

Fig 16: Automatic Speed Control Device Components Location (16 Of 20)

G08193709

Courtesy of NISSAN NORTH AMERICA, INC.

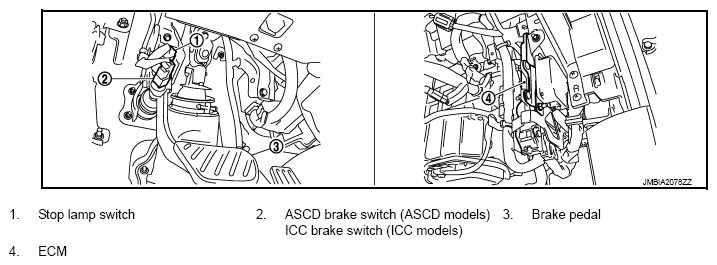

Fig 17: Automatic Speed Control Device Components Location (17 Of 20)

G08193710

Courtesy of NISSAN NORTH AMERICA, INC.

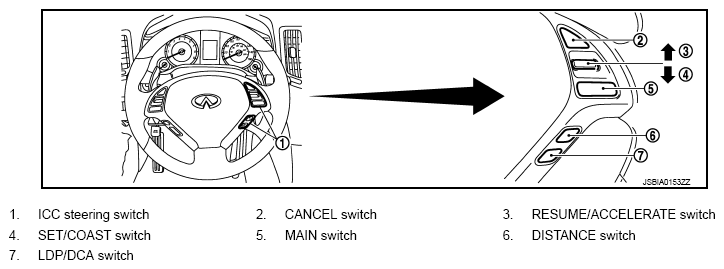

Fig 18: Automatic Speed Control Device Components Location (18 Of 20)

G08193711

Courtesy of NISSAN NORTH AMERICA, INC.

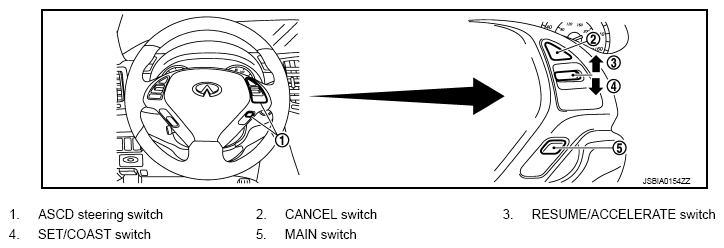

Fig 19: Automatic Speed Control Device Components Location (19 Of 20)

G08193712

Courtesy of NISSAN NORTH AMERICA, INC.

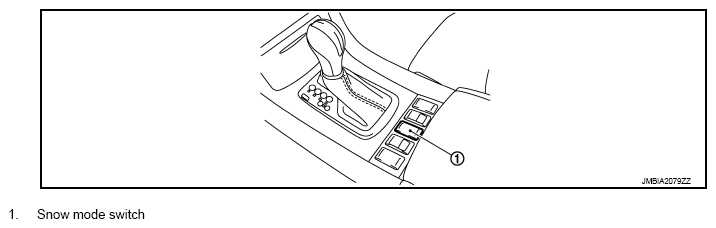

Fig 20: Automatic Speed Control Device Components Location (20 Of 20)

G08193713

Courtesy of NISSAN NORTH AMERICA, INC.
