Component Parts Location

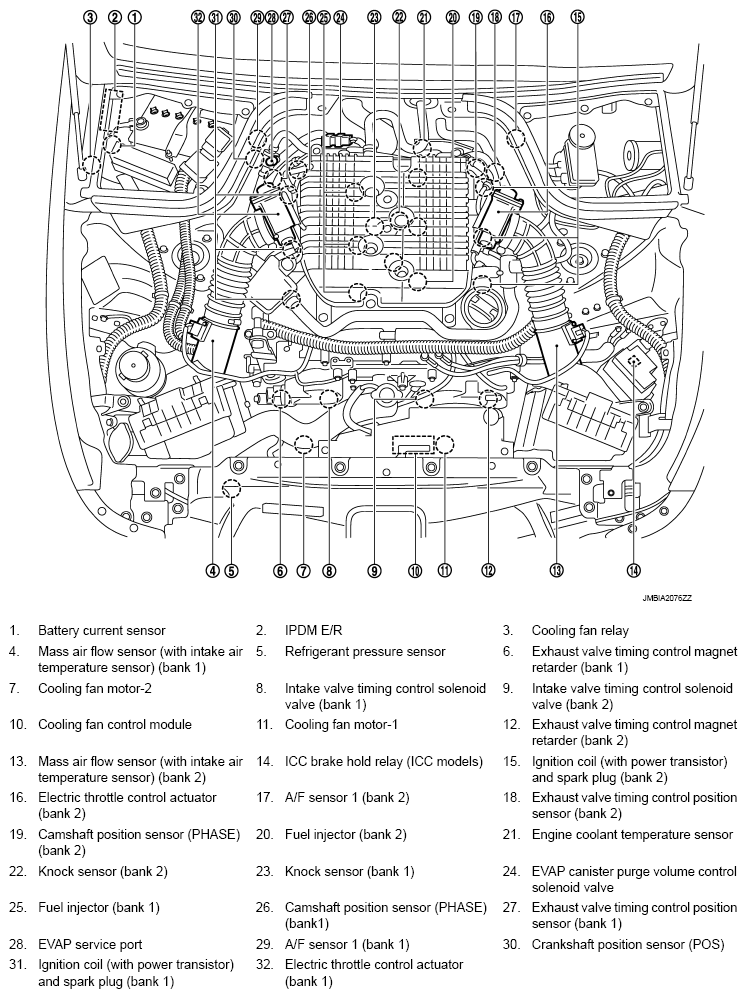

Fig 1: Cooling Fan Control Components Location (1 Of 20)

G08193715

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Cooling Fan Control Components Location (2 Of 20)

G08193716

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Cooling Fan Control Components Location (3 Of 20)

G08193717

Courtesy of NISSAN NORTH AMERICA, INC.

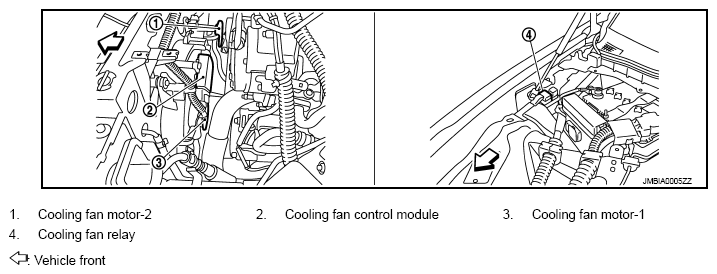

Fig 4: Cooling Fan Control Components Location (4 Of 20)

G08193718

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Cooling Fan Control Components Location (5 Of 20)

G05978207

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Cooling Fan Control Components Location (6 Of 20)

G08193720

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Cooling Fan Control Components Location (7 Of 20)

G08193721

Courtesy of NISSAN NORTH AMERICA, INC.

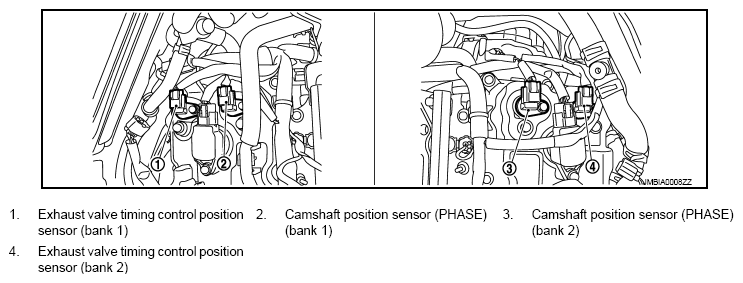

Fig 8: Cooling Fan Control Components Location (8 Of 20)

G08193722

Courtesy of NISSAN NORTH AMERICA, INC.

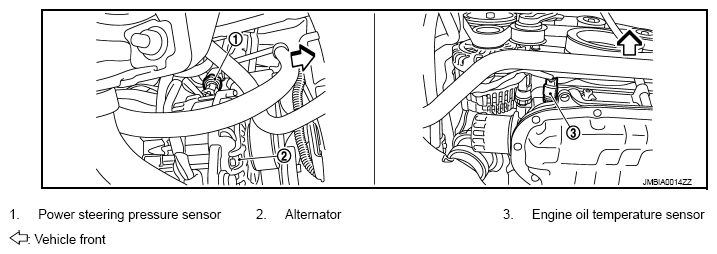

Fig 9: Cooling Fan Control Components Location (9 Of 20)

G08193723

Courtesy of NISSAN NORTH AMERICA, INC.

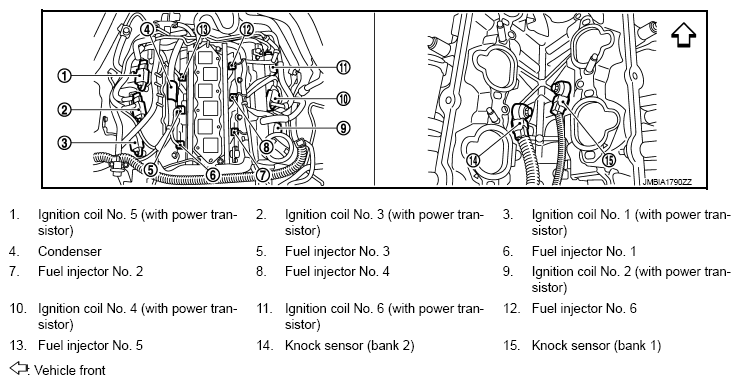

Fig 10: Cooling Fan Control Components Location (10 Of 20)

G08193724

Courtesy of NISSAN NORTH AMERICA, INC.

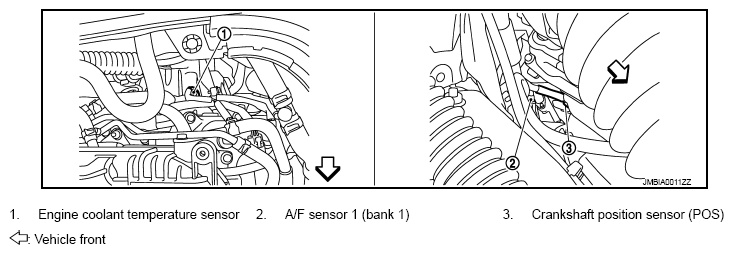

Fig 11: Cooling Fan Control Components Location (11 Of 20)

G08193725

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Cooling Fan Control Components Location (12 Of 20)

G08193726

Courtesy of NISSAN NORTH AMERICA, INC.

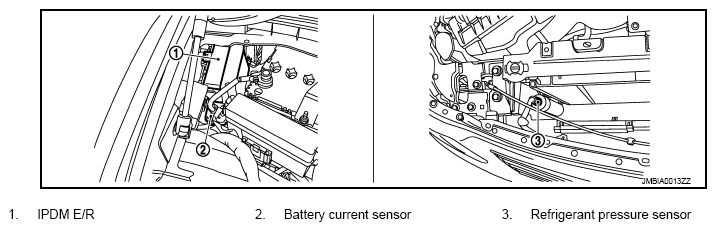

Fig 13: Cooling Fan Control Components Location (13 Of 20)

G08193727

Courtesy of NISSAN NORTH AMERICA, INC.

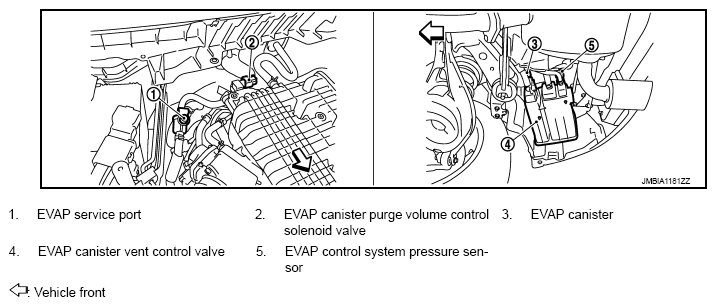

Fig 14: Cooling Fan Control Components Location (14 Of 20)

G08193728

Courtesy of NISSAN NORTH AMERICA, INC.

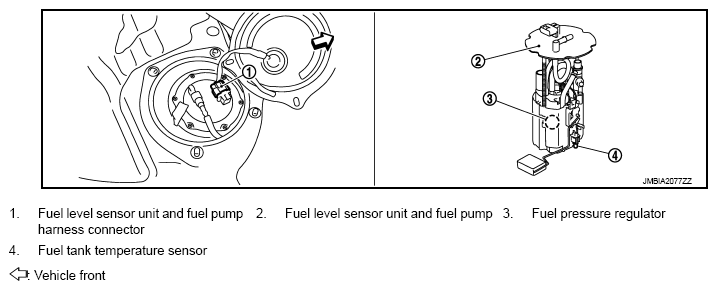

Fig 15: Cooling Fan Control Components Location (15 Of 20)

G08193729

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Cooling Fan Control Components Location (16 Of 20)

G08193730

Courtesy of NISSAN NORTH AMERICA, INC.

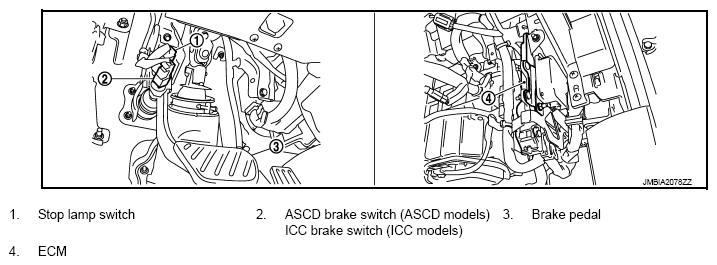

Fig 17: Cooling Fan Control Components Location (17 Of 20)

G08193731

Courtesy of NISSAN NORTH AMERICA, INC.

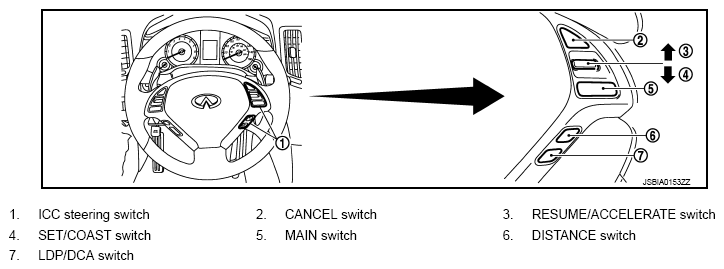

Fig 18: Cooling Fan Control Components Location (18 Of 20)

G08193732

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Cooling Fan Control Components Location (19 Of 20)

G08193733

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Cooling Fan Control Components Location (20 Of 20)

G08193734

Courtesy of NISSAN NORTH AMERICA, INC.
