Component Parts Location

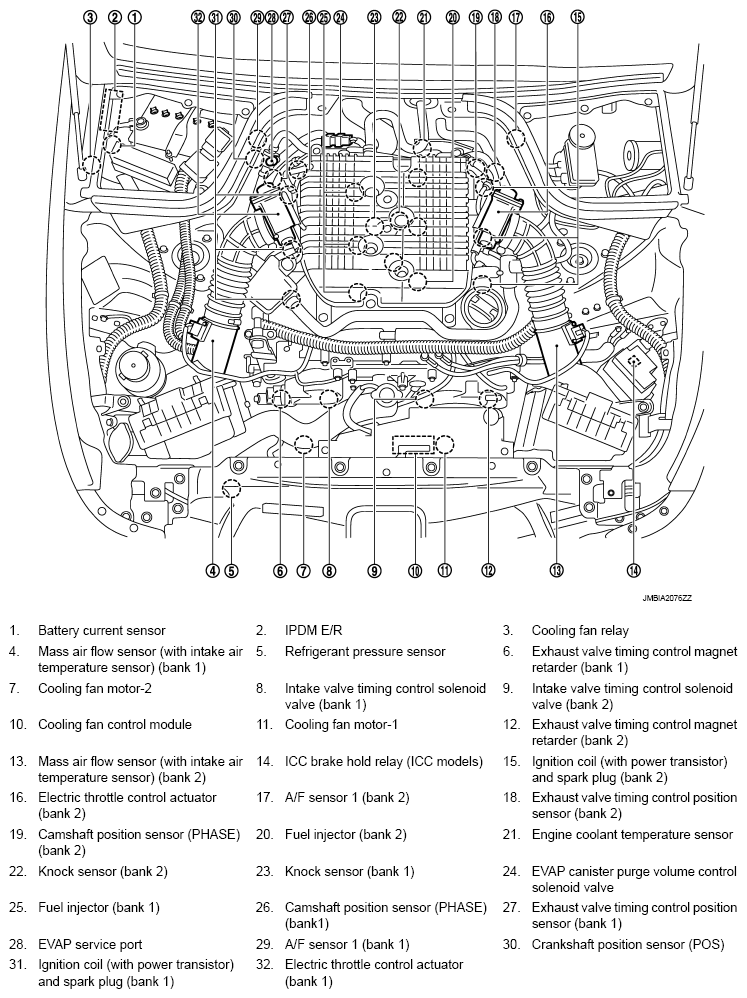

Fig 1: Engine Control System Components Location (1 Of 20)

G08193608

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Engine Control System Components Location (2 Of 20)

G08193609

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Engine Control System Components Location (3 Of 20)

G08193610

Courtesy of NISSAN NORTH AMERICA, INC.

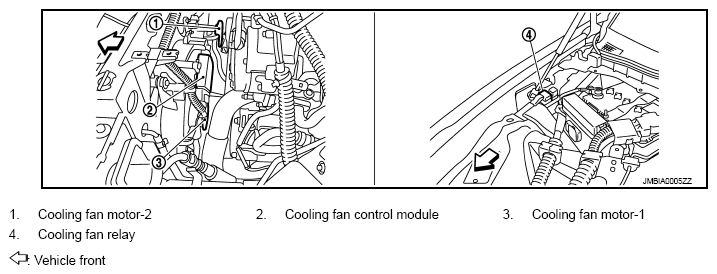

Fig 4: Engine Control System Components Location (4 Of 20)

G08193611

Courtesy of NISSAN NORTH AMERICA, INC.

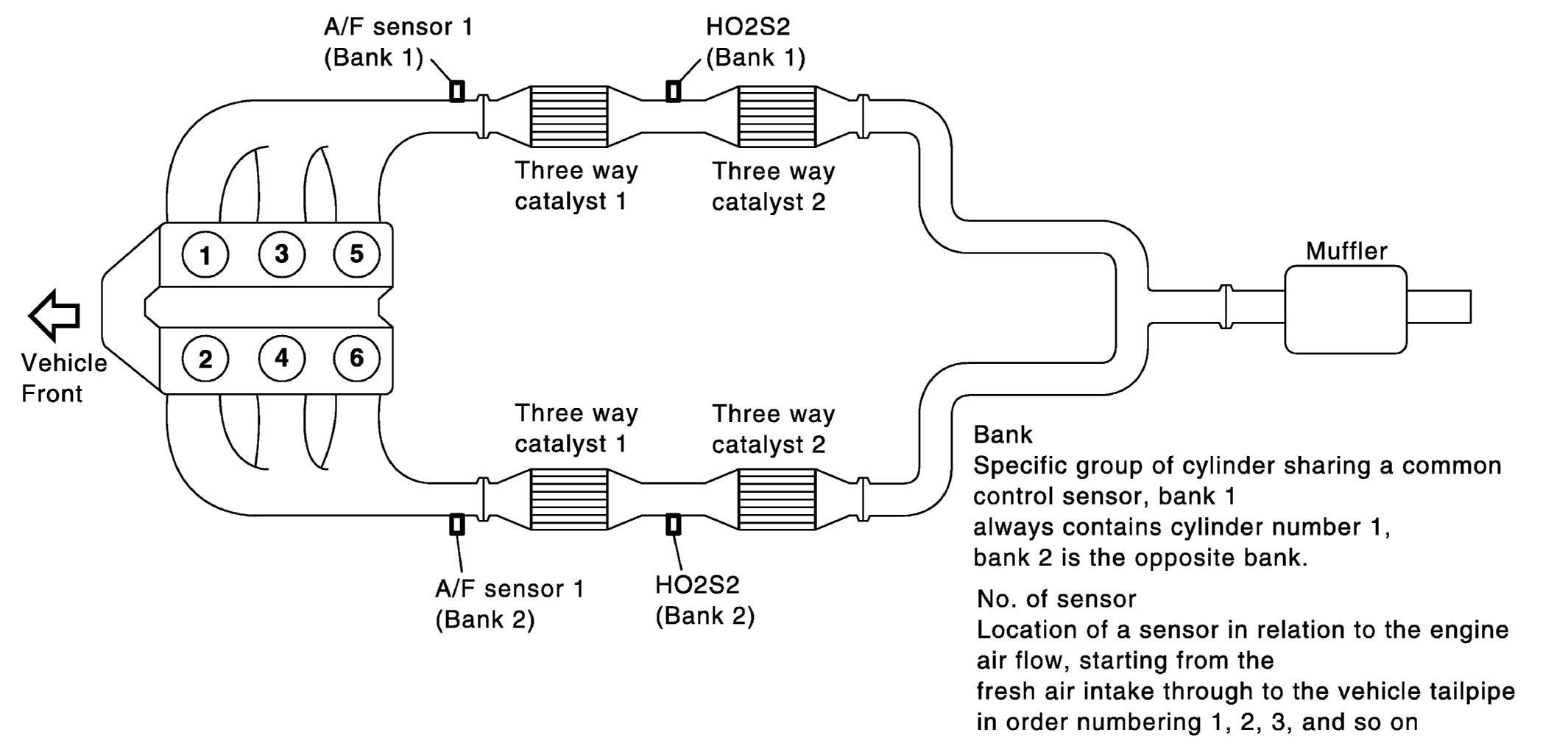

Fig 5: Engine Control System Components Location (5 Of 20)

G05978207

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Engine Control System Components Location (6 Of 20)

G08193613

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Engine Control System Components Location (7 Of 20)

G08193614

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Engine Control System Components Location (8 Of 20)

G08193615

Courtesy of NISSAN NORTH AMERICA, INC.

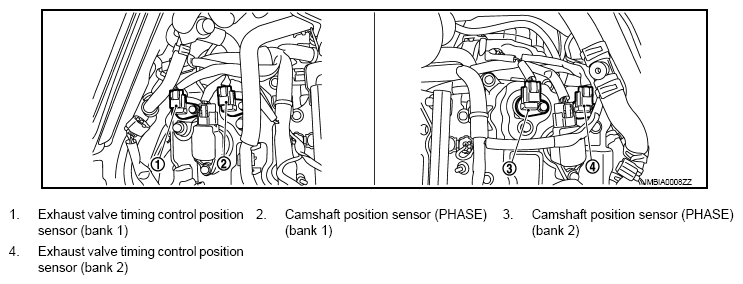

Fig 9: Engine Control System Components Location (9 Of 20)

G08193616

Courtesy of NISSAN NORTH AMERICA, INC.

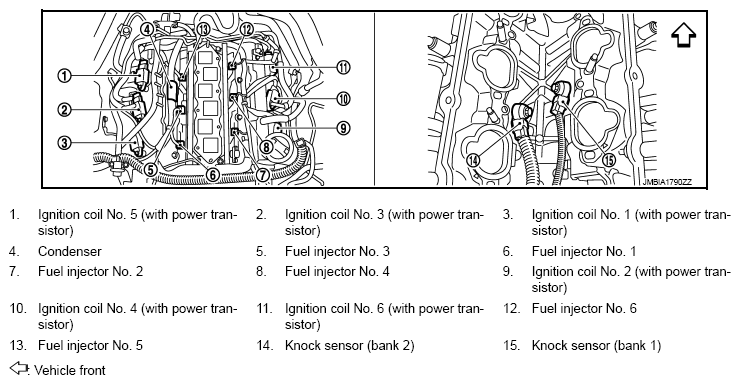

Fig 10: Engine Control System Components Location (10 Of 20)

G08193617

Courtesy of NISSAN NORTH AMERICA, INC.

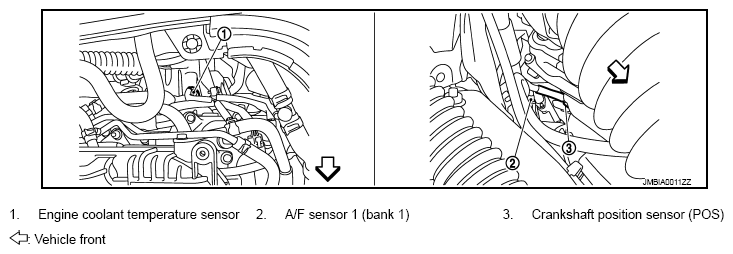

Fig 11: Engine Control System Components Location (11 Of 20)

G08193618

Courtesy of NISSAN NORTH AMERICA, INC.

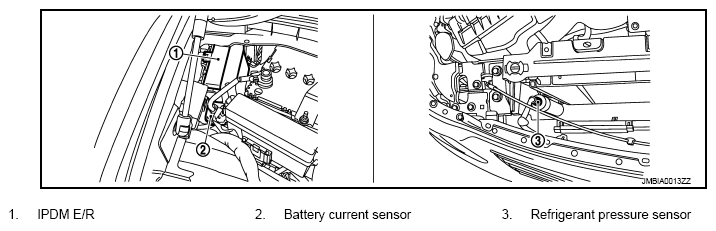

Fig 12: Engine Control System Components Location (12 Of 20)

G08193619

Courtesy of NISSAN NORTH AMERICA, INC.

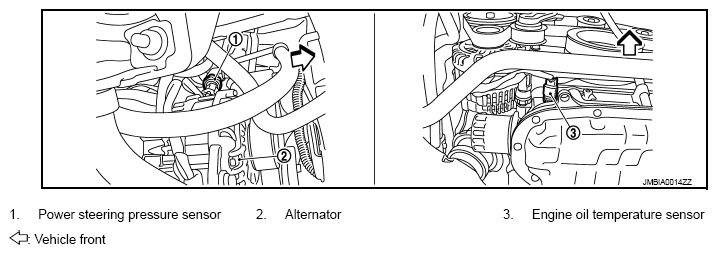

Fig 13: Engine Control System Components Location (13 Of 20)

G08193620

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Engine Control System Components Location (14 Of 20)

G08193621

Courtesy of NISSAN NORTH AMERICA, INC.

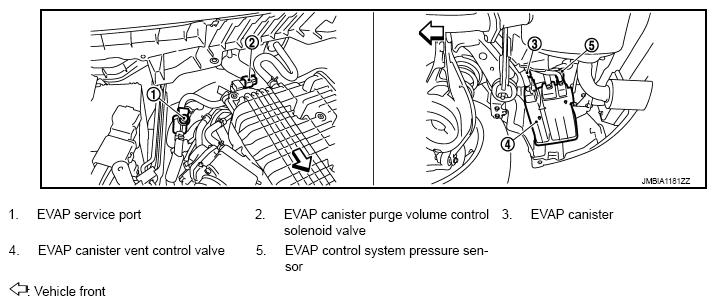

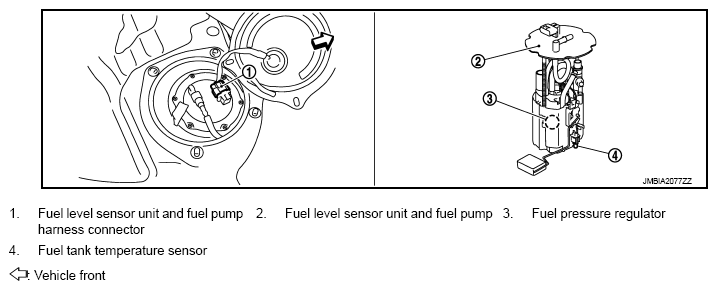

Fig 15: Engine Control System Components Location (15 Of 20)

G08193622

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Engine Control System Components Location (16 Of 20)

G08193623

Courtesy of NISSAN NORTH AMERICA, INC.

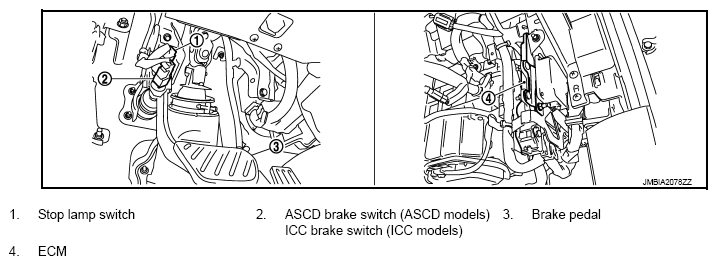

Fig 17: Engine Control System Components Location (17 Of 20)

G08193624

Courtesy of NISSAN NORTH AMERICA, INC.

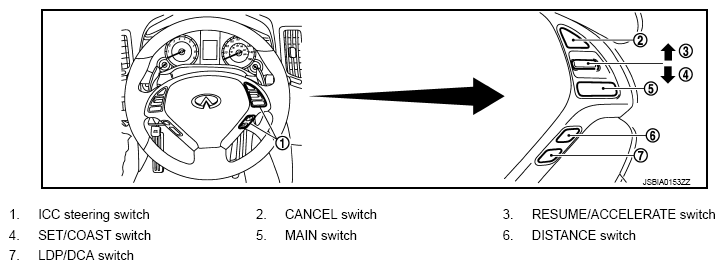

Fig 18: Engine Control System Components Location (18 Of 20)

G08193625

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Engine Control System Components Location (19 Of 20)

G08193626

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Engine Control System Components Location (20 Of 20)

G08193627

Courtesy of NISSAN NORTH AMERICA, INC.
