Component Parts Location

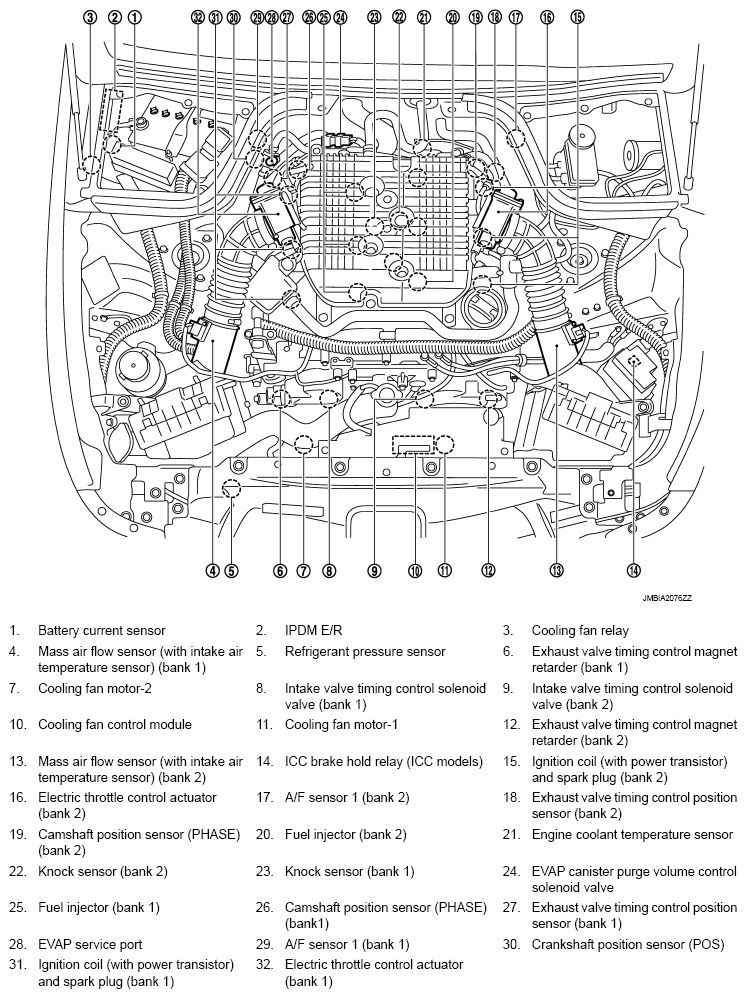

Fig 1: Exhaust Valve Timing Control Components Location (1 Of 20)

G08193759

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Exhaust Valve Timing Control Components Location (2 Of 20)

G08193760

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Exhaust Valve Timing Control Components Location (3 Of 20)

G08193761

Courtesy of NISSAN NORTH AMERICA, INC.

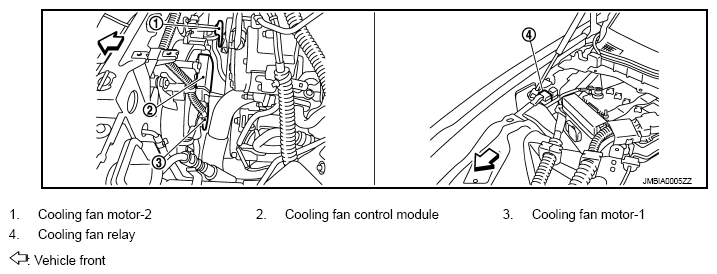

Fig 4: Exhaust Valve Timing Control Components Location (4 Of 20)

G08193762

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Exhaust Valve Timing Control Components Location (5 Of 20)

G05978207

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Exhaust Valve Timing Control Components Location (6 Of 20)

G08193764

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Exhaust Valve Timing Control Components Location (7 Of 20)

G08193765

Courtesy of NISSAN NORTH AMERICA, INC.

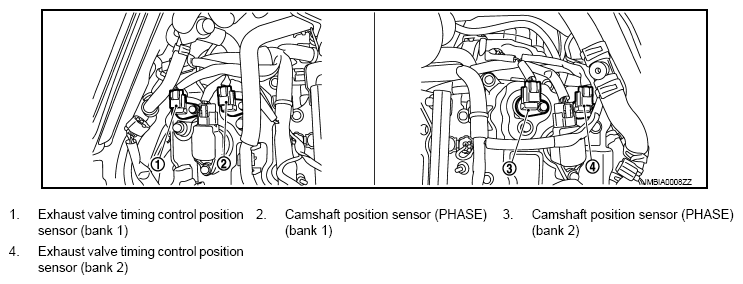

Fig 8: Exhaust Valve Timing Control Components Location (8 Of 20)

G08193766

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Exhaust Valve Timing Control Components Location (9 Of 20)

G08193767

Courtesy of NISSAN NORTH AMERICA, INC.

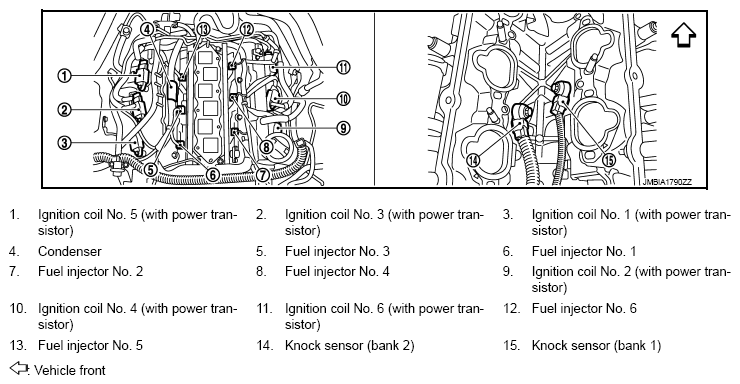

Fig 10: Exhaust Valve Timing Control Components Location (10 Of 20)

G08193768

Courtesy of NISSAN NORTH AMERICA, INC.

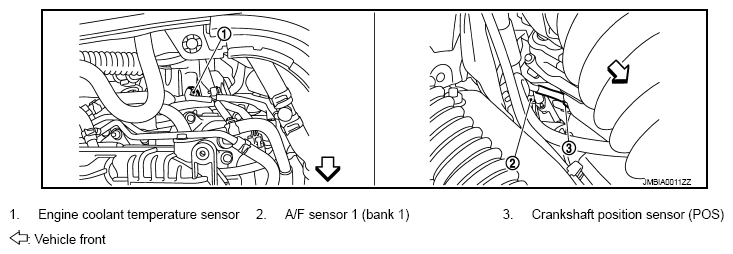

Fig 11: Exhaust Valve Timing Control Components Location (11 Of 20)

G08193769

Courtesy of NISSAN NORTH AMERICA, INC.

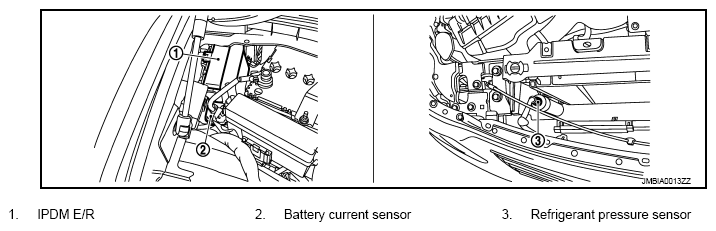

Fig 12: Exhaust Valve Timing Control Components Location (12 Of 20)

G08193770

Courtesy of NISSAN NORTH AMERICA, INC.

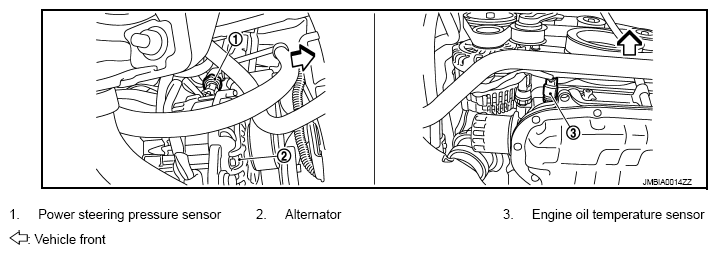

Fig 13: Exhaust Valve Timing Control Components Location (13 Of 20)

G08193771

Courtesy of NISSAN NORTH AMERICA, INC.

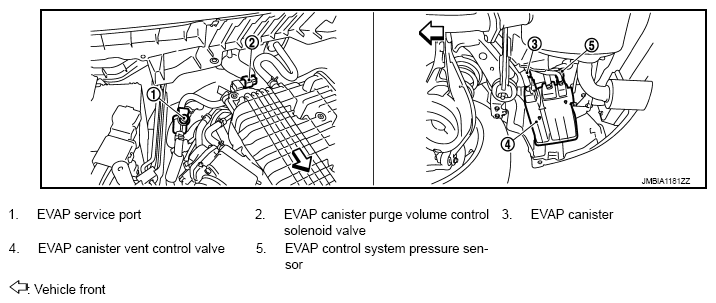

Fig 14: Exhaust Valve Timing Control Components Location (14 Of 20)

G08193772

Courtesy of NISSAN NORTH AMERICA, INC.

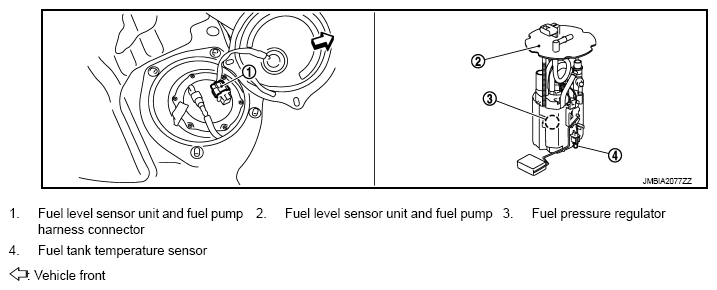

Fig 15: Exhaust Valve Timing Control Components Location (15 Of 20)

G08193773

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Exhaust Valve Timing Control Components Location (16 Of 20)

G08193774

Courtesy of NISSAN NORTH AMERICA, INC.

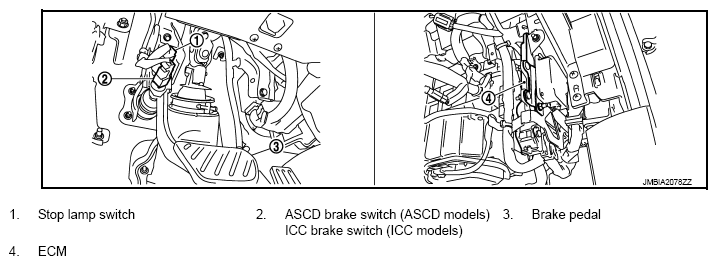

Fig 17: Exhaust Valve Timing Control Components Location (17 Of 20)

G08193775

Courtesy of NISSAN NORTH AMERICA, INC.

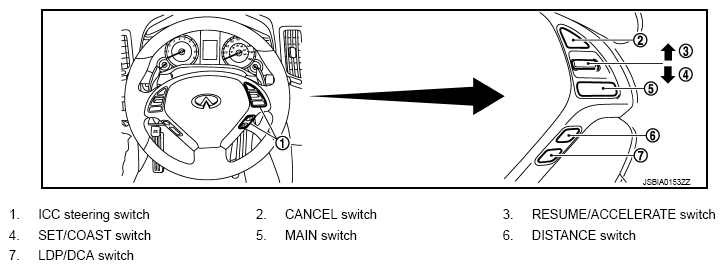

Fig 18: Exhaust Valve Timing Control Components Location (18 Of 20)

G08193776

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Exhaust Valve Timing Control Components Location (19 Of 20)

G08193777

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Exhaust Valve Timing Control Components Location (20 Of 20)

G08193778

Courtesy of NISSAN NORTH AMERICA, INC.
