Component Parts Location

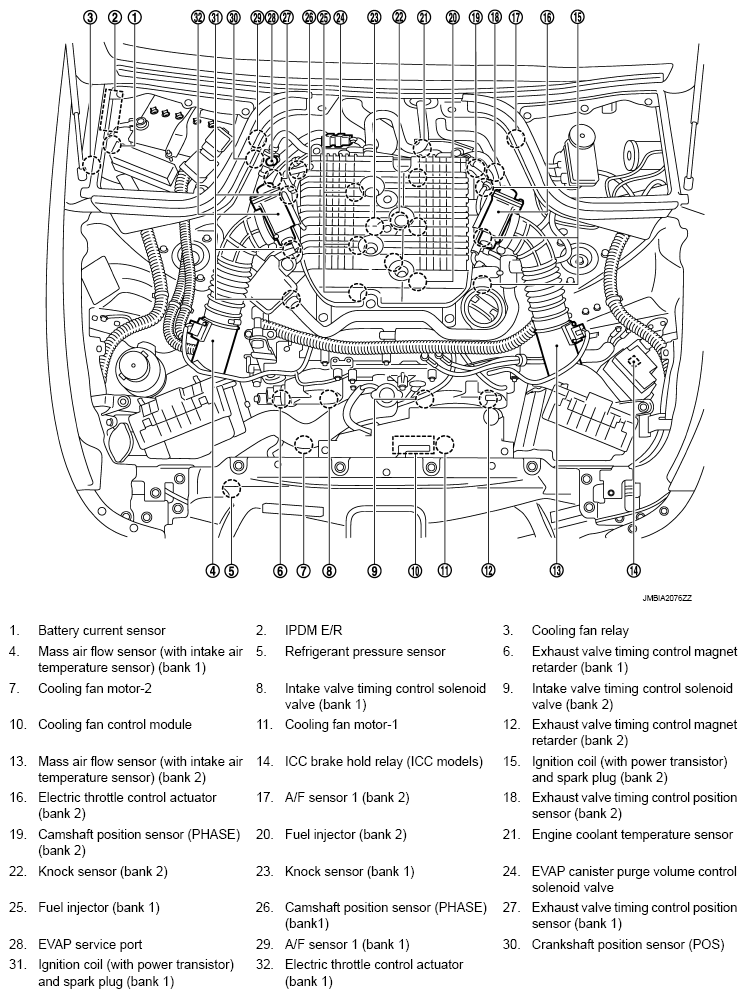

Fig 1: Intake Valve Timing Control Components Location (1 Of 20)

G08193802

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Intake Valve Timing Control Components Location (2 Of 20)

G08193803

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Intake Valve Timing Control Components Location (3 Of 20)

G08193804

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Intake Valve Timing Control Components Location (4 Of 20)

G08193805

Courtesy of NISSAN NORTH AMERICA, INC.

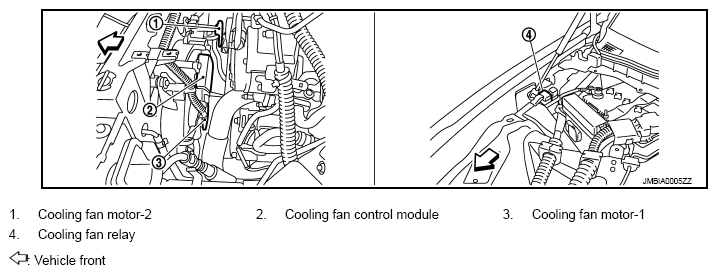

Fig 5: Intake Valve Timing Control Components Location (5 Of 20)

G05978207

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Intake Valve Timing Control Components Location (6 Of 20)

G08193807

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Intake Valve Timing Control Components Location (7 Of 20)

G08193808

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Intake Valve Timing Control Components Location (8 Of 20)

G08193809

Courtesy of NISSAN NORTH AMERICA, INC.

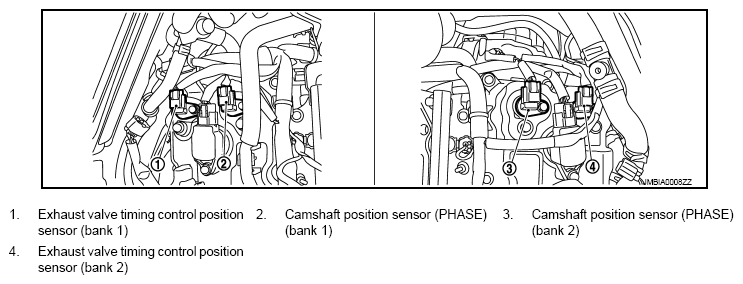

Fig 9: Intake Valve Timing Control Components Location (9 Of 20)

G08193810

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Intake Valve Timing Control Components Location (10 Of 20)

G08193811

Courtesy of NISSAN NORTH AMERICA, INC.

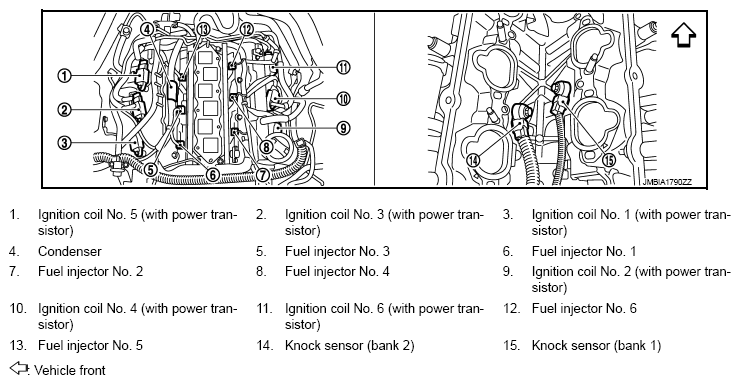

Fig 11: Intake Valve Timing Control Components Location (11 Of 20)

G08193812

Courtesy of NISSAN NORTH AMERICA, INC.

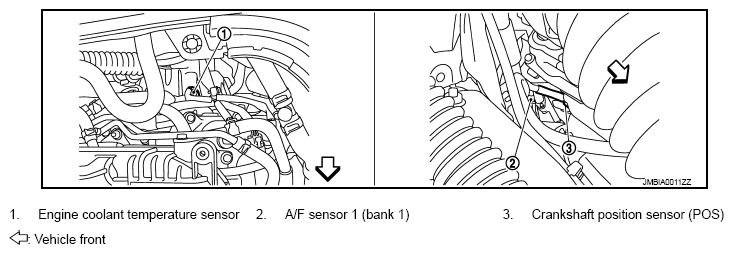

Fig 12: Intake Valve Timing Control Components Location (12 Of 20)

G08193813

Courtesy of NISSAN NORTH AMERICA, INC.

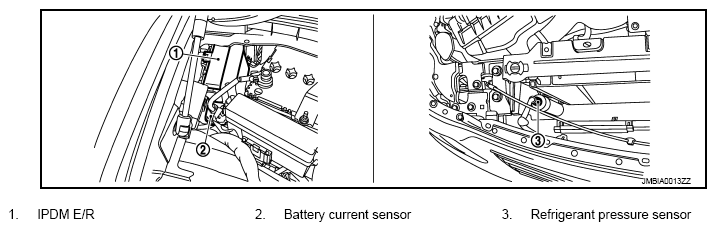

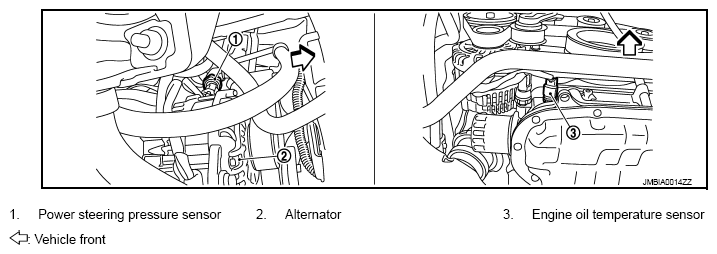

Fig 13: Intake Valve Timing Control Components Location (13 Of 20)

G08193814

Courtesy of NISSAN NORTH AMERICA, INC.

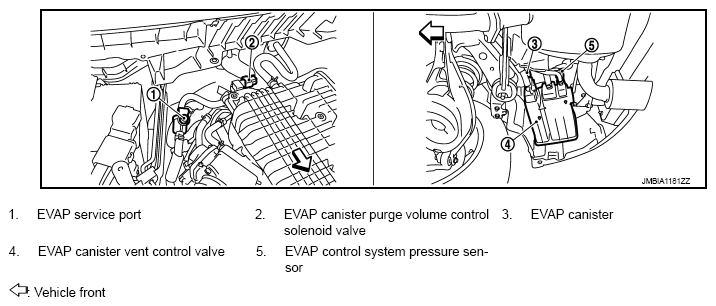

Fig 14: Intake Valve Timing Control Components Location (14 Of 20)

G08193815

Courtesy of NISSAN NORTH AMERICA, INC.

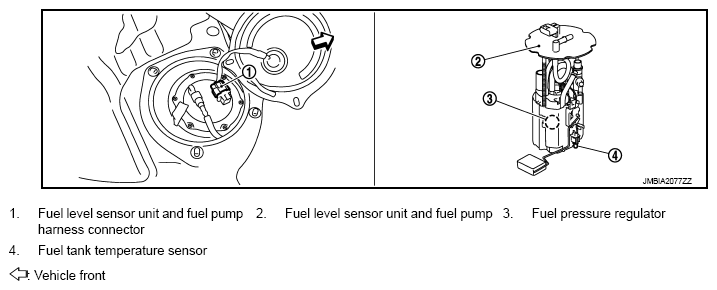

Fig 15: Intake Valve Timing Control Components Location (15 Of 20)

G08193816

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Intake Valve Timing Control Components Location (16 Of 20)

G08193817

Courtesy of NISSAN NORTH AMERICA, INC.

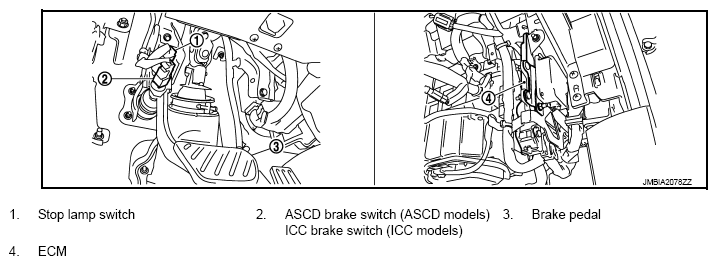

Fig 17: Intake Valve Timing Control Components Location (17 Of 20)

G08193818

Courtesy of NISSAN NORTH AMERICA, INC.

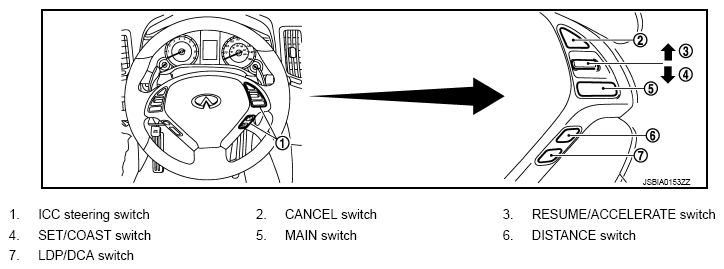

Fig 18: Intake Valve Timing Control Components Location (18 Of 20)

G08193819

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Intake Valve Timing Control Components Location (19 Of 20)

G08193820

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Intake Valve Timing Control Components Location (20 Of 20)

G08193821

Courtesy of NISSAN NORTH AMERICA, INC.
