Component Parts Location

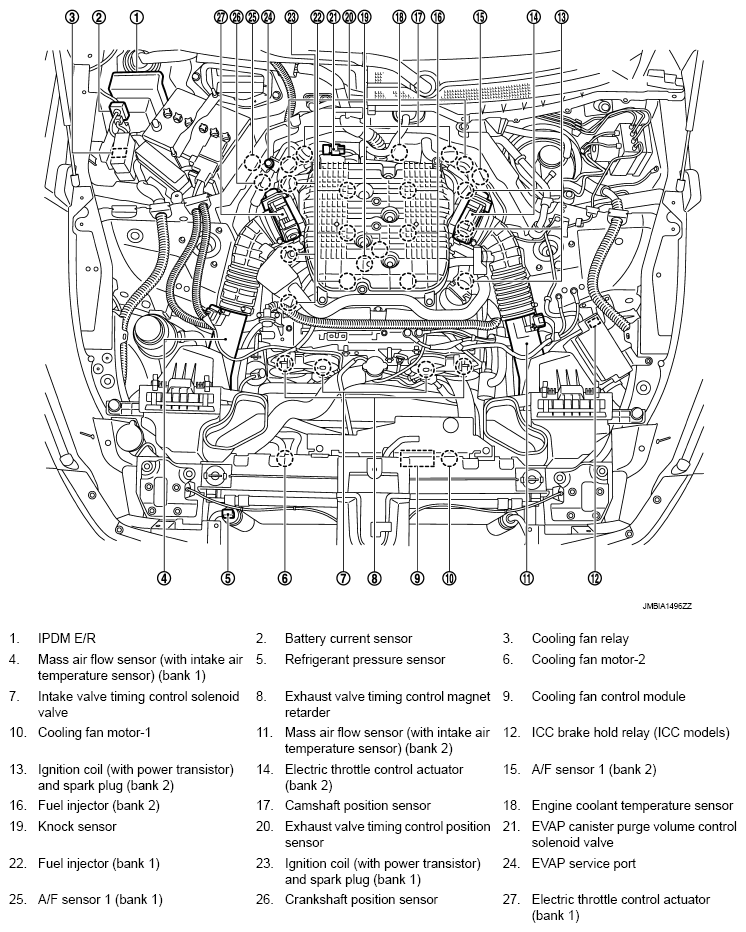

Fig 1: Evaporative Emission System Components Location (1 Of 20)

G08210154

Courtesy of NISSAN NORTH AMERICA, INC.

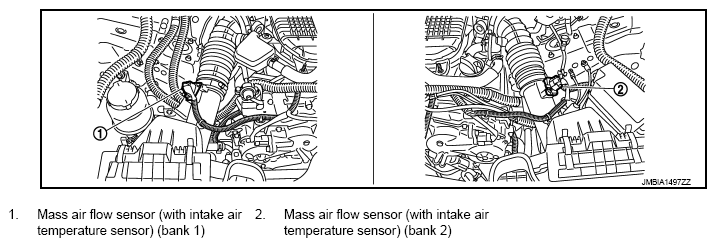

Fig 2: Evaporative Emission System Components Location (2 Of 20)

G08210155

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Evaporative Emission System Components Location (3 Of 20)

G08210156

Courtesy of NISSAN NORTH AMERICA, INC.

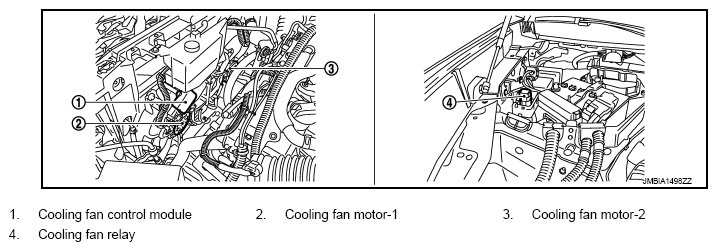

Fig 4: Evaporative Emission System Components Location (4 Of 20)

G08210157

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Evaporative Emission System Components Location (5 Of 20)

G05978207

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Evaporative Emission System Components Location (6 Of 20)

G08210159

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Evaporative Emission System Components Location (7 Of 20)

G08210160

Courtesy of NISSAN NORTH AMERICA, INC.

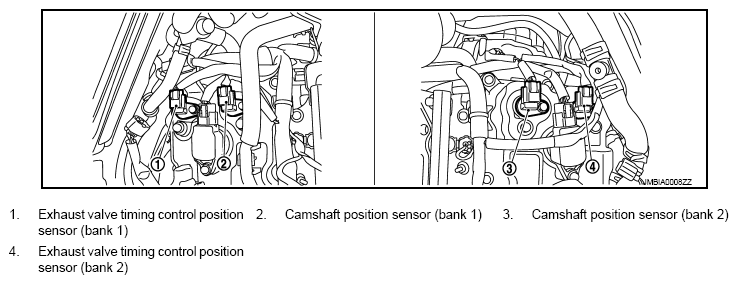

Fig 8: Evaporative Emission System Components Location (8 Of 20)

G08210161

Courtesy of NISSAN NORTH AMERICA, INC.

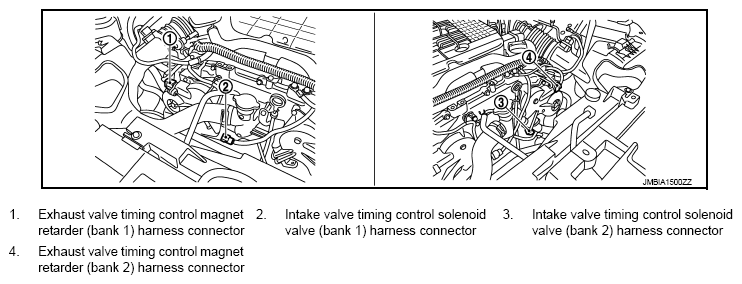

Fig 9: Evaporative Emission System Components Location (9 Of 20)

G08210162

Courtesy of NISSAN NORTH AMERICA, INC.

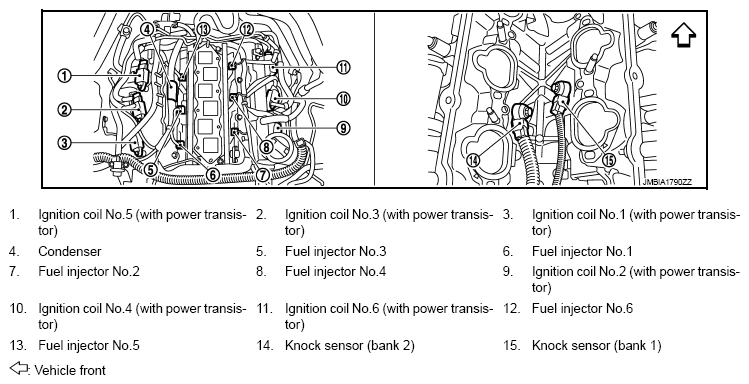

Fig 10: Evaporative Emission System Components Location (10 Of 20)

G08210163

Courtesy of NISSAN NORTH AMERICA, INC.

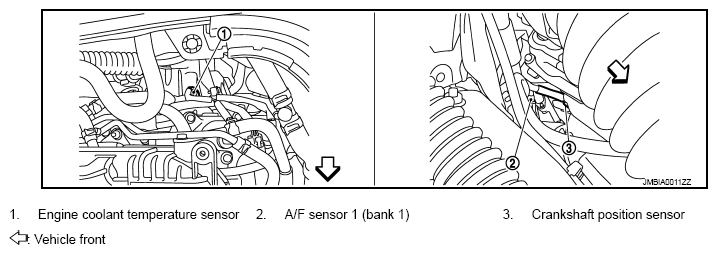

Fig 11: Evaporative Emission System Components Location (11 Of 20)

G08210164

Courtesy of NISSAN NORTH AMERICA, INC.

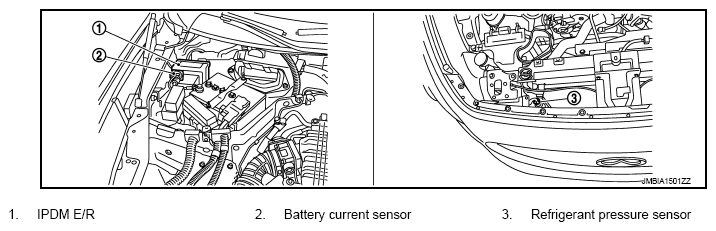

Fig 12: Evaporative Emission System Components Location (12 Of 20)

G08210165

Courtesy of NISSAN NORTH AMERICA, INC.

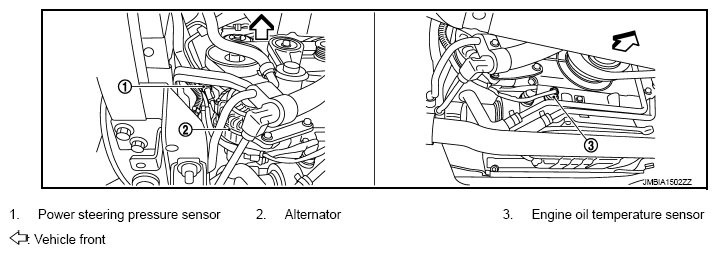

Fig 13: Evaporative Emission System Components Location (13 Of 20)

G08210166

Courtesy of NISSAN NORTH AMERICA, INC.

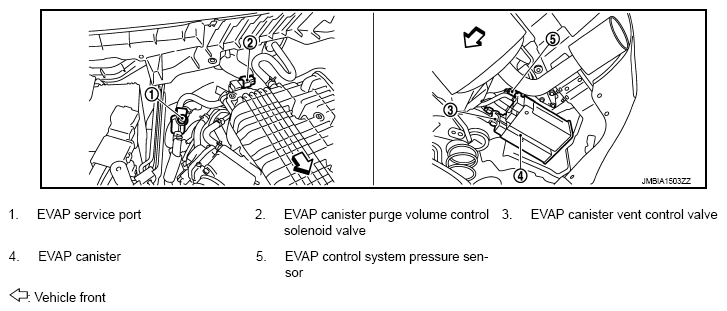

Fig 14: Evaporative Emission System Components Location (14 Of 20)

G08210167

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Evaporative Emission System Components Location (15 Of 20)

G08210168

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Evaporative Emission System Components Location (16 Of 20)

G08210169

Courtesy of NISSAN NORTH AMERICA, INC.

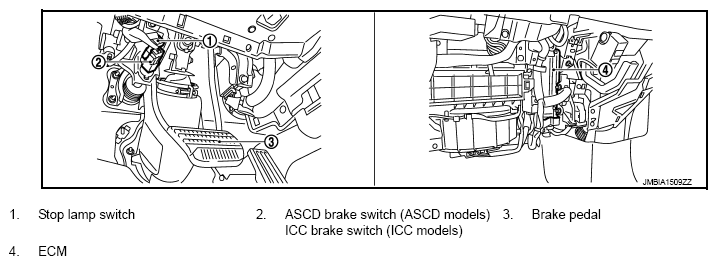

Fig 17: Evaporative Emission System Components Location (17 Of 20)

G08210170

Courtesy of NISSAN NORTH AMERICA, INC.

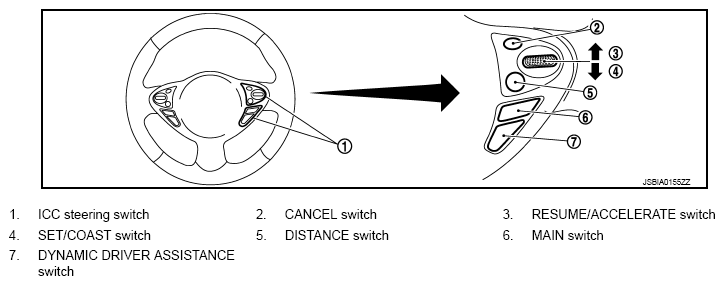

Fig 18: Evaporative Emission System Components Location (18 Of 20)

G08210171

Courtesy of NISSAN NORTH AMERICA, INC.

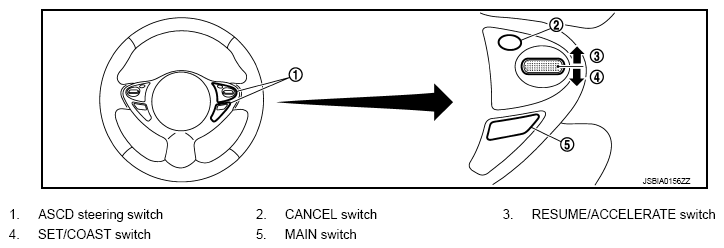

Fig 19: Evaporative Emission System Components Location (19 Of 20)

G08210172

Courtesy of NISSAN NORTH AMERICA, INC.

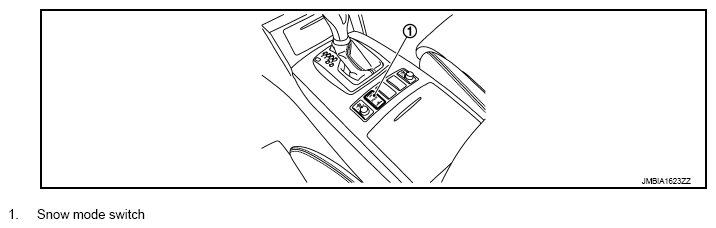

Fig 20: Evaporative Emission System Components Location (20 Of 20)

G08210173

Courtesy of NISSAN NORTH AMERICA, INC.
