Overall Sequence

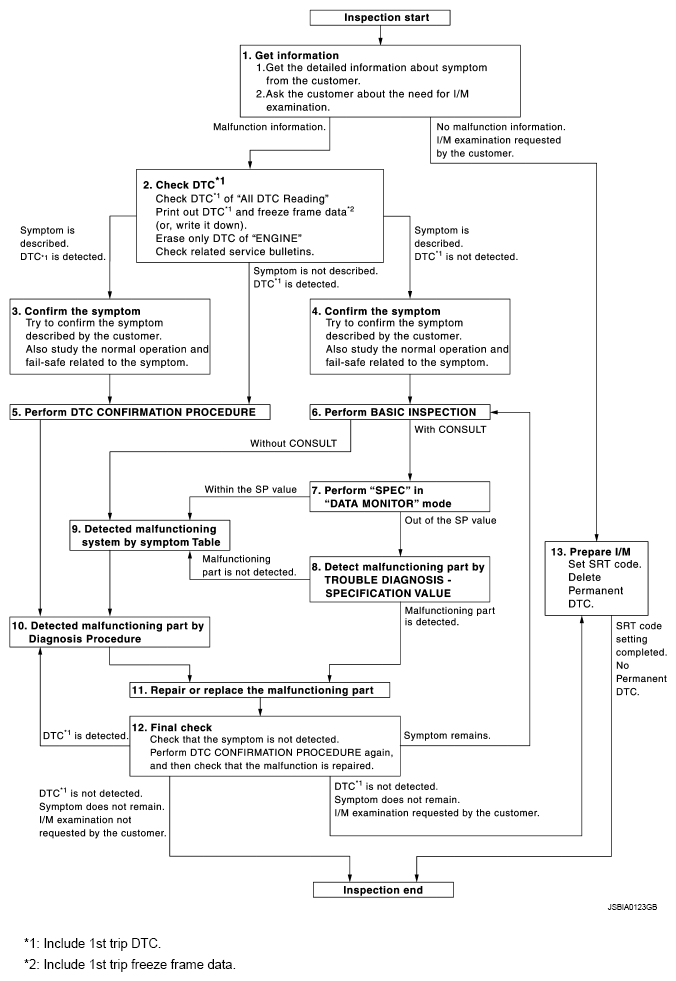

Fig 1: Diagnosis And Repair Workflow Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
