Component Parts Location

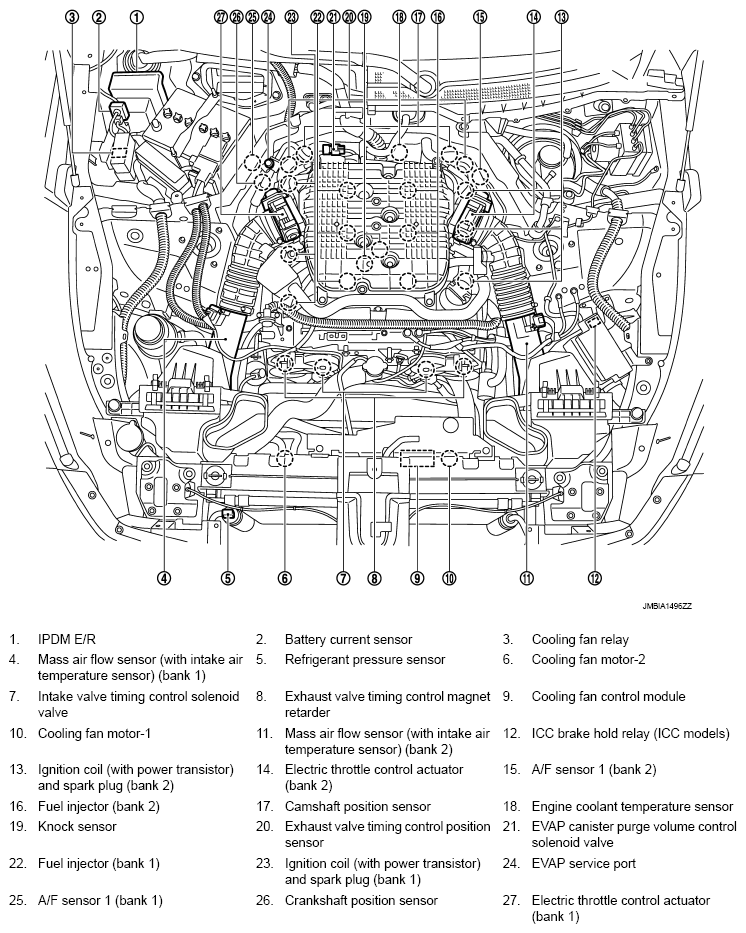

Fig 1: Electric Ignition System Components Location (1 Of 20)

G08210068

Courtesy of NISSAN NORTH AMERICA, INC.

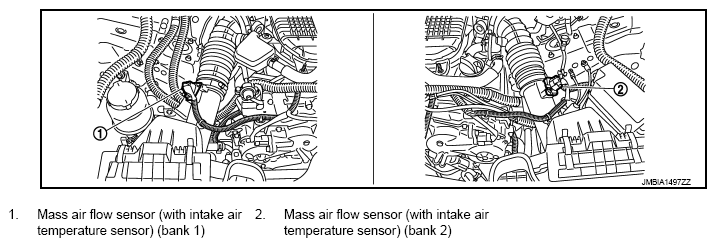

Fig 2: Electric Ignition System Components Location (2 Of 20)

G08210069

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Electric Ignition System Components Location (3 Of 20)

G08210070

Courtesy of NISSAN NORTH AMERICA, INC.

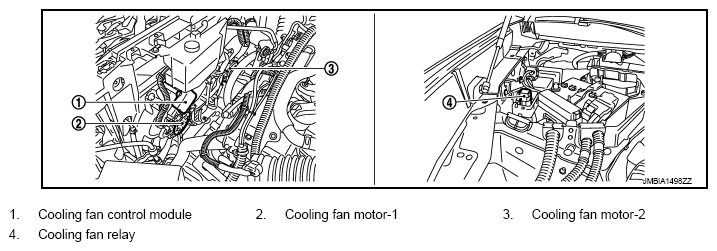

Fig 4: Electric Ignition System Components Location (4 Of 20)

G08210071

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Electric Ignition System Components Location (5 Of 20)

G06306364

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Electric Ignition System Components Location (6 Of 20)

G08210073

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Electric Ignition System Components Location (7 Of 20)

G08210074

Courtesy of NISSAN NORTH AMERICA, INC.

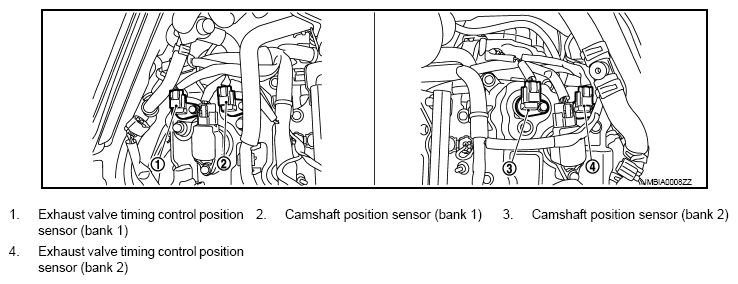

Fig 8: Electric Ignition System Components Location (8 Of 20)

G08210075

Courtesy of NISSAN NORTH AMERICA, INC.

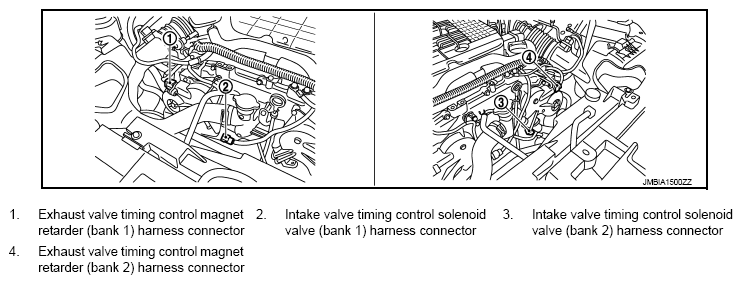

Fig 9: Electric Ignition System Components Location (9 Of 20)

G08210076

Courtesy of NISSAN NORTH AMERICA, INC.

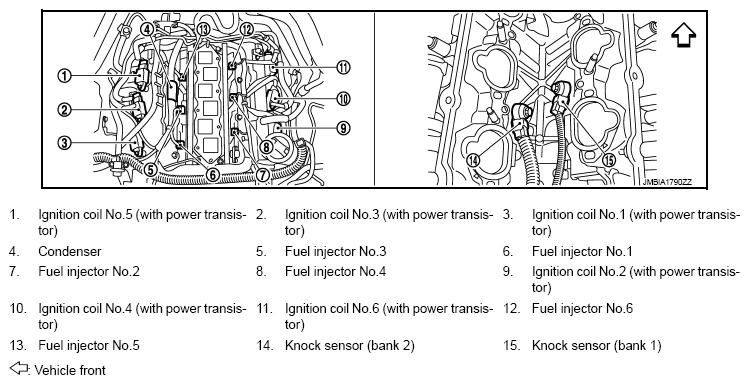

Fig 10: Electric Ignition System Components Location (10 Of 20)

G08210077

Courtesy of NISSAN NORTH AMERICA, INC.

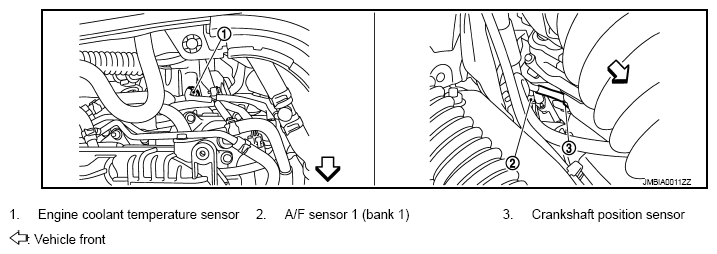

Fig 11: Electric Ignition System Components Location (11 Of 20)

G08210078

Courtesy of NISSAN NORTH AMERICA, INC.

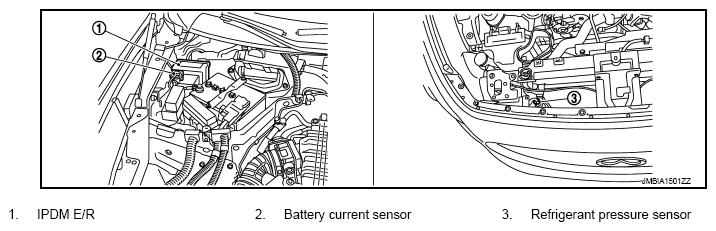

Fig 12: Electric Ignition System Components Location (12 Of 20)

G08210079

Courtesy of NISSAN NORTH AMERICA, INC.

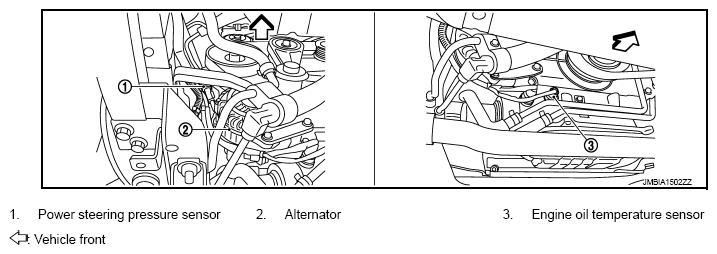

Fig 13: Electric Ignition System Components Location (13 Of 20)

G08210080

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Electric Ignition System Components Location (14 Of 20)

G08210081

Courtesy of NISSAN NORTH AMERICA, INC.

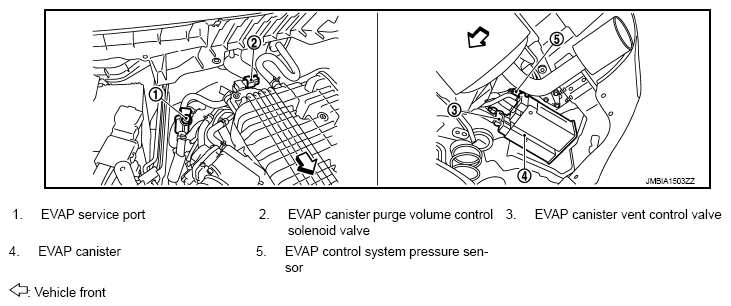

Fig 15: Electric Ignition System Components Location (15 Of 20)

G08210082

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Electric Ignition System Components Location (16 Of 20)

G08210083

Courtesy of NISSAN NORTH AMERICA, INC.

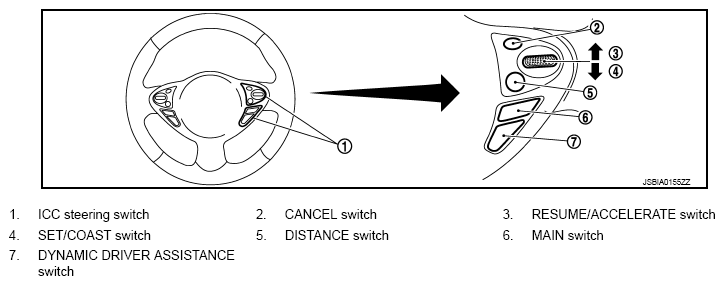

Fig 17: Electric Ignition System Components Location (17 Of 20)

G08210084

Courtesy of NISSAN NORTH AMERICA, INC.

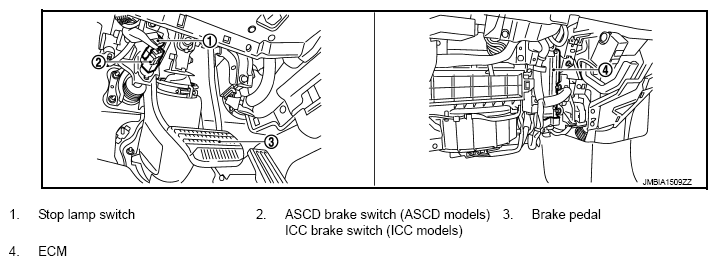

Fig 18: Electric Ignition System Components Location (18 Of 20)

G08210085

Courtesy of NISSAN NORTH AMERICA, INC.

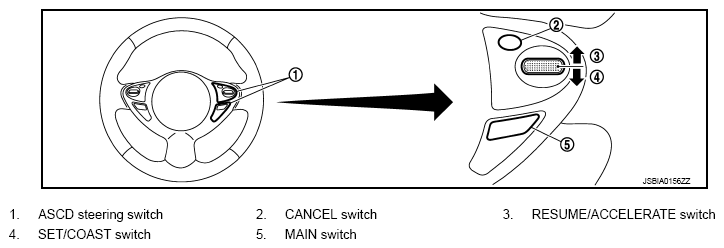

Fig 19: Electric Ignition System Components Location (19 Of 20)

G08210086

Courtesy of NISSAN NORTH AMERICA, INC.

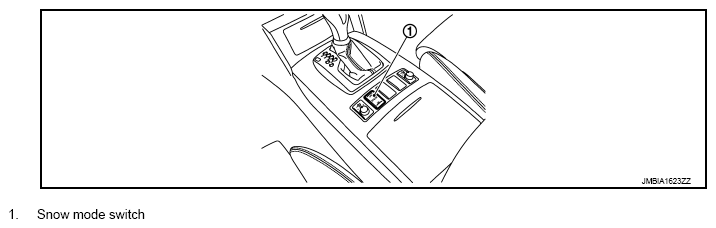

Fig 20: Electric Ignition System Components Location (20 Of 20)

G08210087

Courtesy of NISSAN NORTH AMERICA, INC.
