Component Parts Location

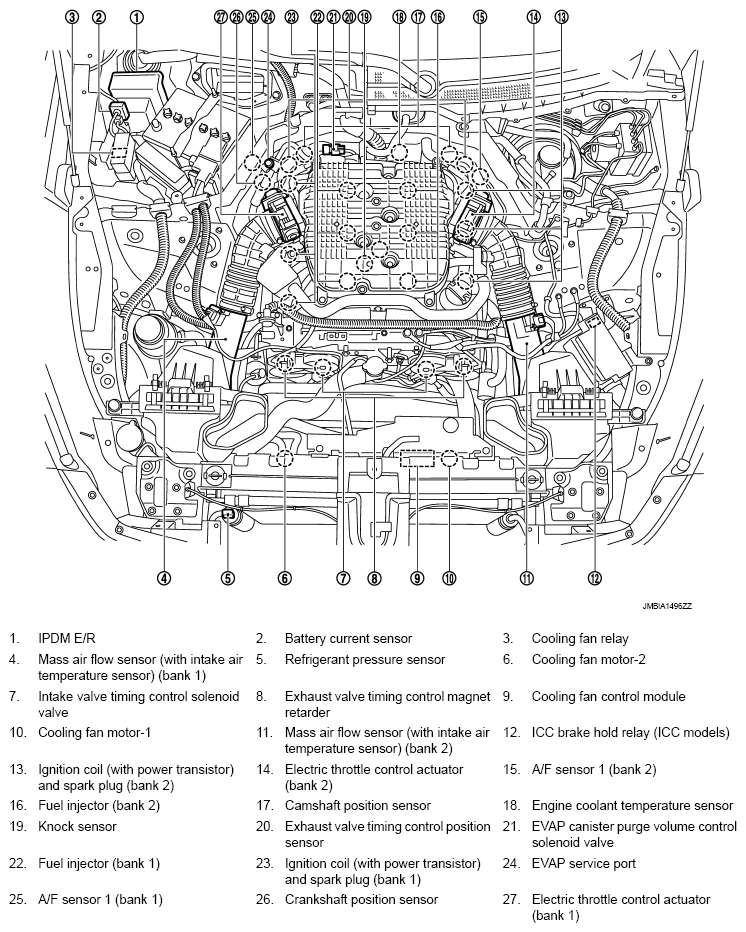

Fig 1: Exhaust Valve Timing Control Components Location (1 Of 20)

G08210176

Courtesy of NISSAN NORTH AMERICA, INC.

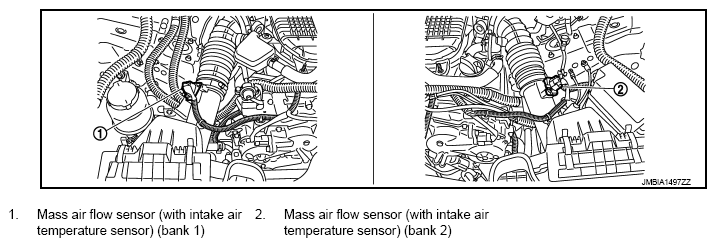

Fig 2: Exhaust Valve Timing Control Components Location (2 Of 20)

G08210177

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Exhaust Valve Timing Control Components Location (3 Of 20)

G08210178

Courtesy of NISSAN NORTH AMERICA, INC.

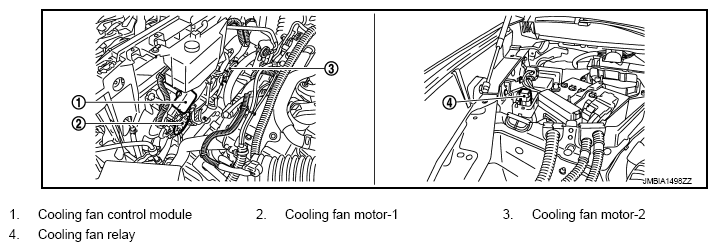

Fig 4: Exhaust Valve Timing Control Components Location (4 Of 20)

G08210179

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Exhaust Valve Timing Control Components Location (5 Of 20)

G05978207

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Exhaust Valve Timing Control Components Location (6 Of 20)

G08211102

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Exhaust Valve Timing Control Components Location (7 Of 20)

G08210181

Courtesy of NISSAN NORTH AMERICA, INC.

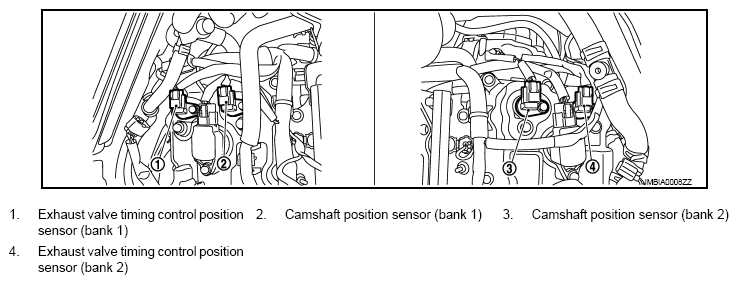

Fig 8: Exhaust Valve Timing Control Components Location (8 Of 20)

G08210182

Courtesy of NISSAN NORTH AMERICA, INC.

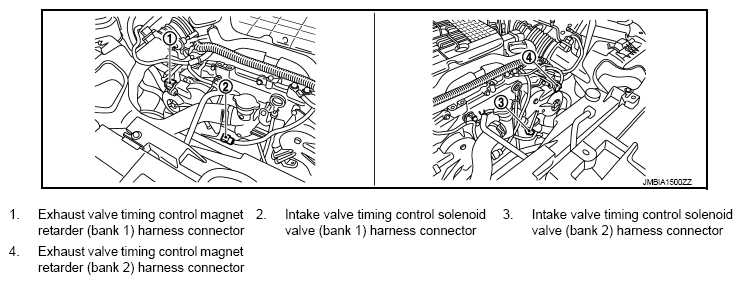

Fig 9: Exhaust Valve Timing Control Components Location (9 Of 20)

G08210183

Courtesy of NISSAN NORTH AMERICA, INC.

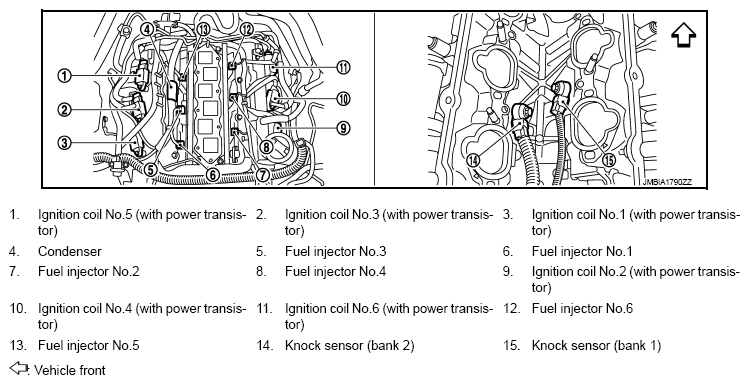

Fig 10: Exhaust Valve Timing Control Components Location (10 Of 20)

G08210184

Courtesy of NISSAN NORTH AMERICA, INC.

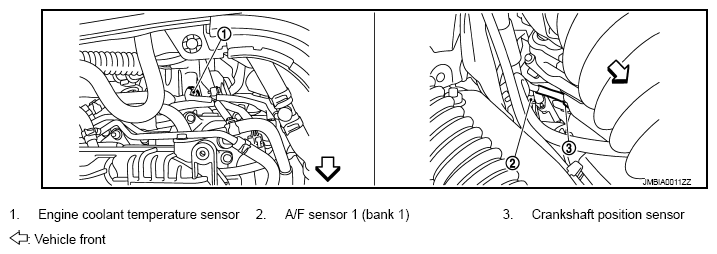

Fig 11: Exhaust Valve Timing Control Components Location (11 Of 20)

G08210185

Courtesy of NISSAN NORTH AMERICA, INC.

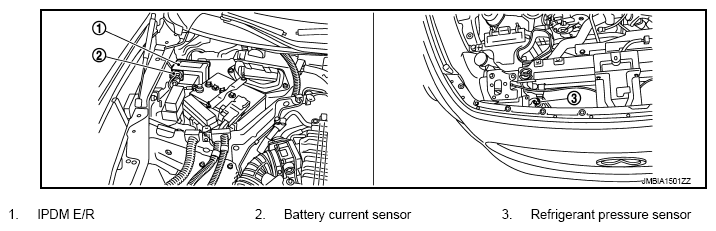

Fig 12: Exhaust Valve Timing Control Components Location (12 Of 20)

G08210186

Courtesy of NISSAN NORTH AMERICA, INC.

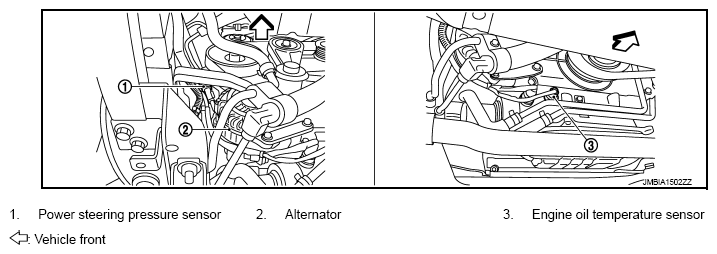

Fig 13: Exhaust Valve Timing Control Components Location (13 Of 20)

G08210187

Courtesy of NISSAN NORTH AMERICA, INC.

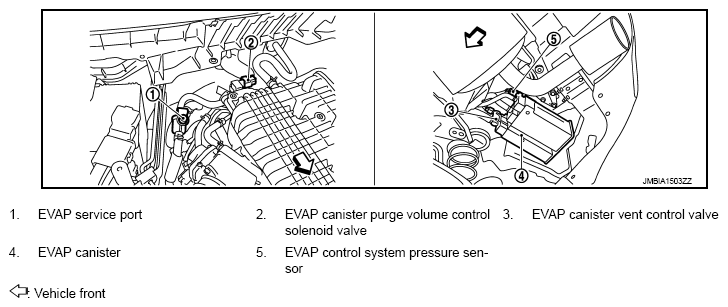

Fig 14: Exhaust Valve Timing Control Components Location (14 Of 20)

G08210188

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Exhaust Valve Timing Control Components Location (15 Of 20)

G08210189

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Exhaust Valve Timing Control Components Location (16 Of 20)

G08210190

Courtesy of NISSAN NORTH AMERICA, INC.

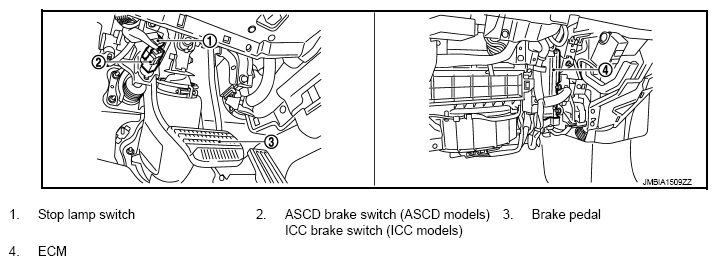

Fig 17: Exhaust Valve Timing Control Components Location (17 Of 20)

G08210191

Courtesy of NISSAN NORTH AMERICA, INC.

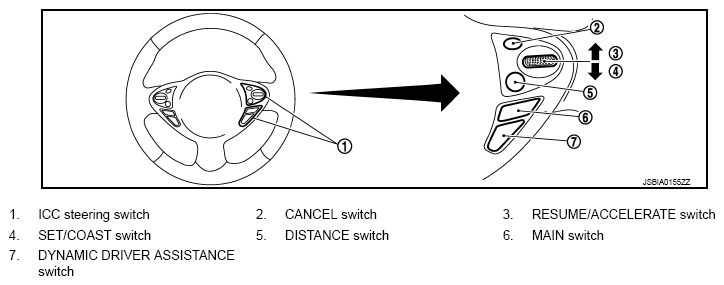

Fig 18: Exhaust Valve Timing Control Components Location (18 Of 20)

G08210192

Courtesy of NISSAN NORTH AMERICA, INC.

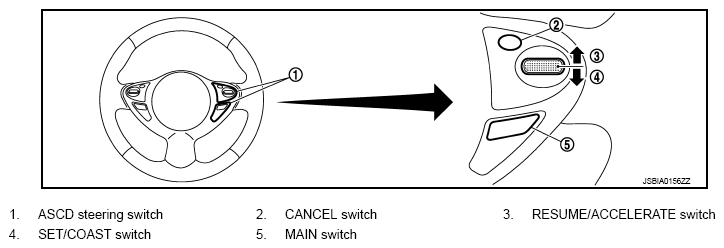

Fig 19: Exhaust Valve Timing Control Components Location (19 Of 20)

G08210193

Courtesy of NISSAN NORTH AMERICA, INC.

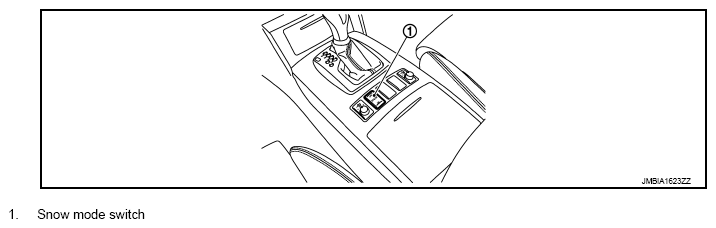

Fig 20: Exhaust Valve Timing Control Components Location (20 Of 20)

G08210194

Courtesy of NISSAN NORTH AMERICA, INC.
