Component Parts Location

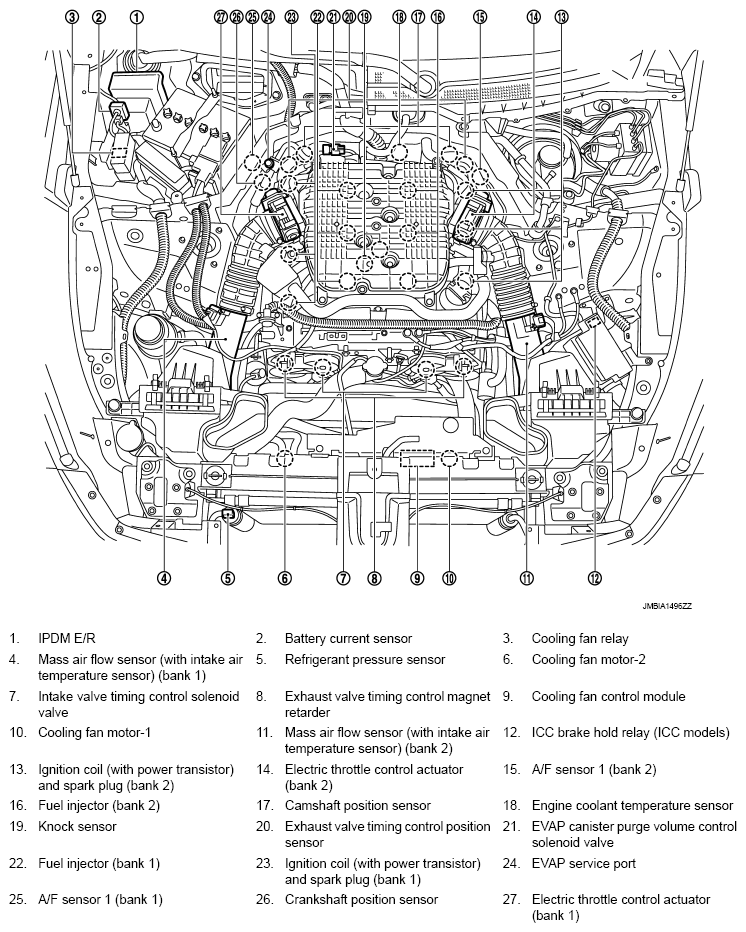

Fig 1: Intake Valve Timing Control Components Location (1 Of 20)

G08210197

Courtesy of NISSAN NORTH AMERICA, INC.

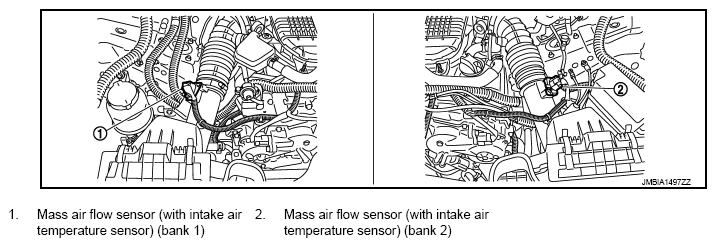

Fig 2: Intake Valve Timing Control Components Location (2 Of 20)

G08210198

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Intake Valve Timing Control Components Location (3 Of 20)

G08210199

Courtesy of NISSAN NORTH AMERICA, INC.

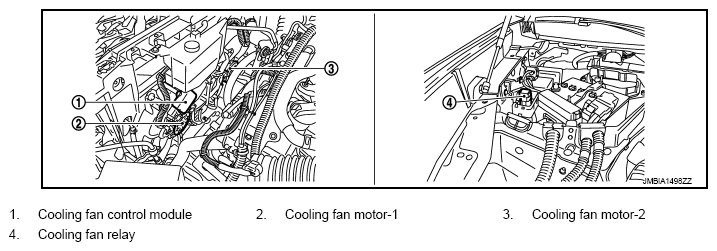

Fig 4: Intake Valve Timing Control Components Location (4 Of 20)

G08210200

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Intake Valve Timing Control Components Location (5 Of 20)

G06306364

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Intake Valve Timing Control Components Location (6 Of 20)

G08210202

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Intake Valve Timing Control Components Location (7 Of 20)

G08210203

Courtesy of NISSAN NORTH AMERICA, INC.

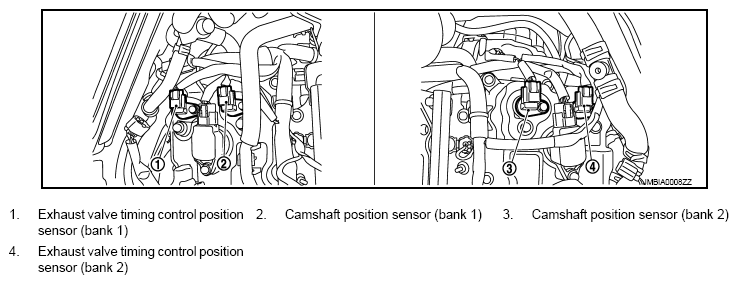

Fig 8: Intake Valve Timing Control Components Location (8 Of 20)

G08210204

Courtesy of NISSAN NORTH AMERICA, INC.

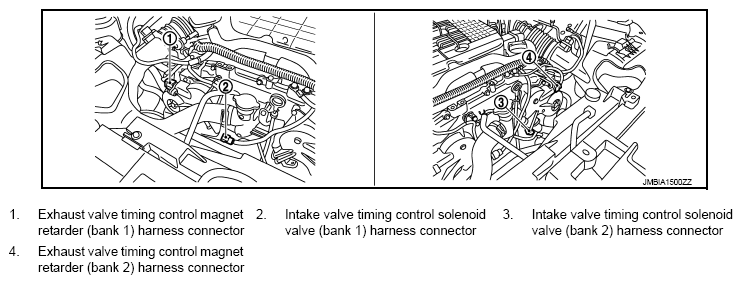

Fig 9: Intake Valve Timing Control Components Location (9 Of 20)

G08210205

Courtesy of NISSAN NORTH AMERICA, INC.

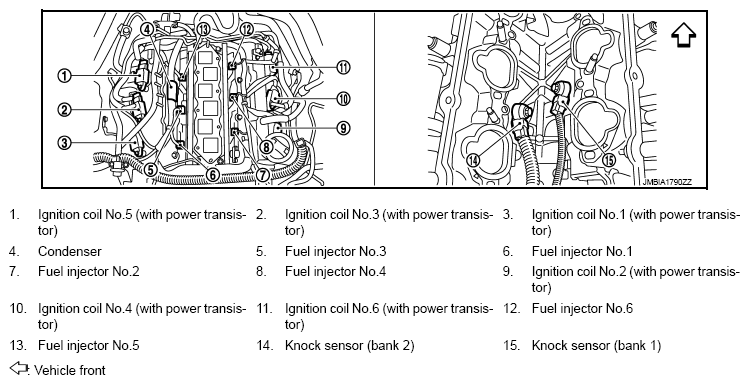

Fig 10: Intake Valve Timing Control Components Location (10 Of 20)

G08210206

Courtesy of NISSAN NORTH AMERICA, INC.

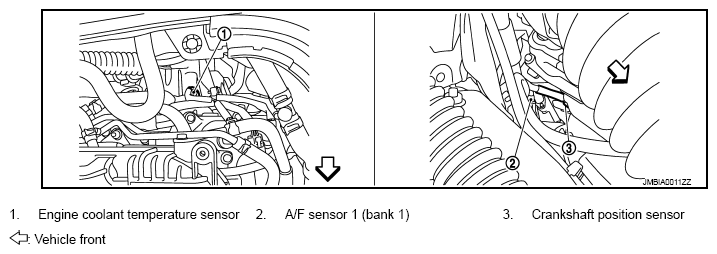

Fig 11: Intake Valve Timing Control Components Location (11 Of 20)

G08210207

Courtesy of NISSAN NORTH AMERICA, INC.

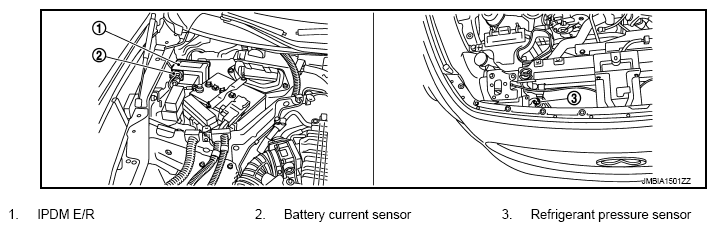

Fig 12: Intake Valve Timing Control Components Location (12 Of 20)

G08210208

Courtesy of NISSAN NORTH AMERICA, INC.

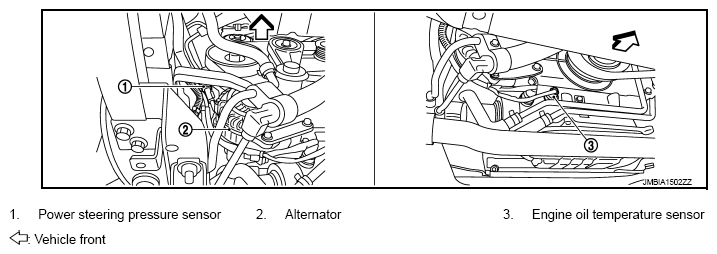

Fig 13: Intake Valve Timing Control Components Location (13 Of 20)

G08210209

Courtesy of NISSAN NORTH AMERICA, INC.

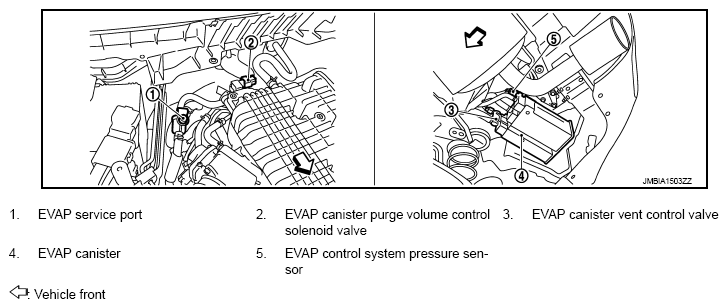

Fig 14: Intake Valve Timing Control Components Location (14 Of 20)

G08210210

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Intake Valve Timing Control Components Location (15 Of 20)

G08210211

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Intake Valve Timing Control Components Location (16 Of 20)

G08210212

Courtesy of NISSAN NORTH AMERICA, INC.

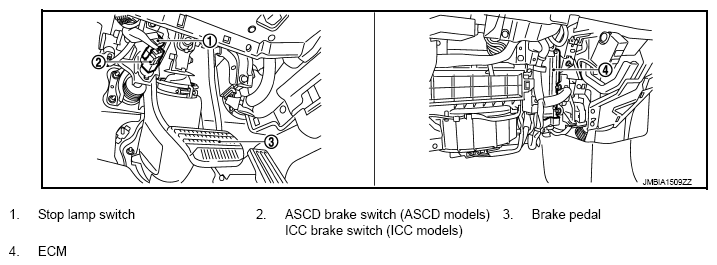

Fig 17: Intake Valve Timing Control Components Location (17 Of 20)

G08210213

Courtesy of NISSAN NORTH AMERICA, INC.

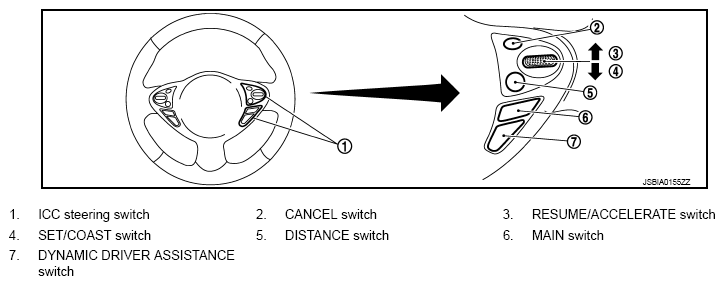

Fig 18: Intake Valve Timing Control Components Location (18 Of 20)

G08210214

Courtesy of NISSAN NORTH AMERICA, INC.

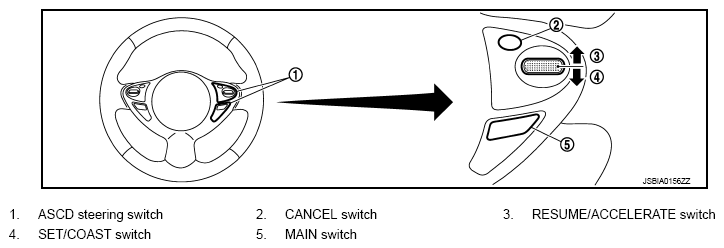

Fig 19: Intake Valve Timing Control Components Location (19 Of 20)

G08210215

Courtesy of NISSAN NORTH AMERICA, INC.

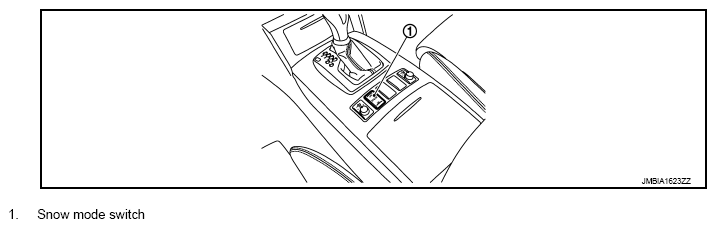

Fig 20: Intake Valve Timing Control Components Location (20 Of 20)

G08210216

Courtesy of NISSAN NORTH AMERICA, INC.
