Component Parts Location

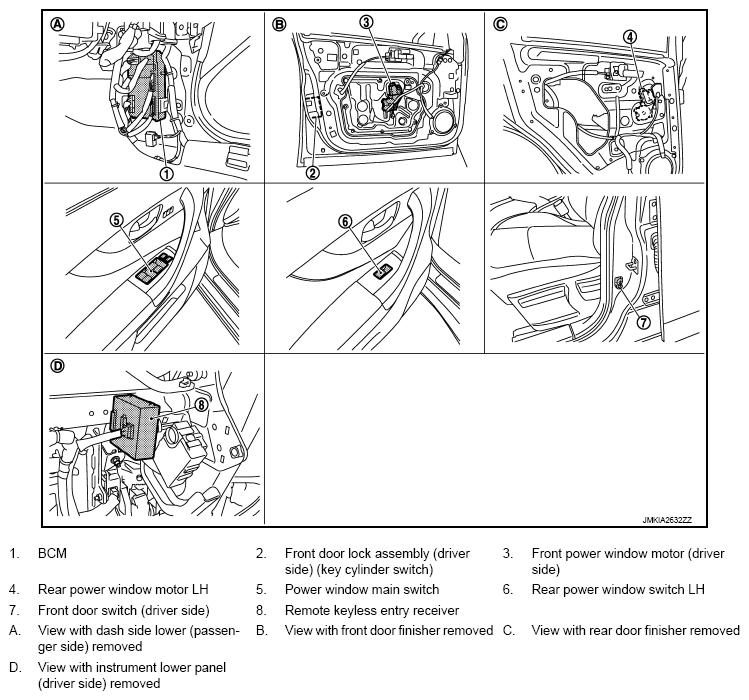

Fig 1: Power Window System Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
